Description
Pro-Kart 85 GRP Box Trailer with Kart Racking System & Extended Rear Loading Ramp – Anthracite Grey

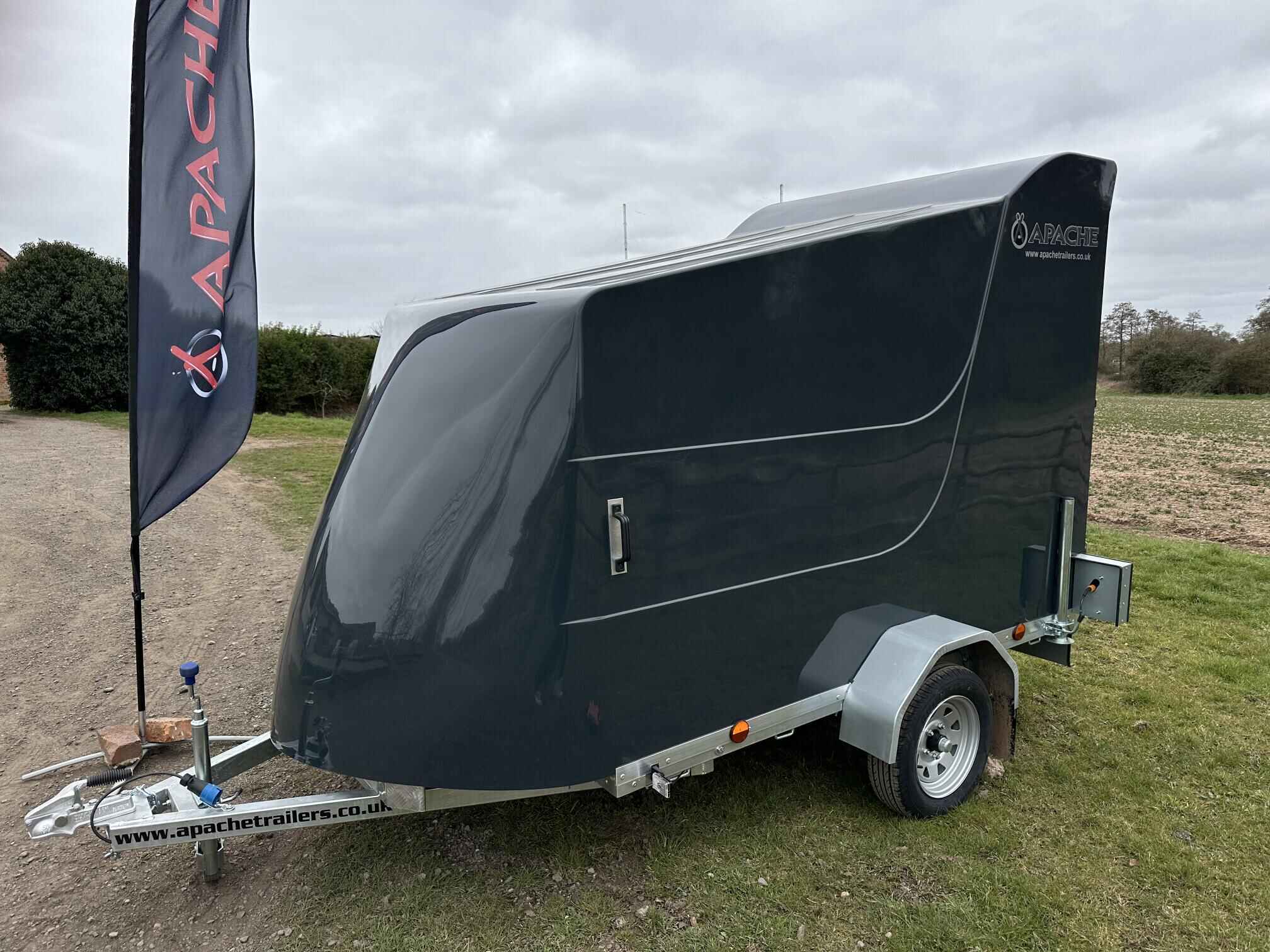

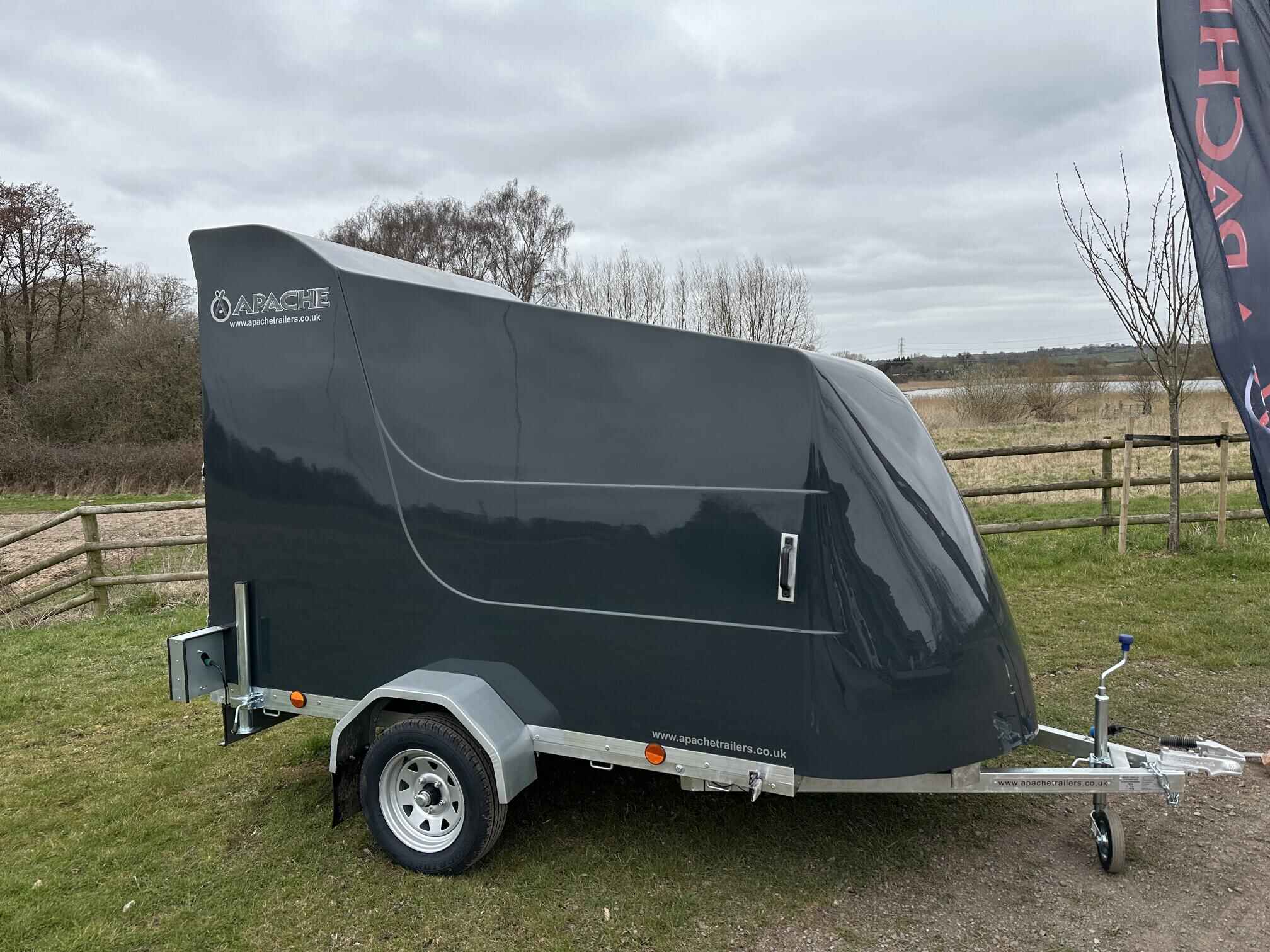

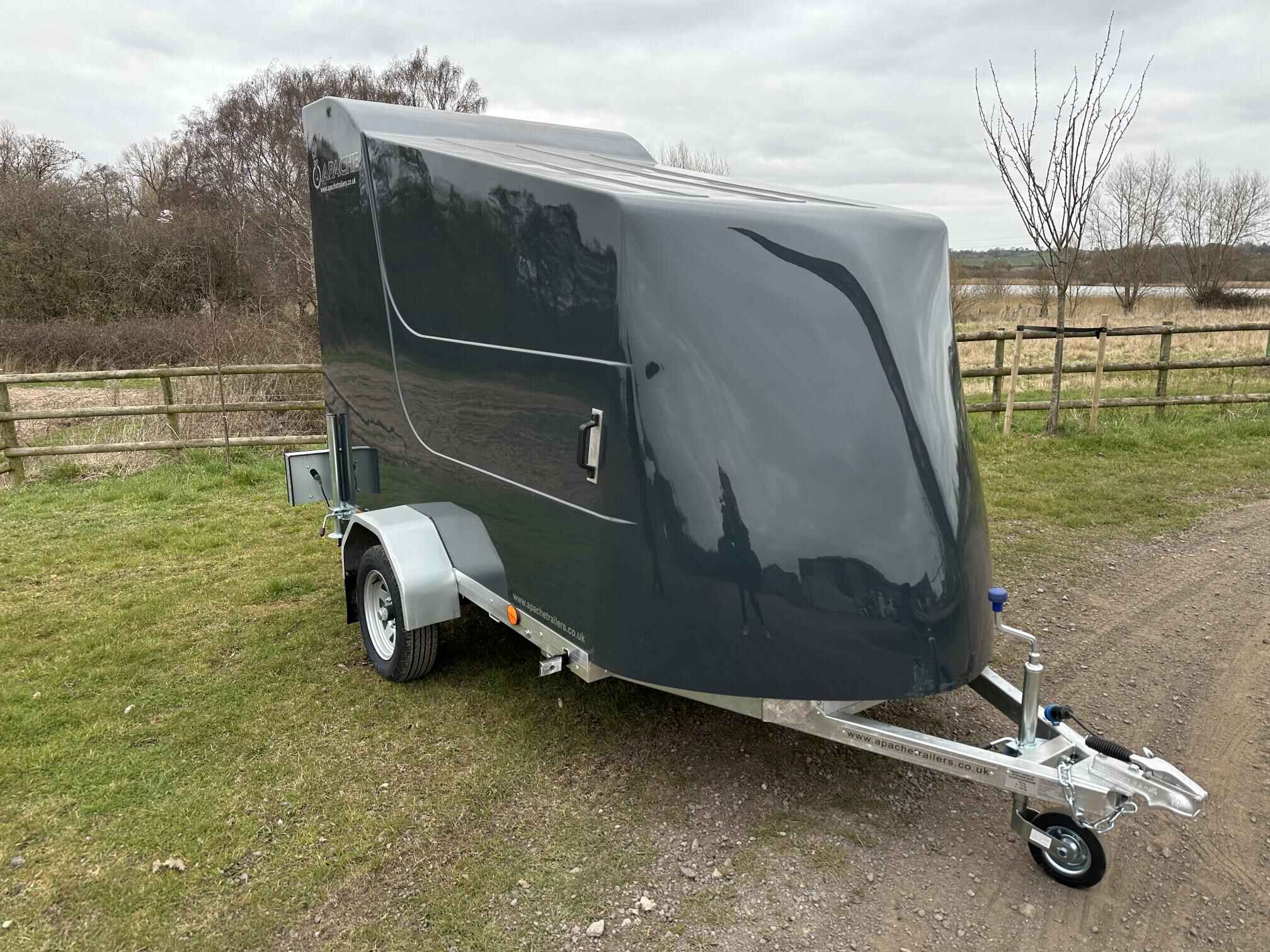

Designed for track days, race meetings, and motorsport transport, the Pro-Kart 85 GRP is a purpose-built enclosed trailer with a moulded fibreglass body and extended loading ramp. It comes fitted as standard with a kart racking system, suitable for 2 karts up to 1350mm wide, providing secure transport for up to two go-karts plus additional equipment and spares. Karts shown in images are not included.

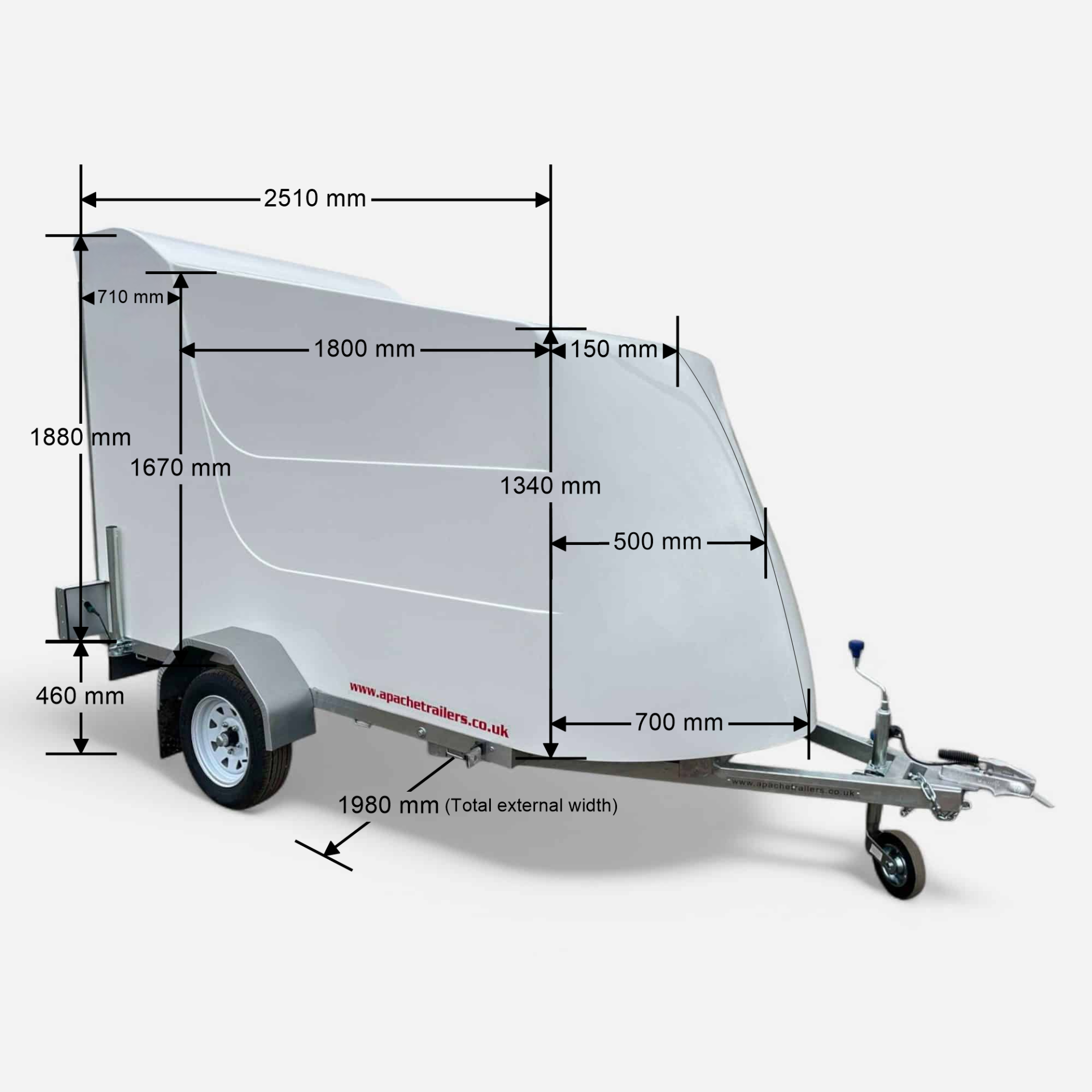

Key Specifications & Dimensions:
- Bed Size (L x W): 8ft x 5ft (2400mm x 1550mm)
- Internal Height (Rear): 6ft 2in (1880mm)
- Internal Height (Middle): 5ft (1500mm)
- Internal Height (Front): 4ft 4in (1320mm)
- External Dimensions (L x W x H): 12ft 6in x 6ft 6in x 7ft 4in (3800mm x 1980mm x 2250mm)
- Type Approval: Full GB & EU Compliant – Certificate of Conformity supplied
- GVW: 750kg (unbraked)
- Axle: Single
- Body: Moulded fibreglass (GRP)
Build & Construction:
- Internal Floor Area: 8ft x 5ft plus 2ft front nose cone storage (2440mm x 1520mm + 600mm)

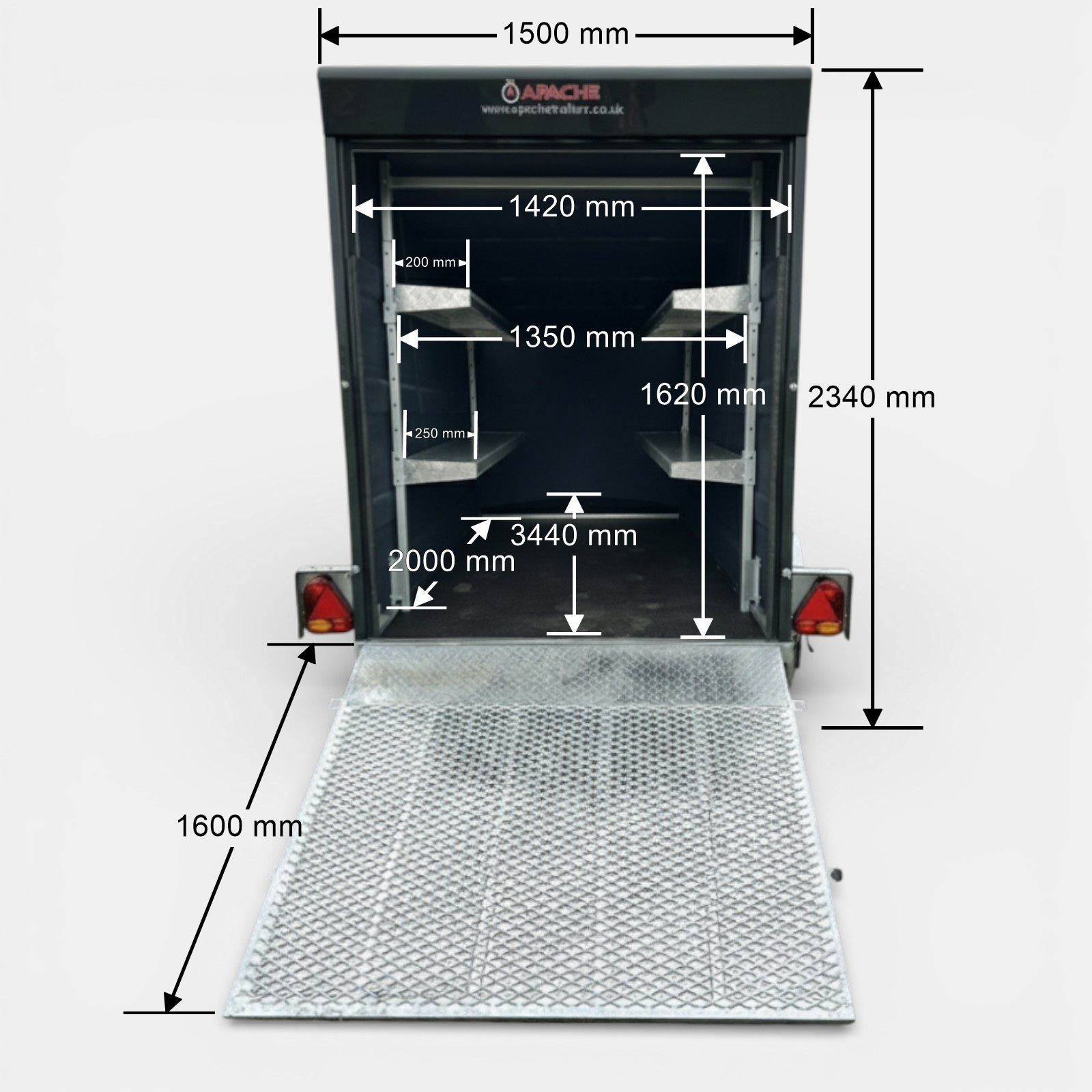

- Rear Door Opening (W x H): 4ft 8in x 5ft 4in (1420mm x 1620mm)
- Chassis: Heavy-duty galvanised steel
- Hitch Type: Bradley cast hitch
- Suspension: Heavy-duty leaf spring
- Front Opening: None

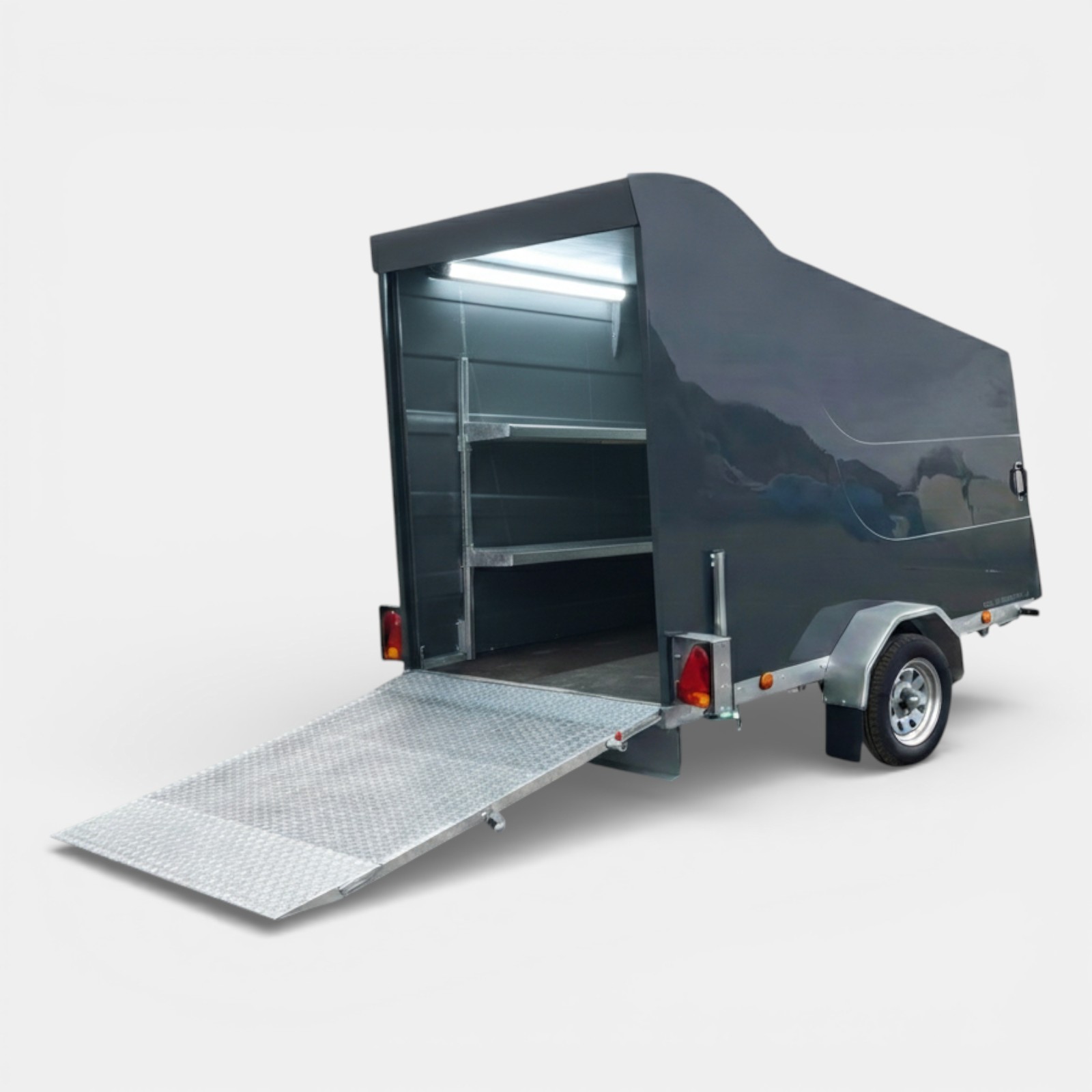

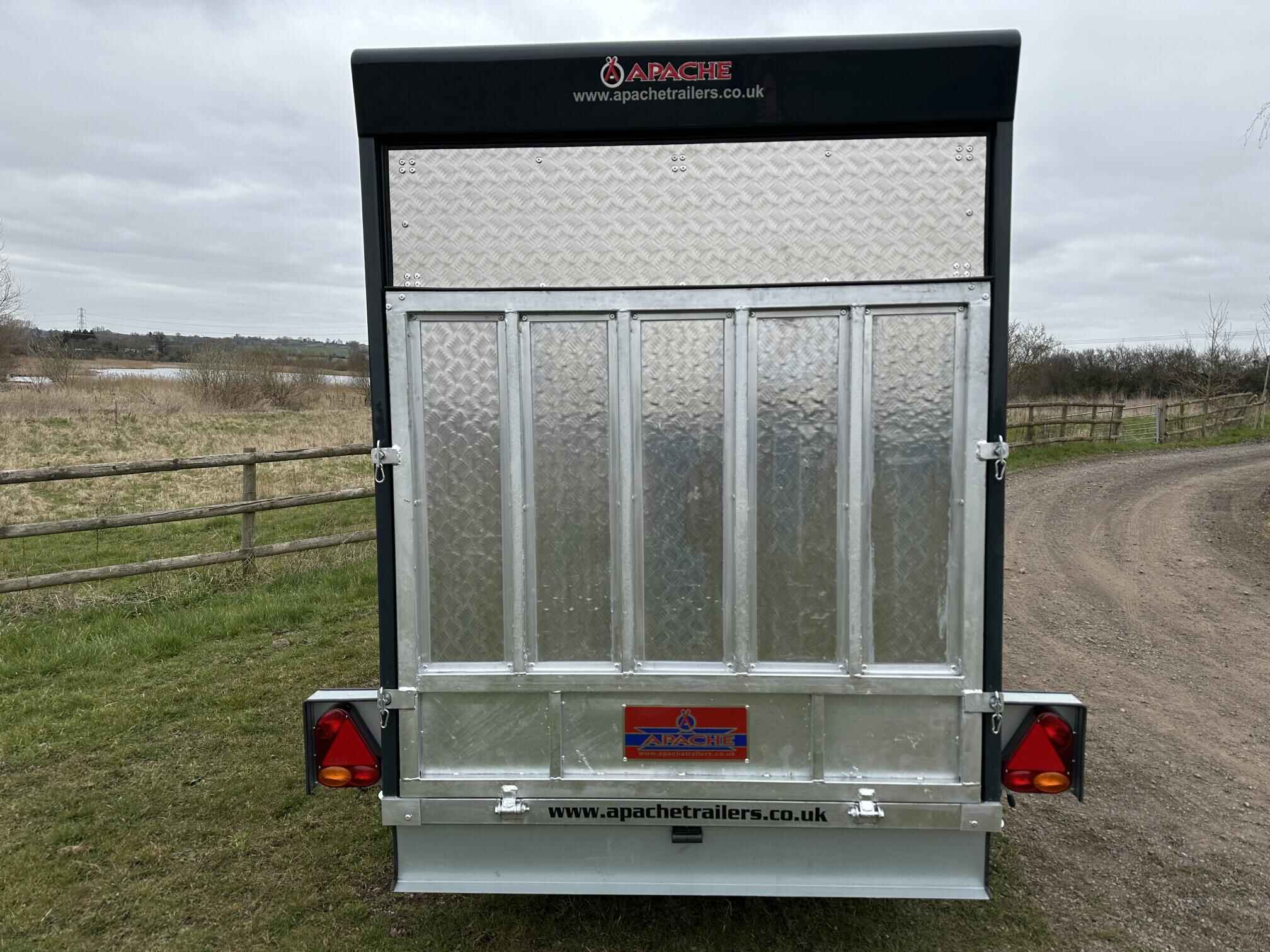

- Rear Opening: Extended rear loading ramp
- Floor: Galvanised steel base with phenolic anti-slip board
- Colour: Anthracite grey
- Wheels: 2 × 13″ steel wheels
Lighting & Electricals:
- Lights: Certified lighting fitted as standard
- Electricals: 7-pin heavy-duty socket
Included as Standard:

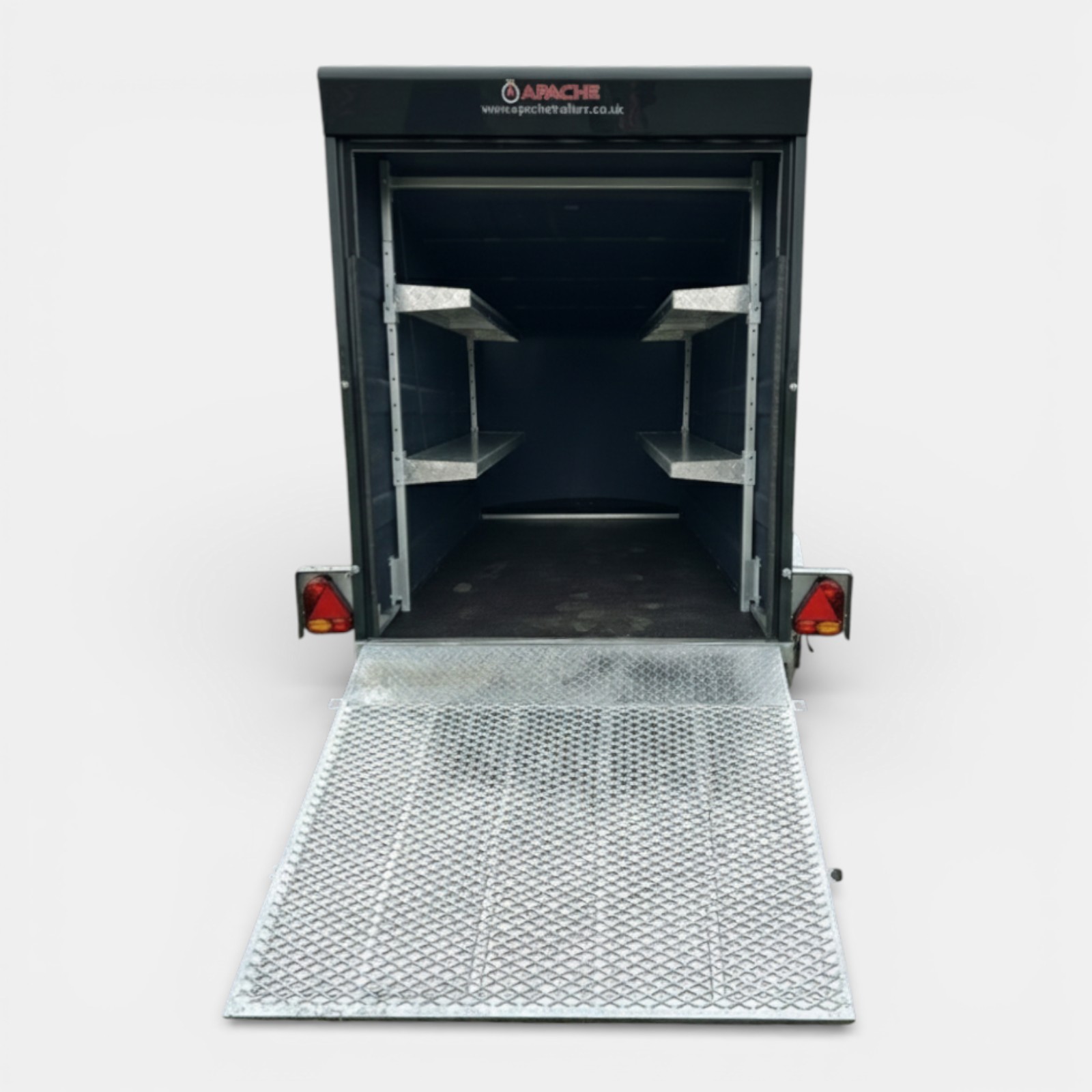

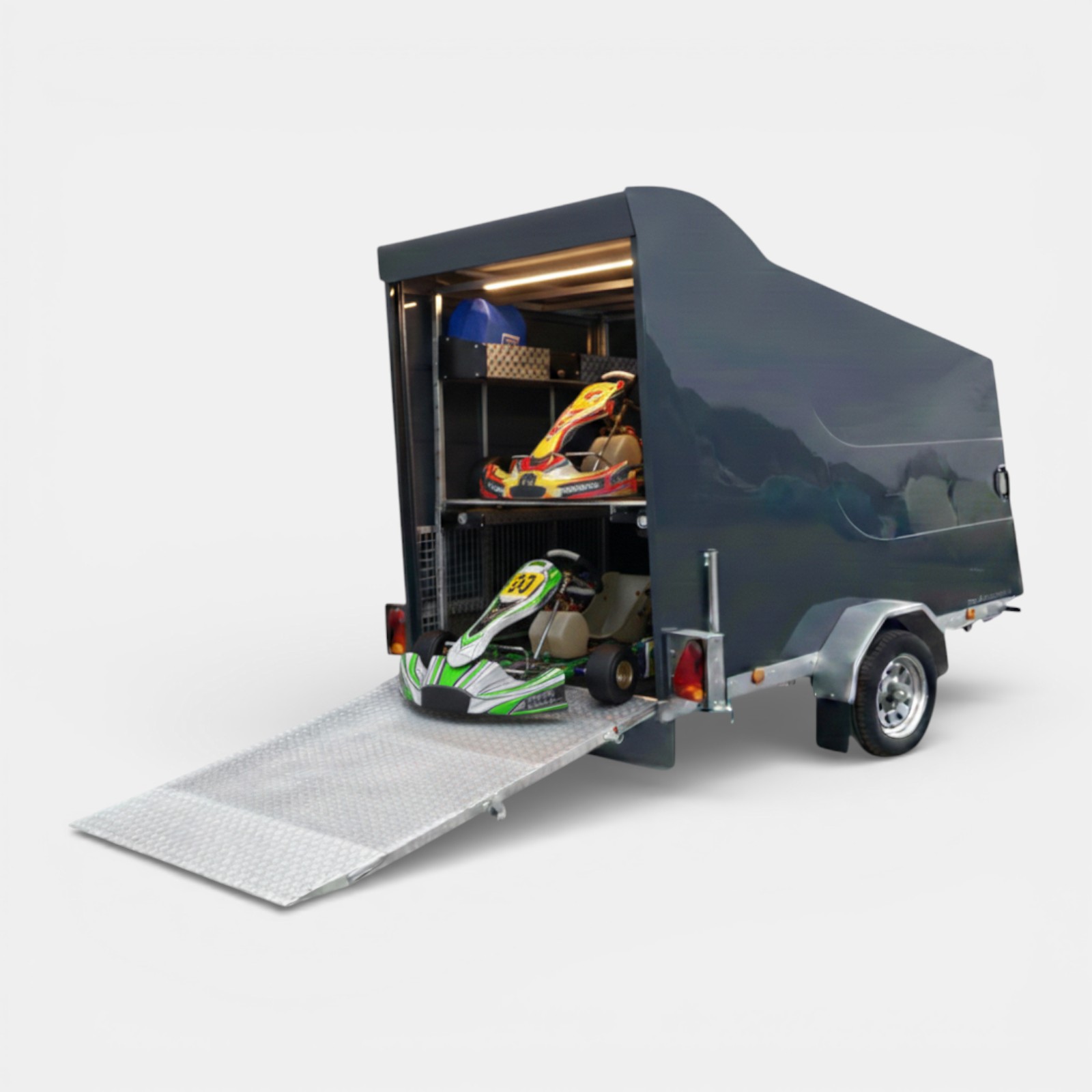

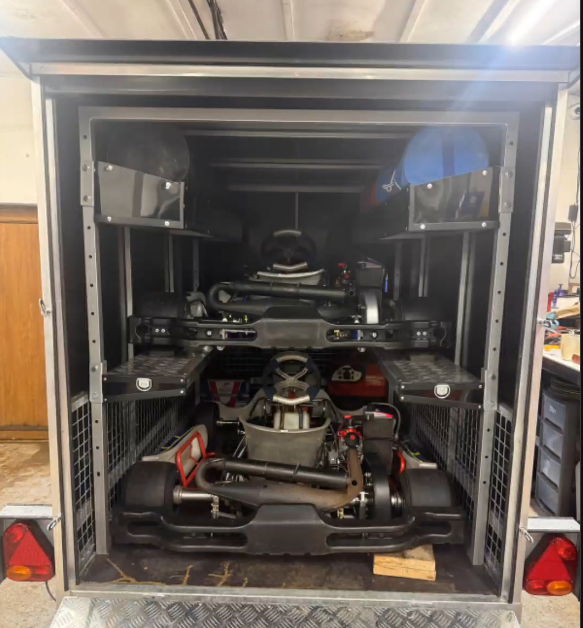

- Capacity for 2 karts (one on the floor, one on the first shelf)
- Maximum kart width: 1350mm
- Upper shelf for tools, parts, and spare tyres
- Additional storage space within the front bulkhead and nose cone area
- Jockey Wheel: Included as standard
- Prop Stands: Included as standard
Optional Extras:
- Spare wheel
- Tie downs
- Hitch lock
- Wheel clamp
- Locking wheel nuts
- Number plate and internal light
Dimensions:
Specification:
