Description
This trailer and TentBox were used for photographic purposes and is priced to clear.

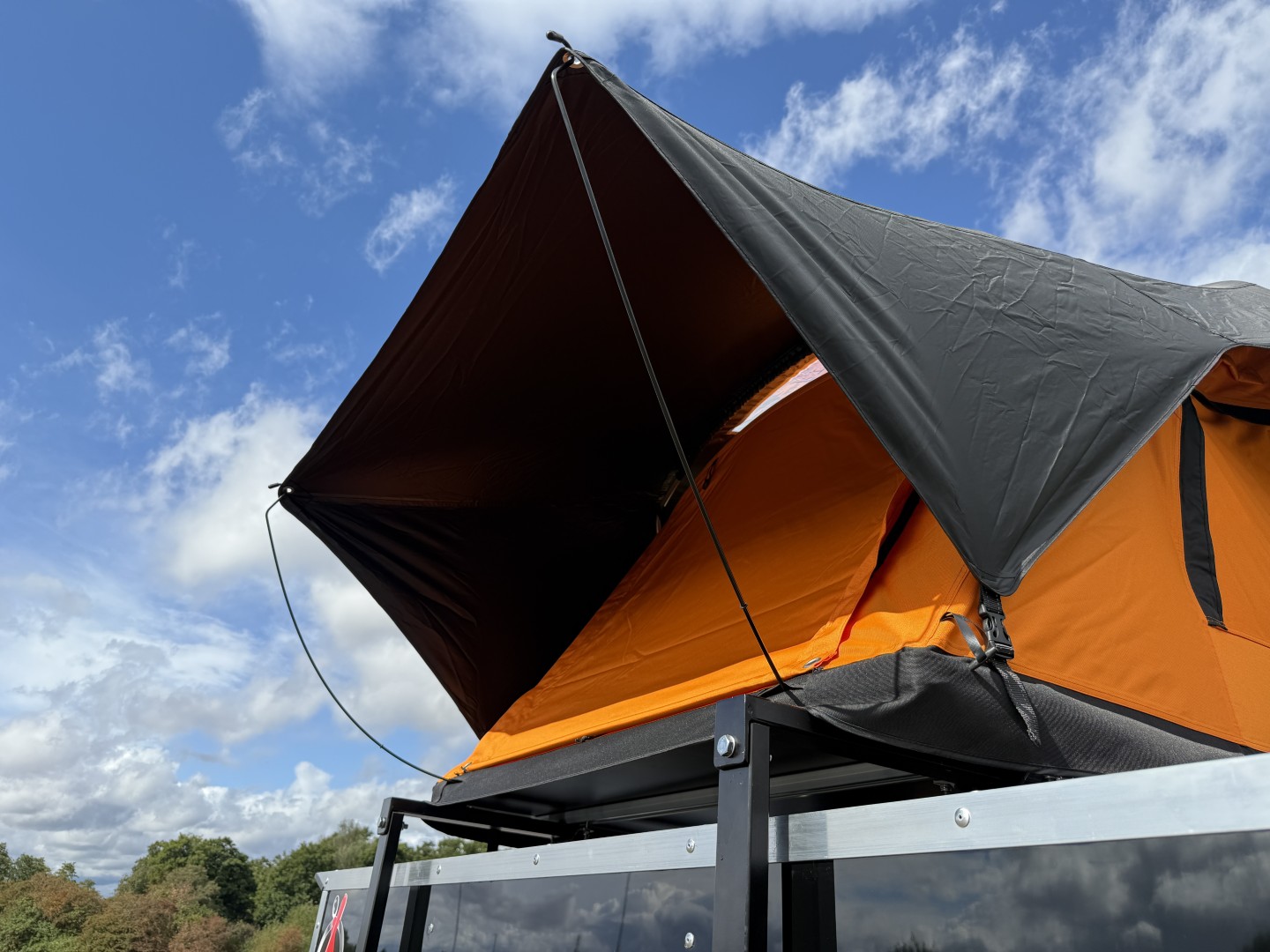

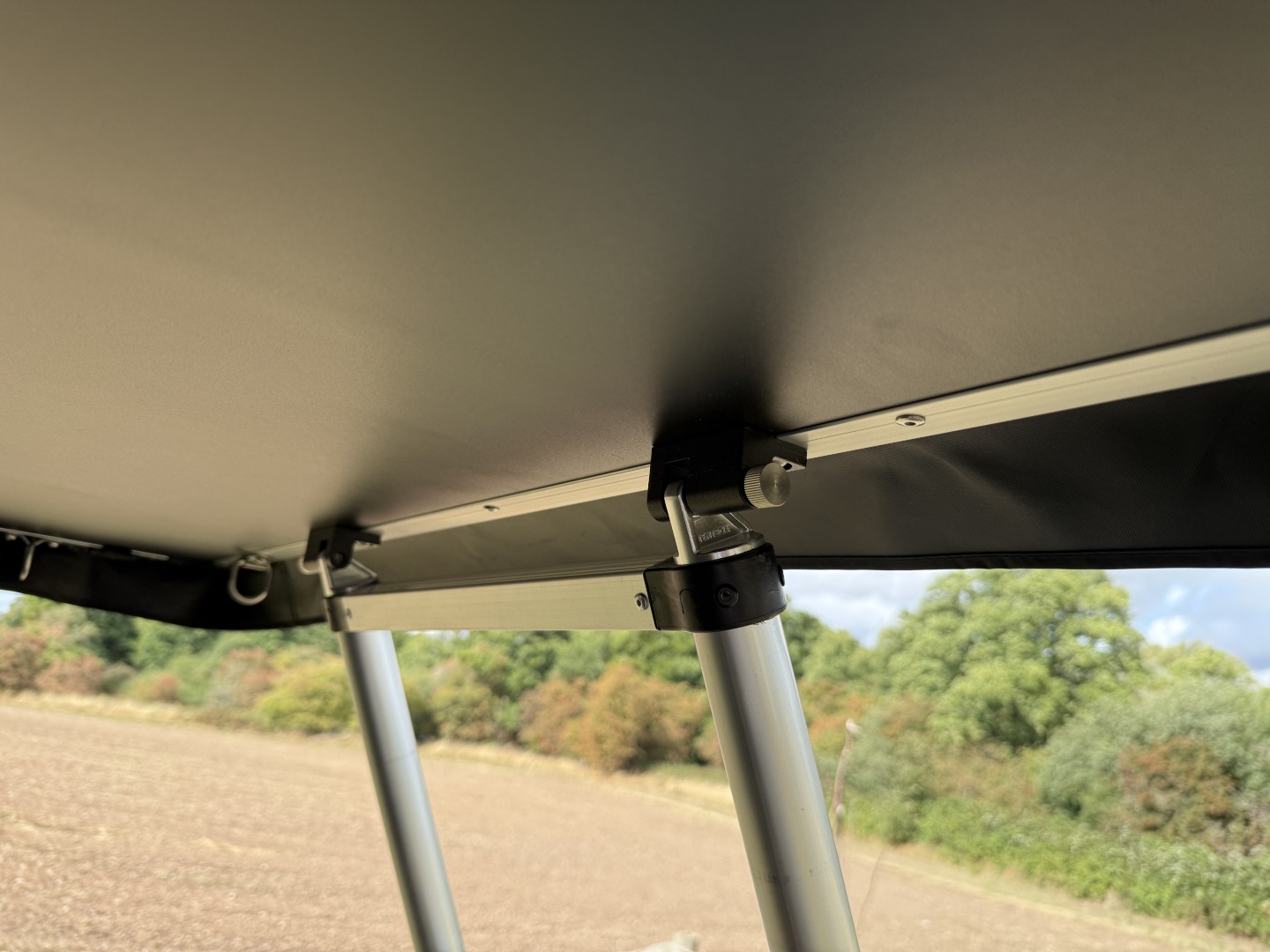

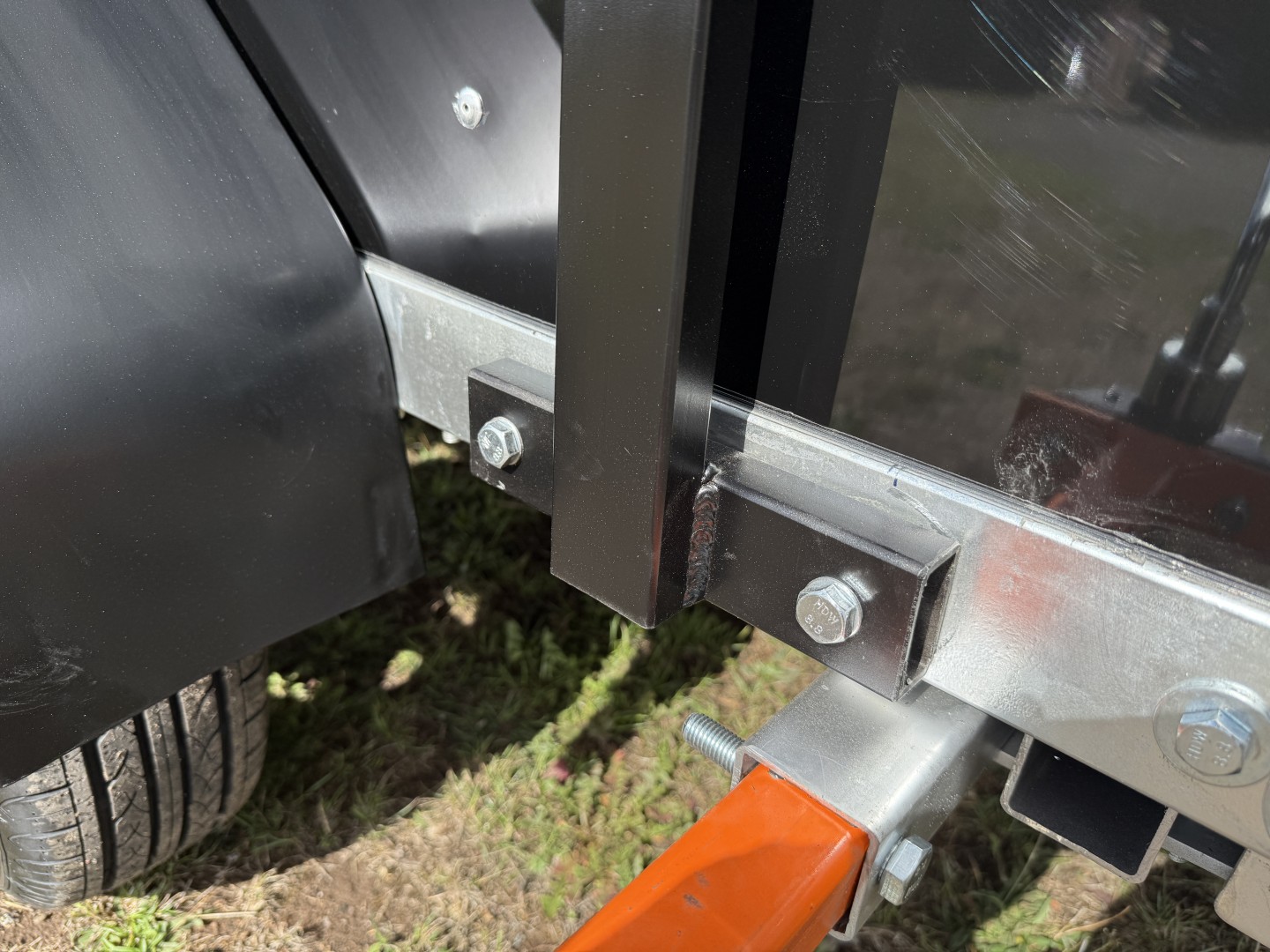

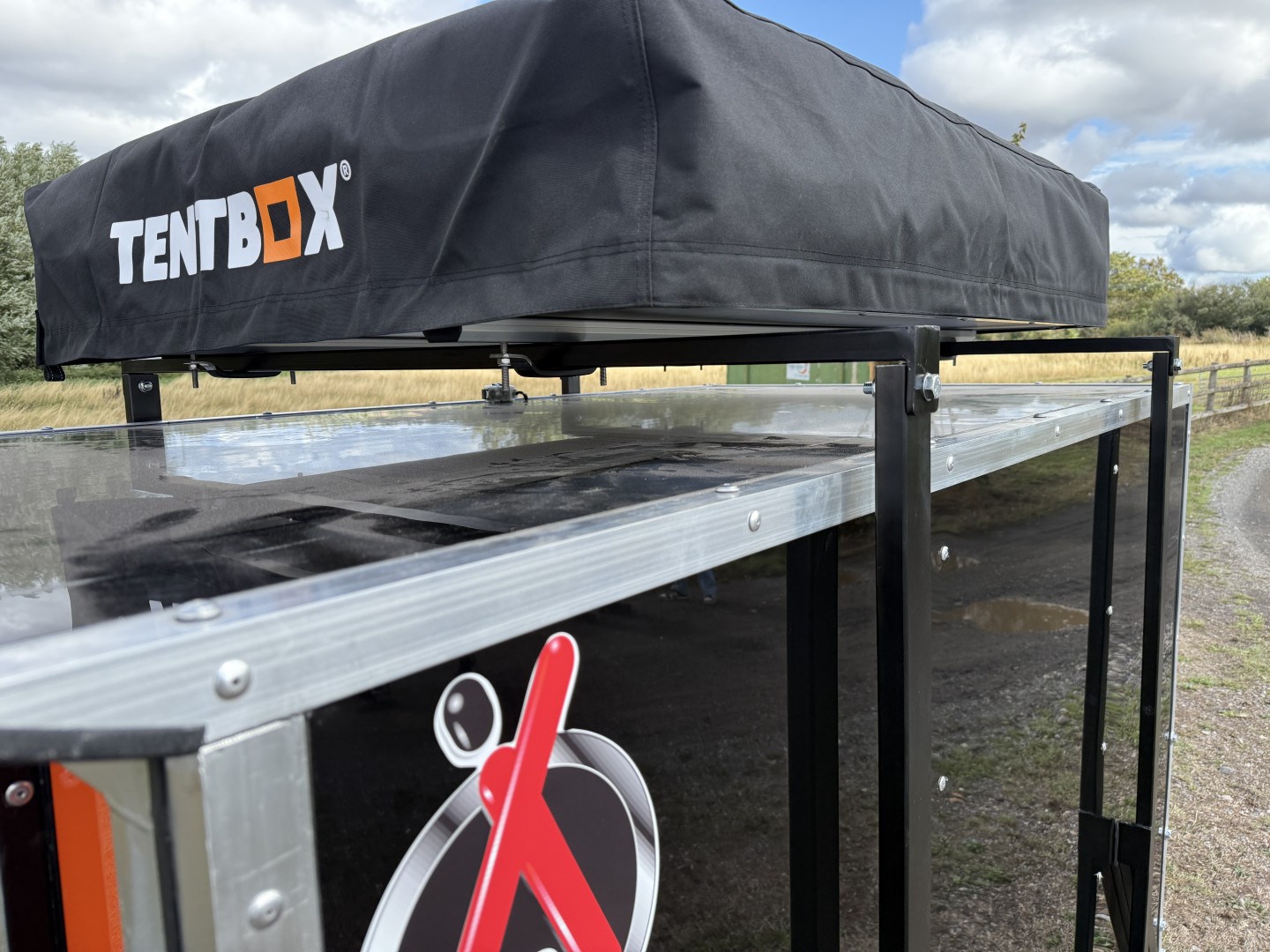

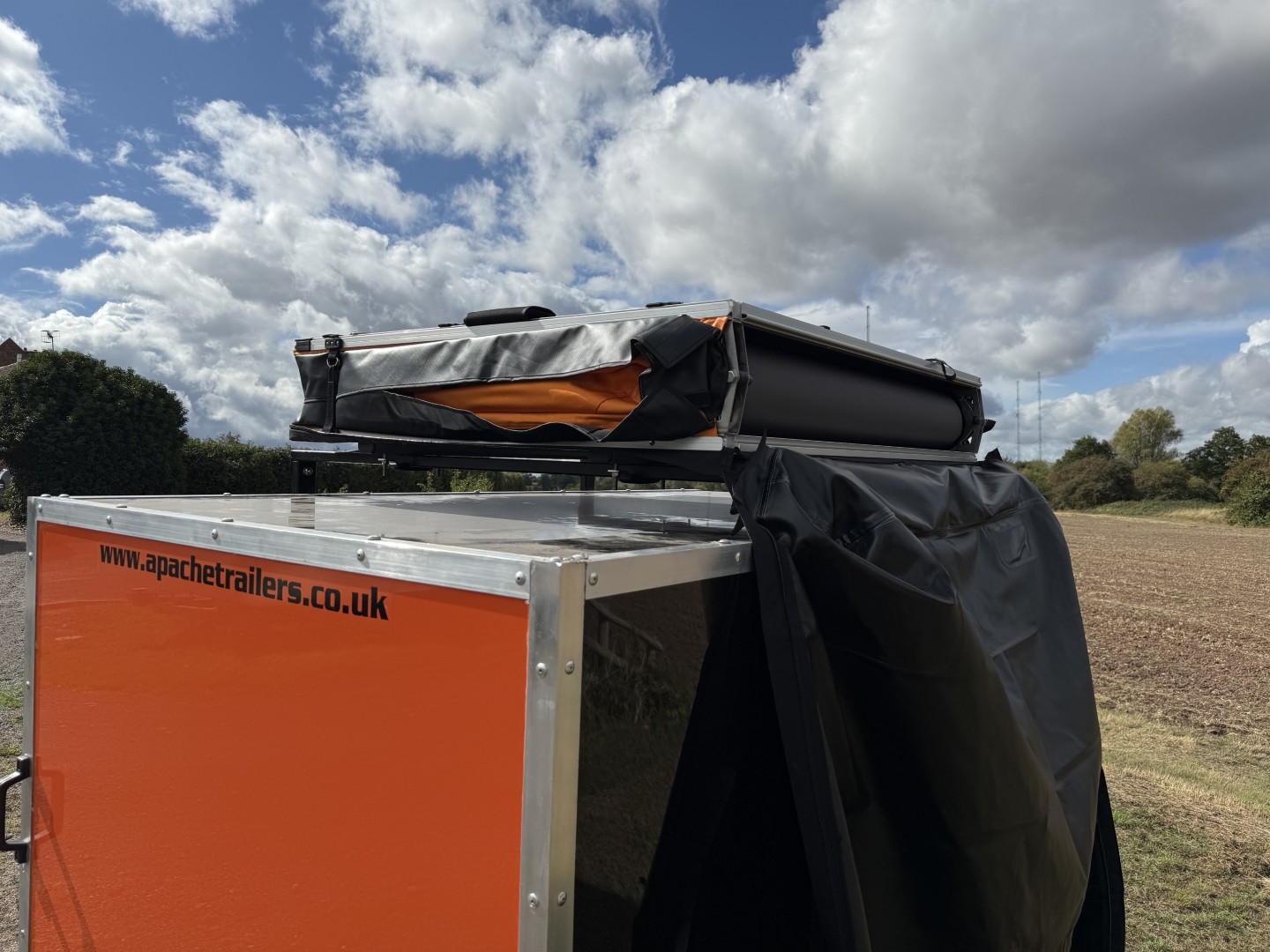

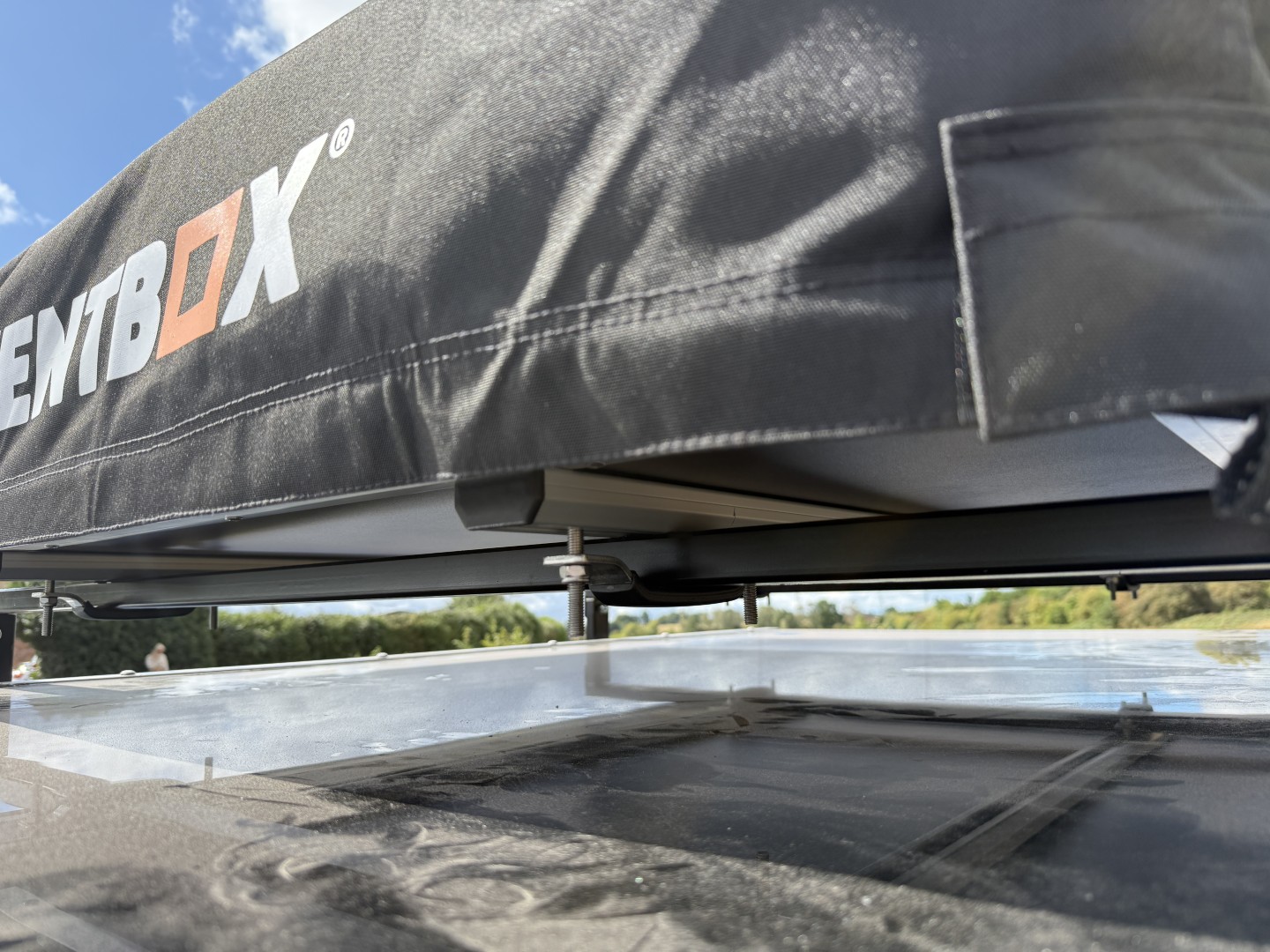

Adjustable roof-tent frame: the external frame adjusts length-ways, so it fits a wide range of roof tents — not just one brand.

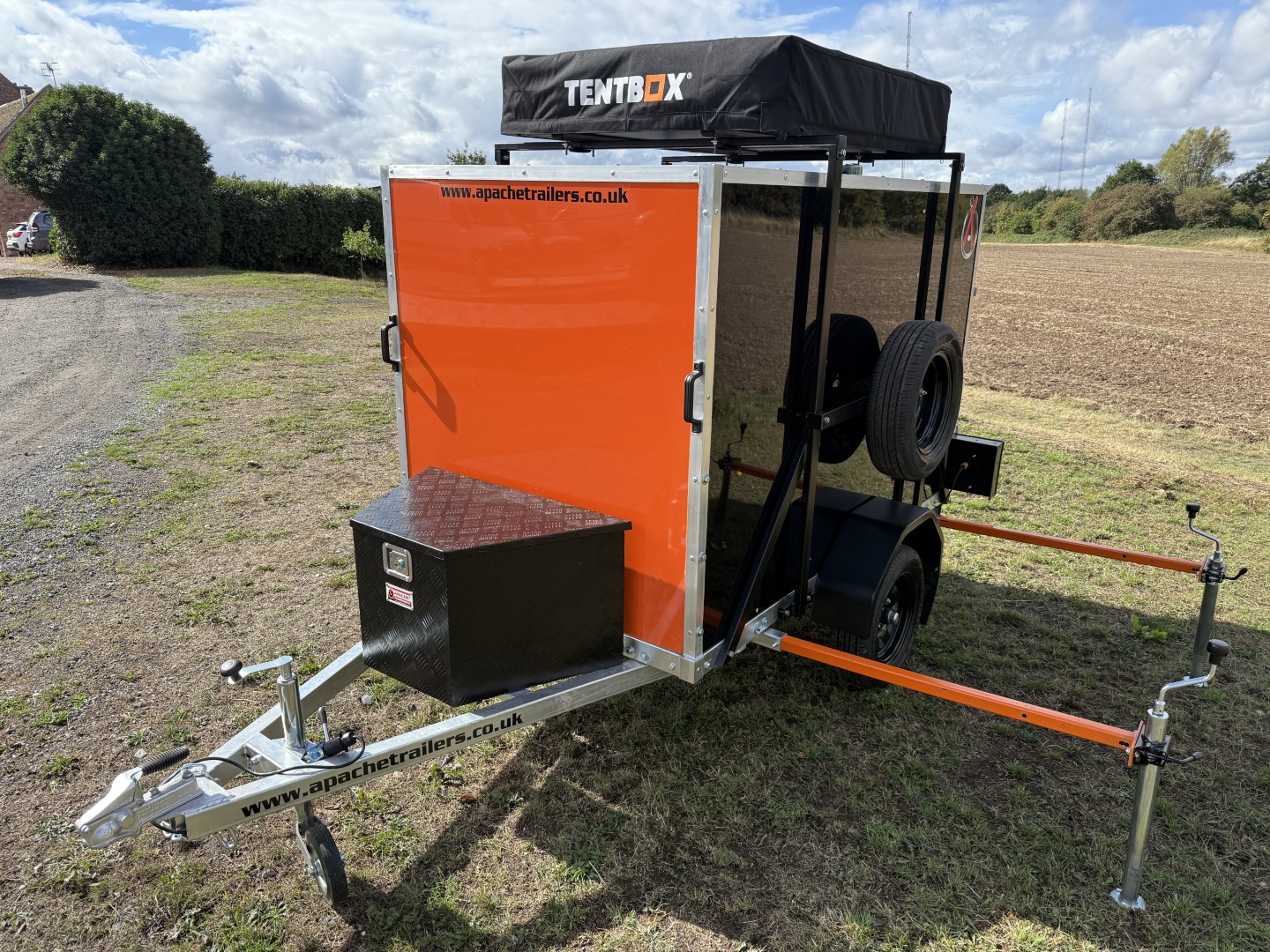

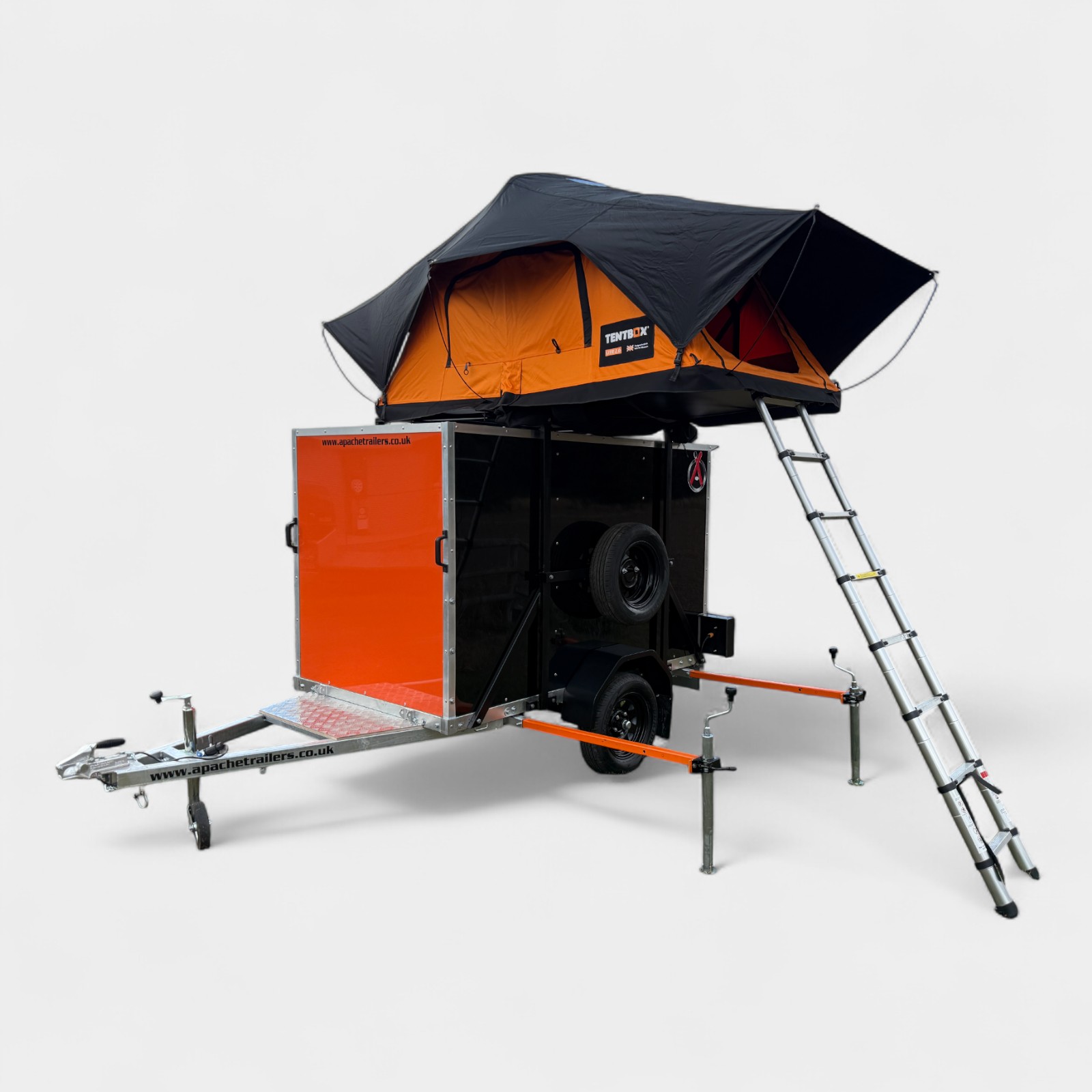

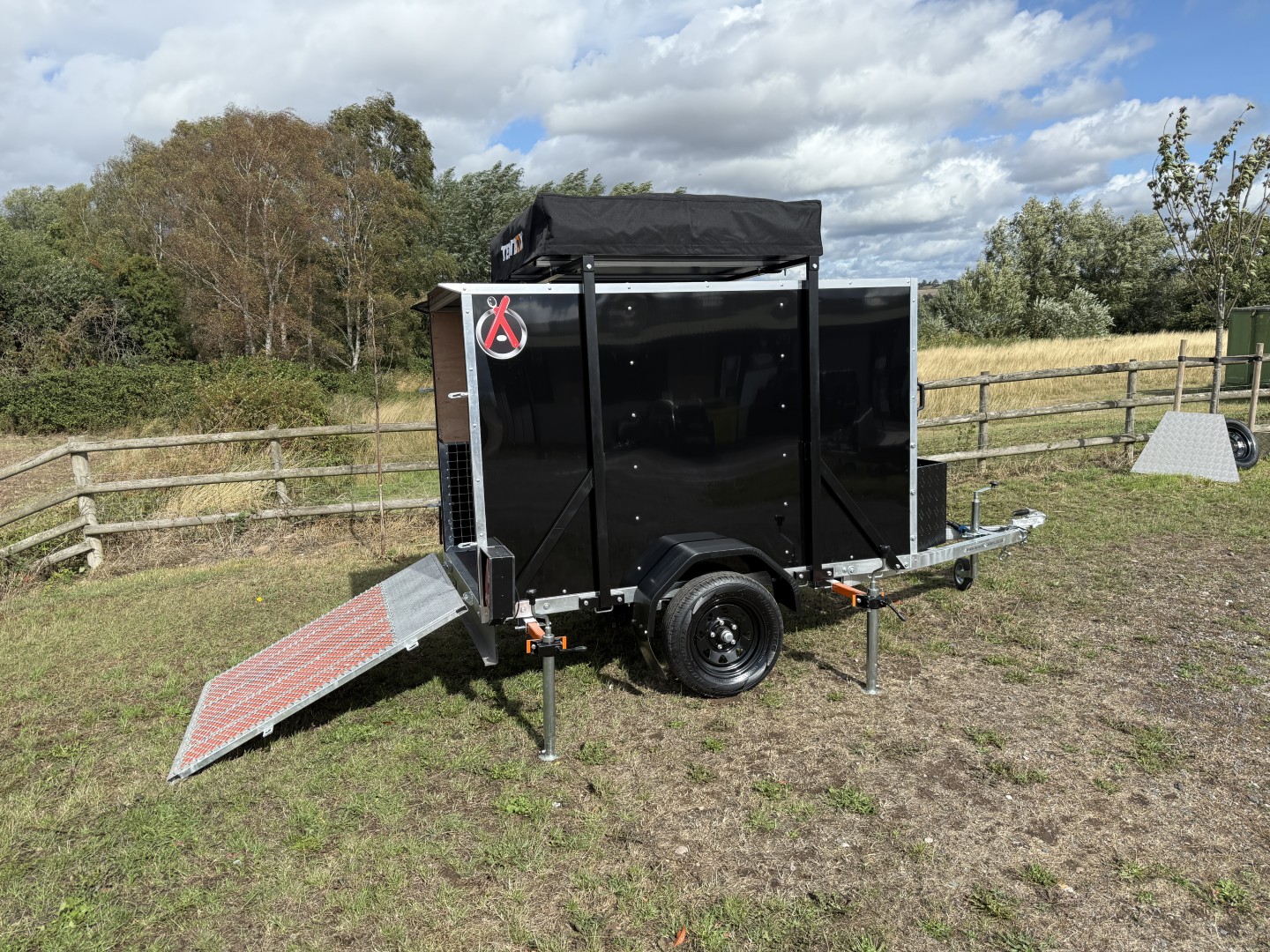

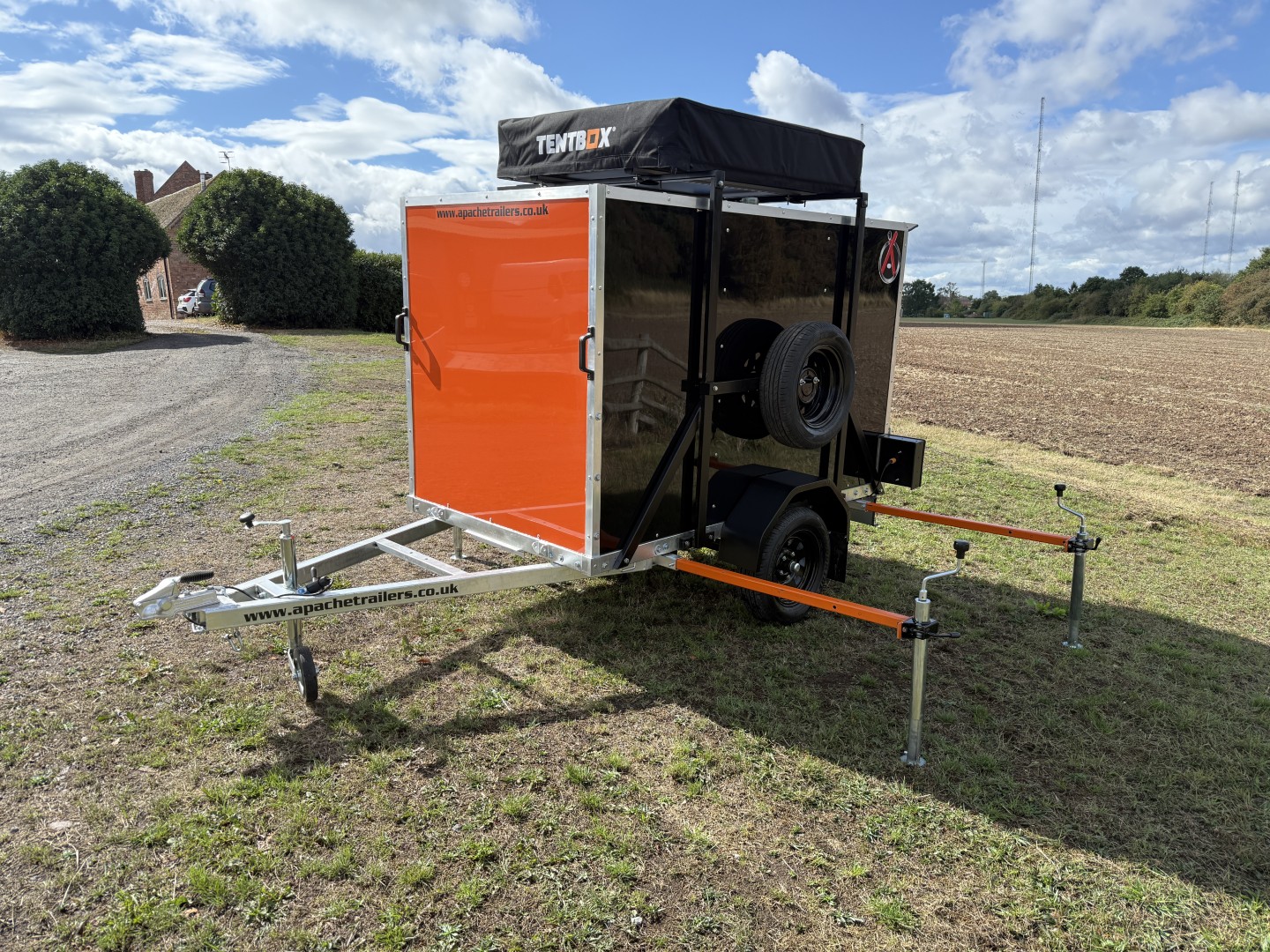

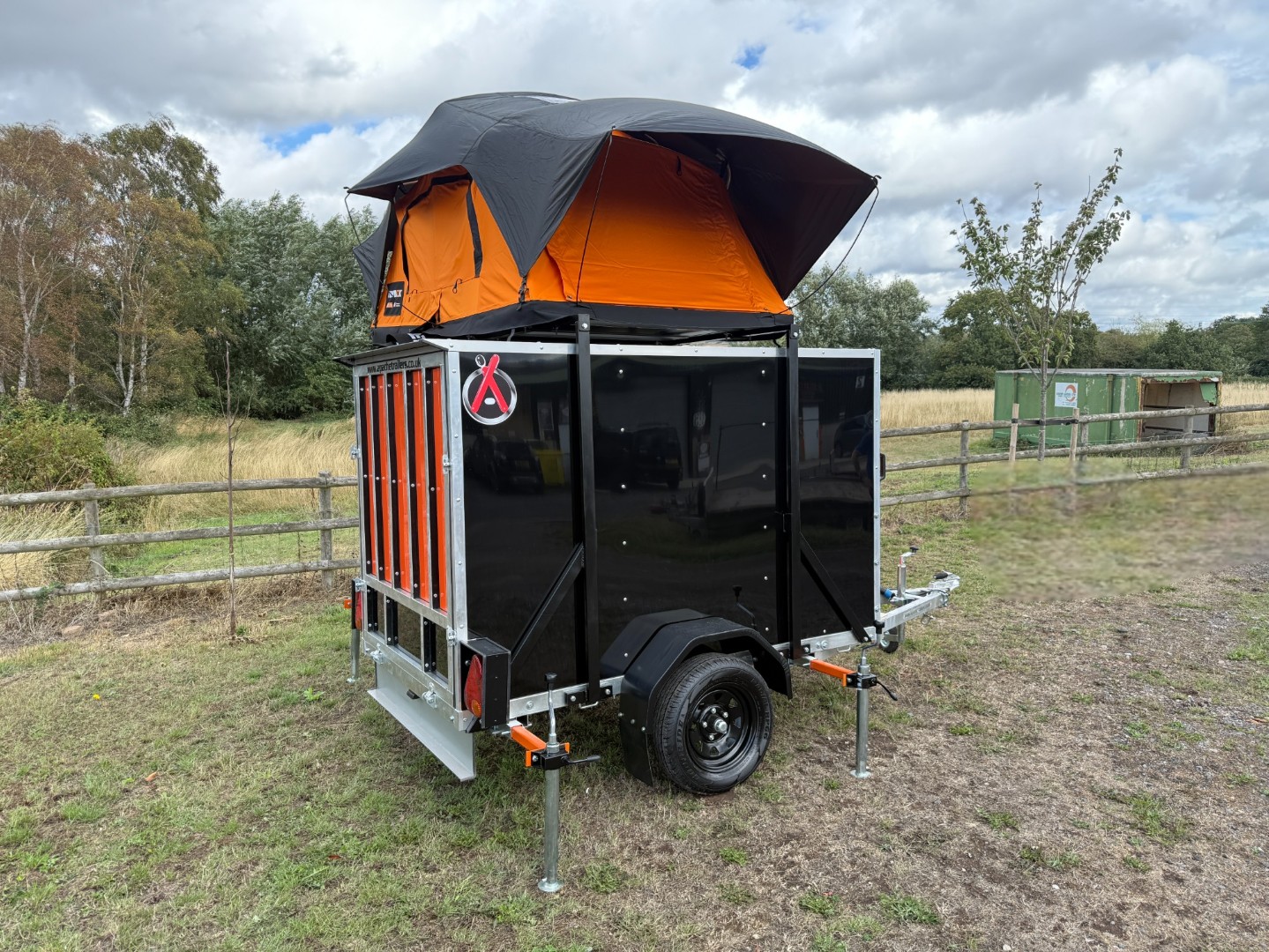

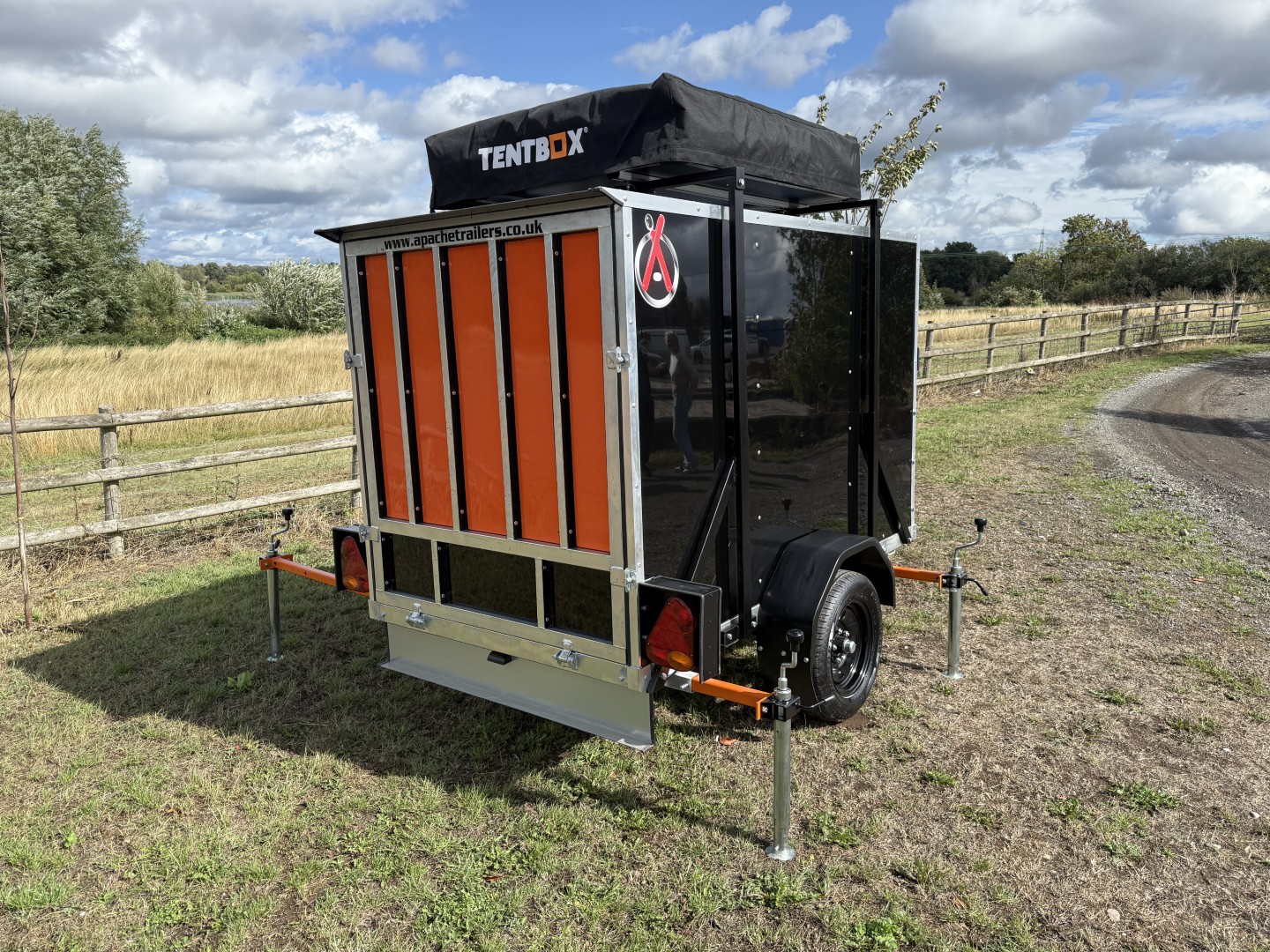

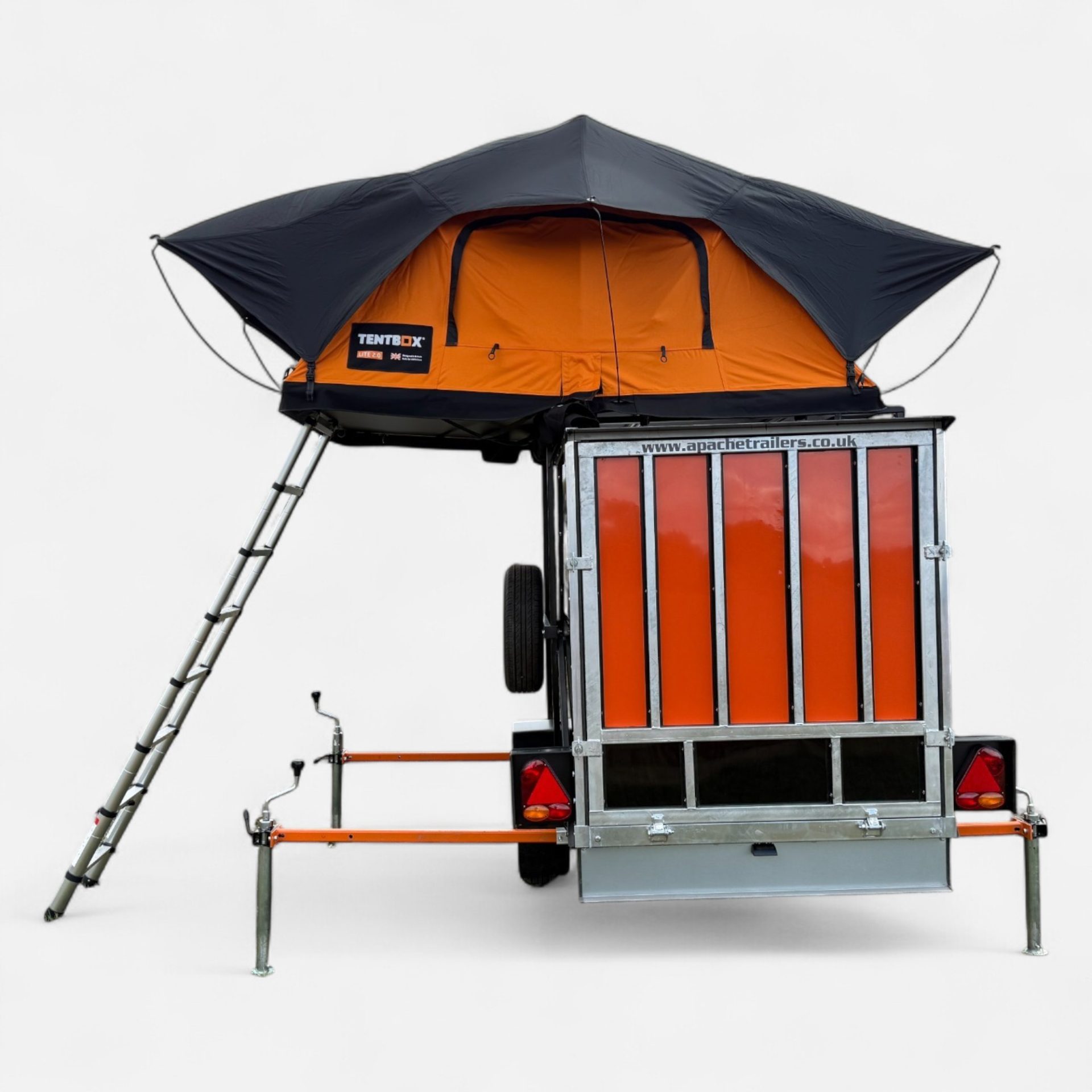

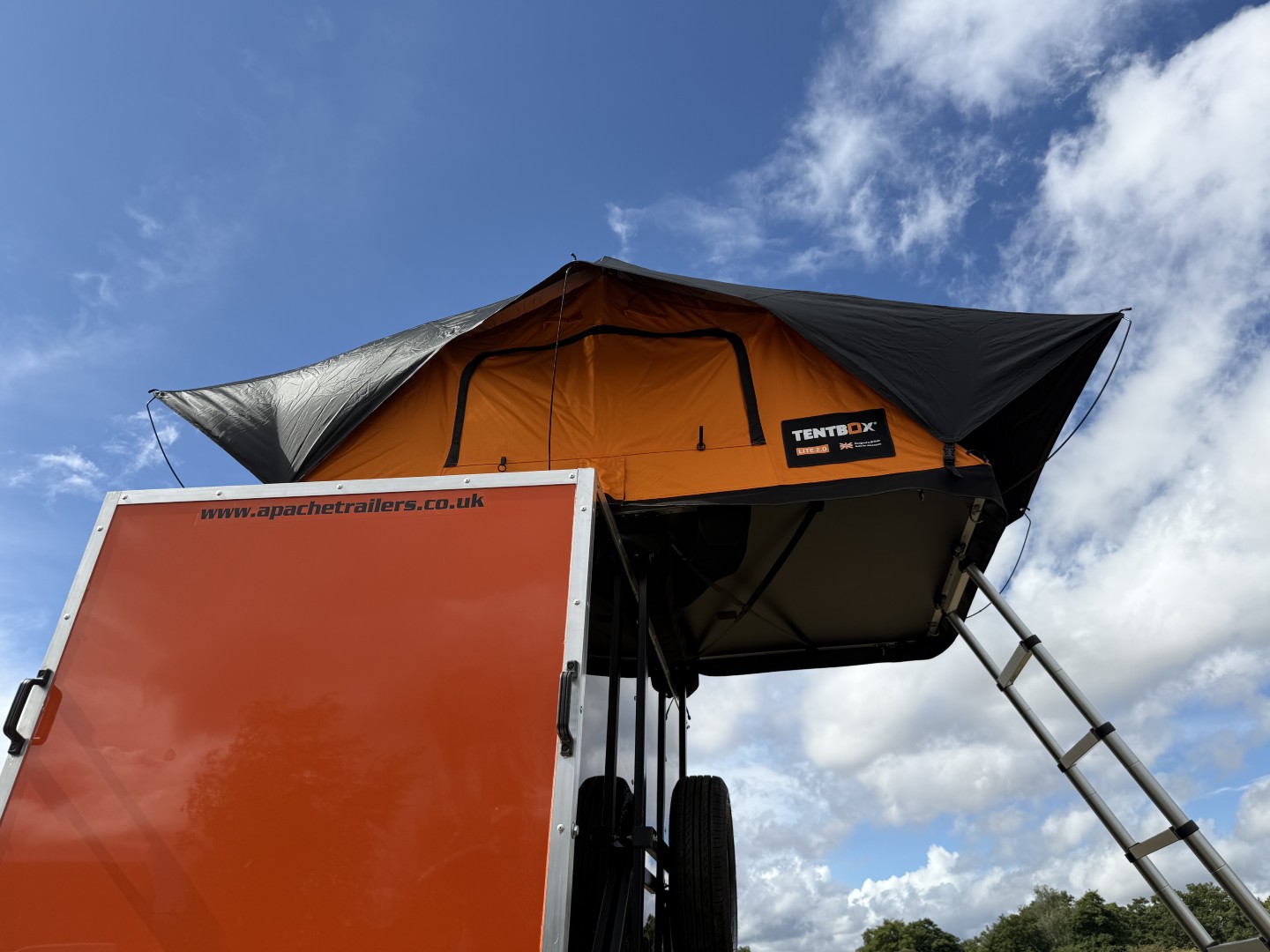

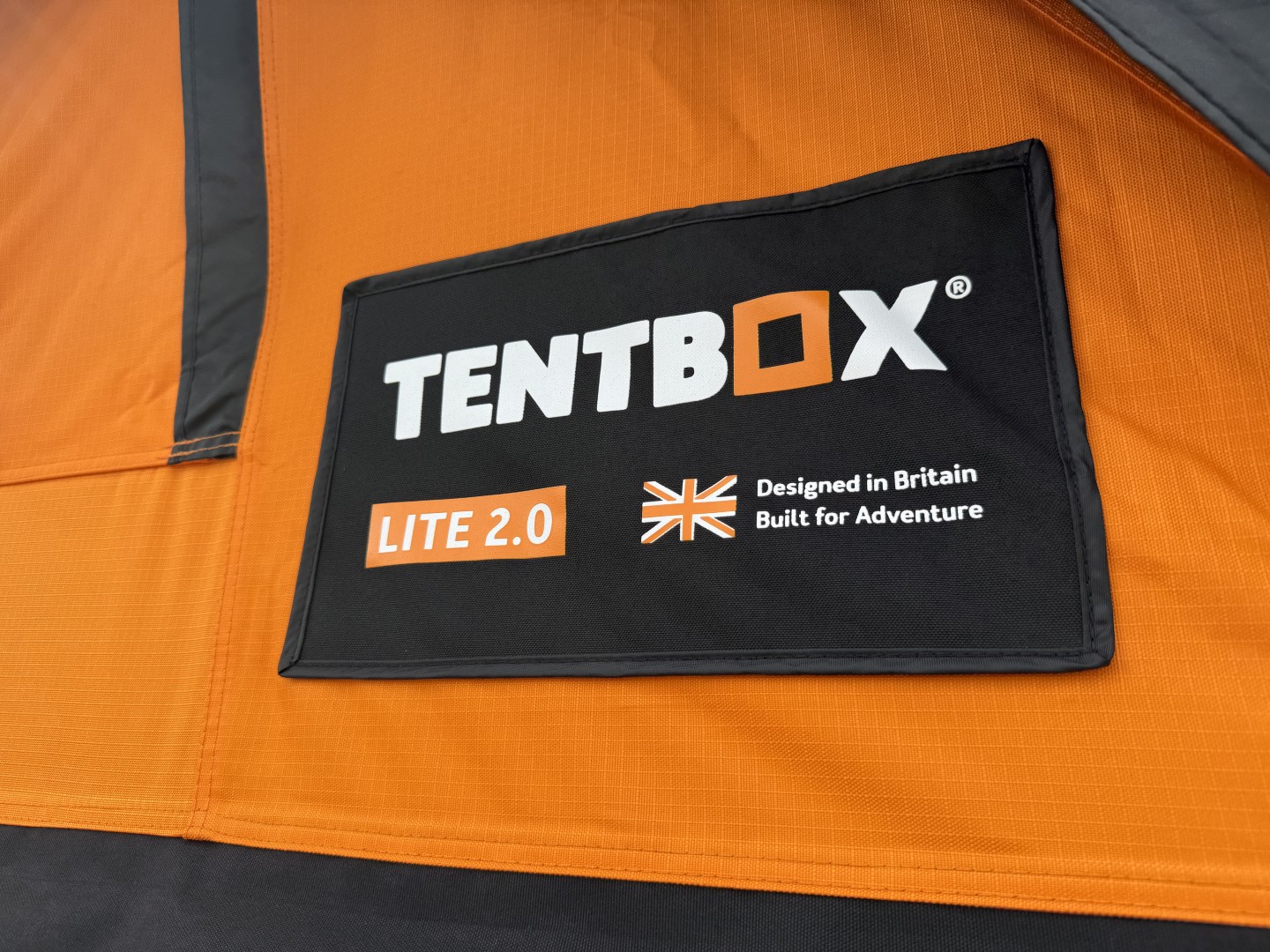

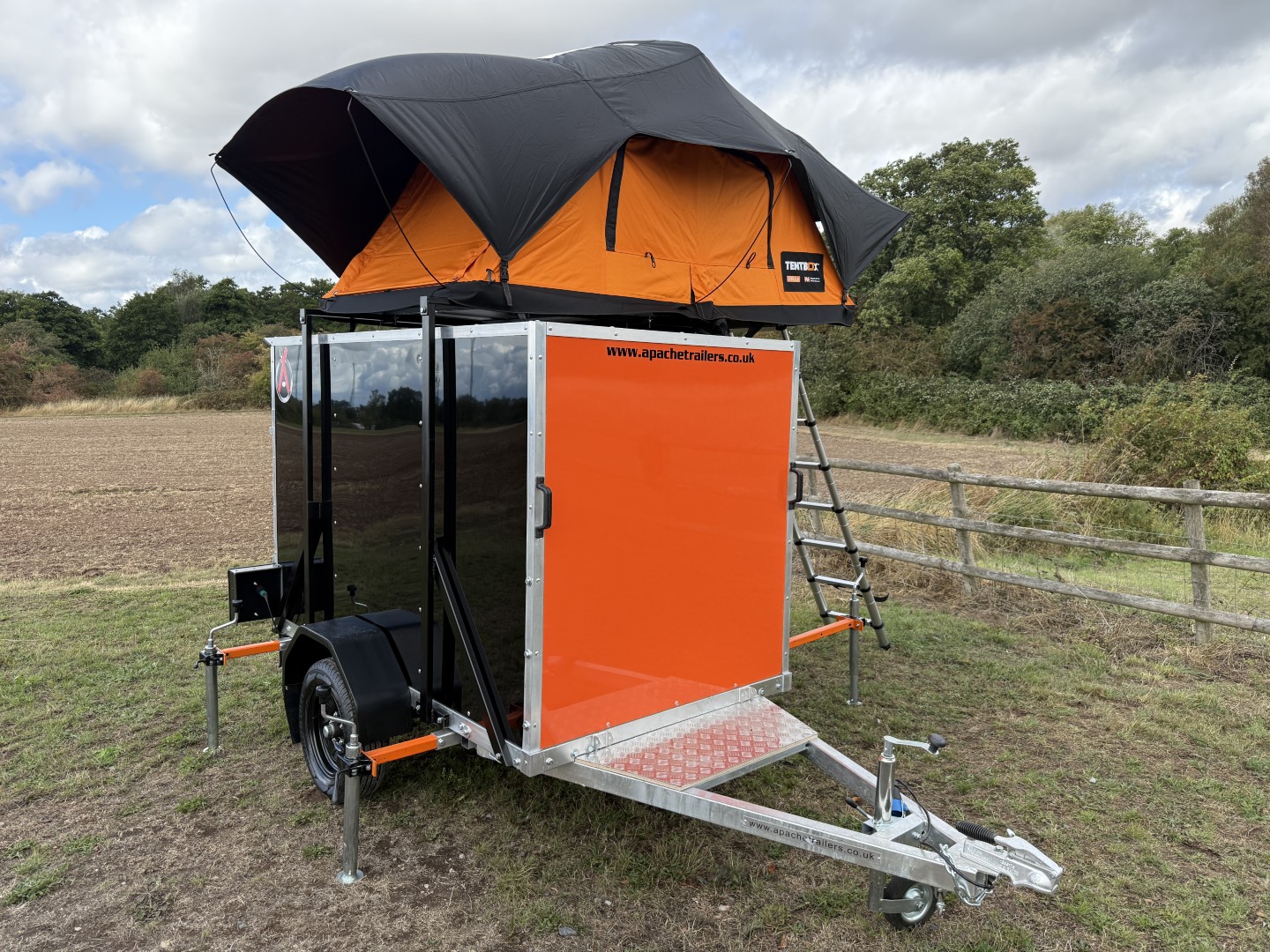

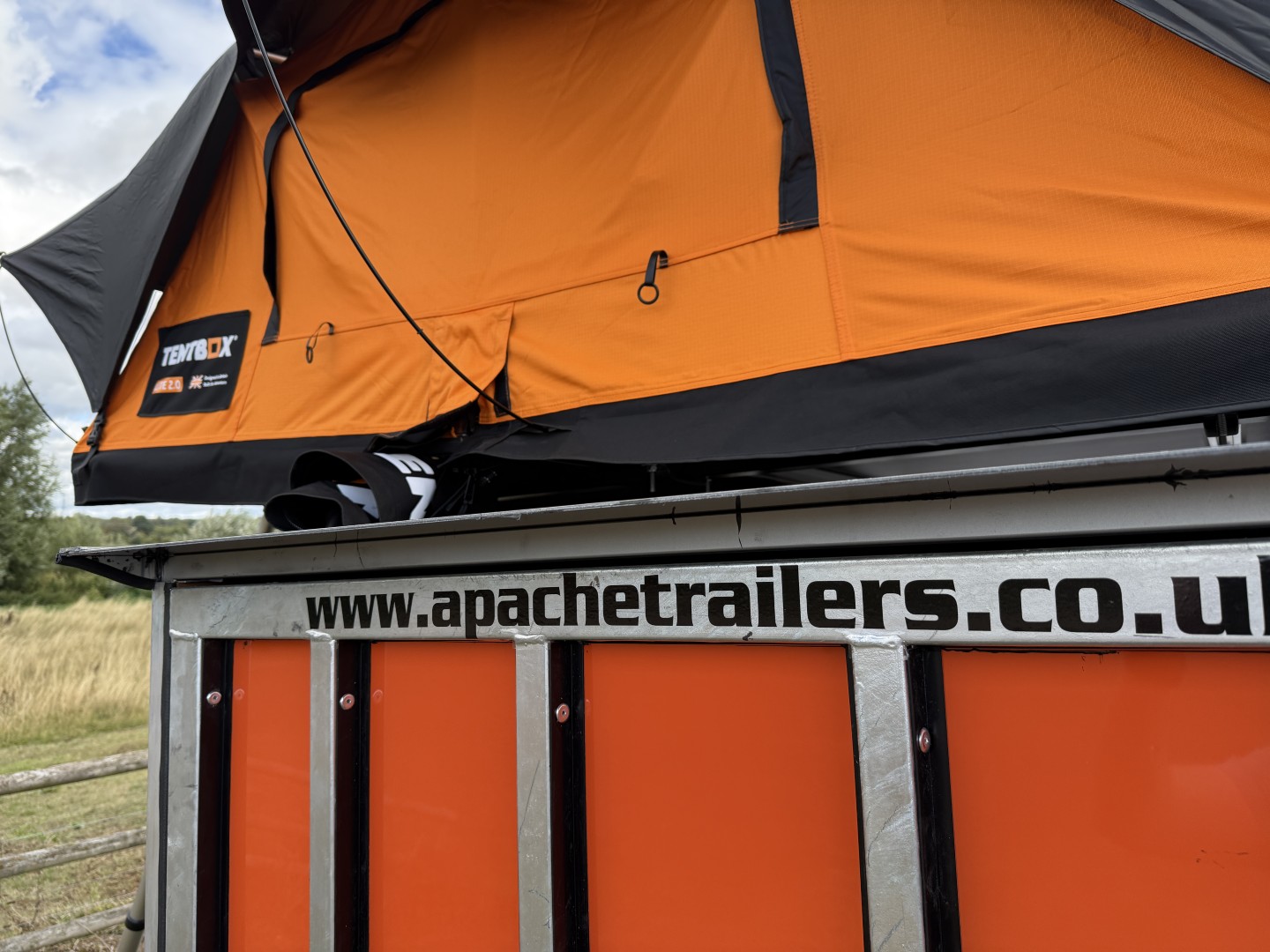

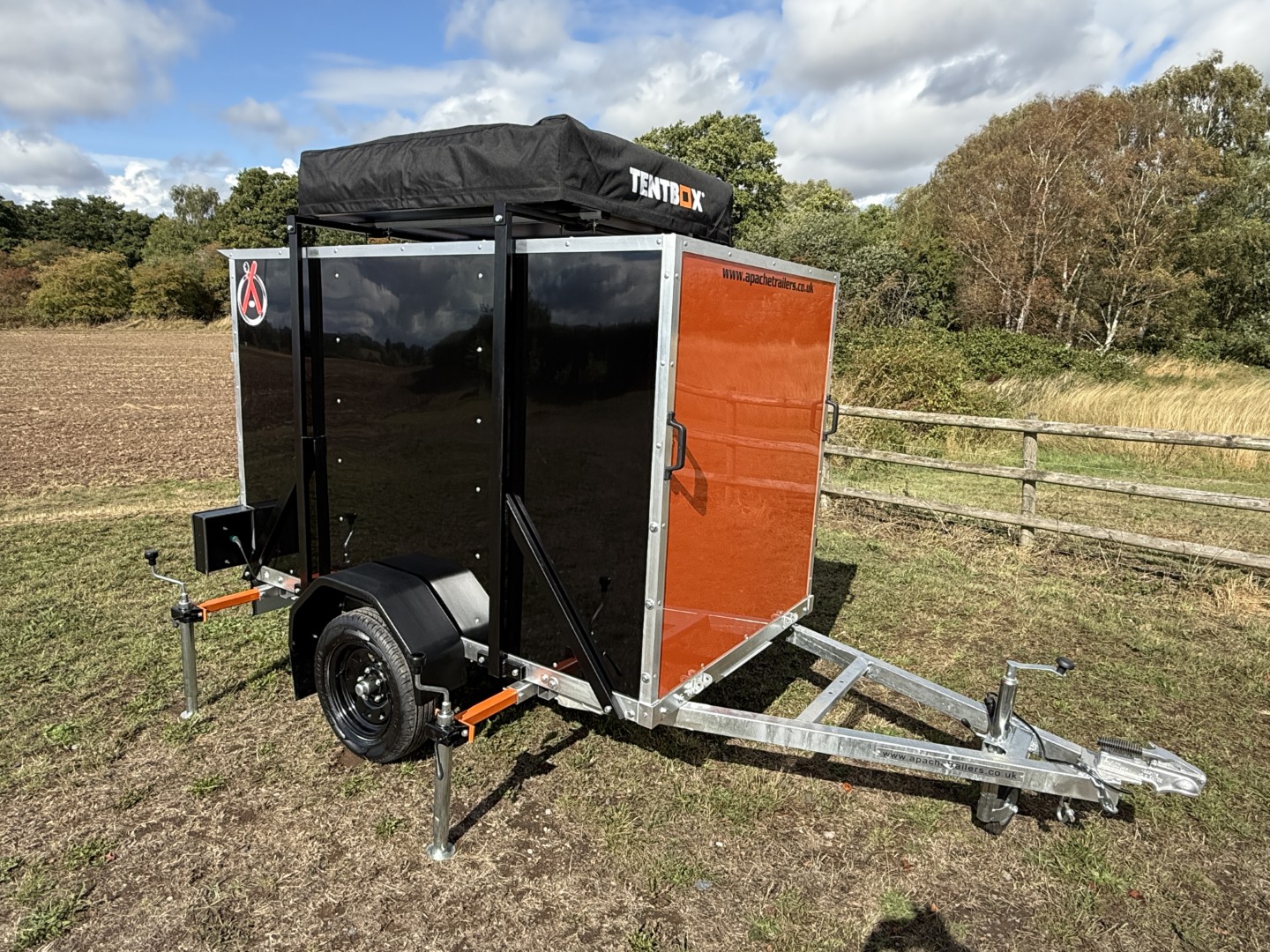

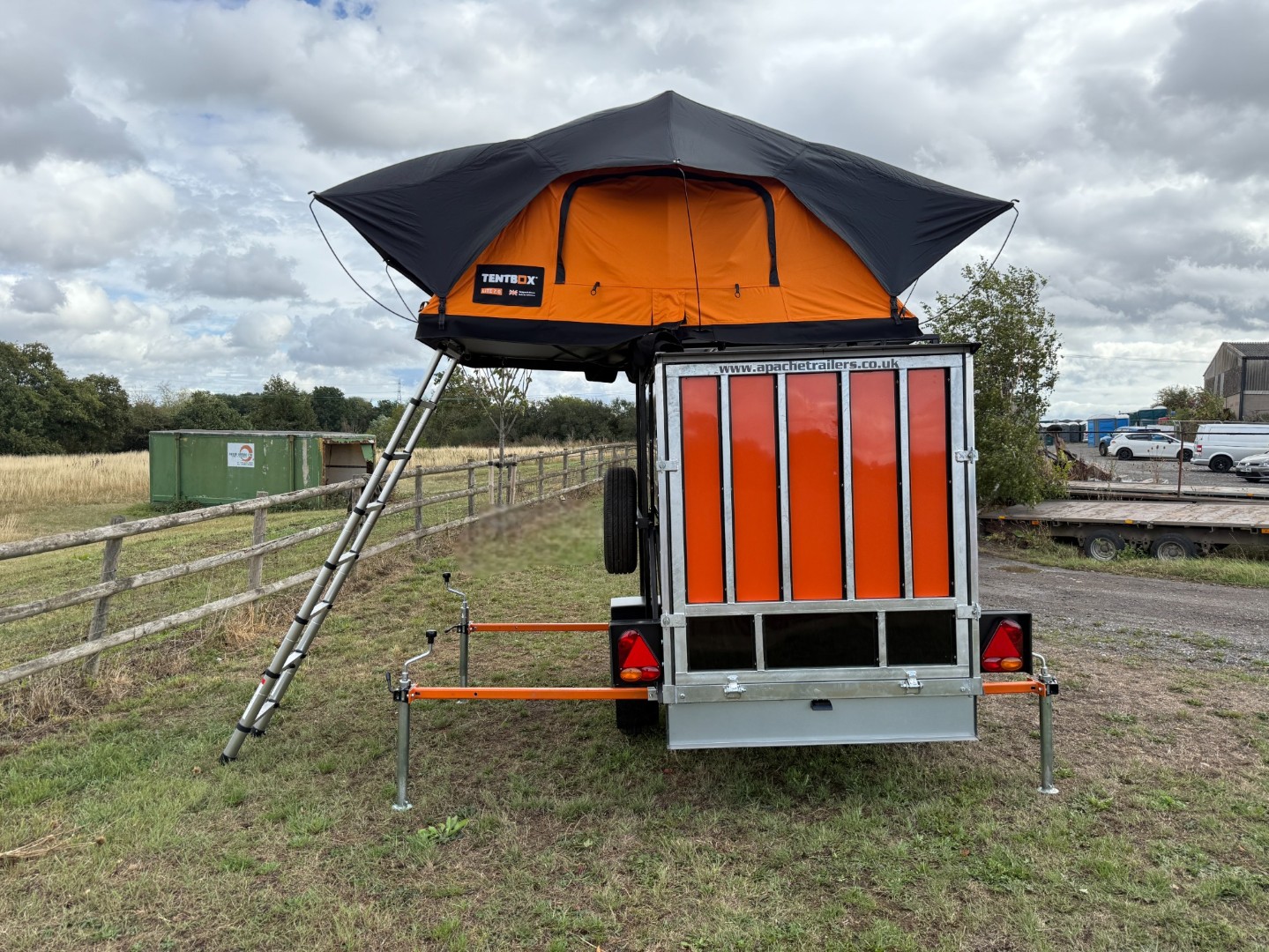

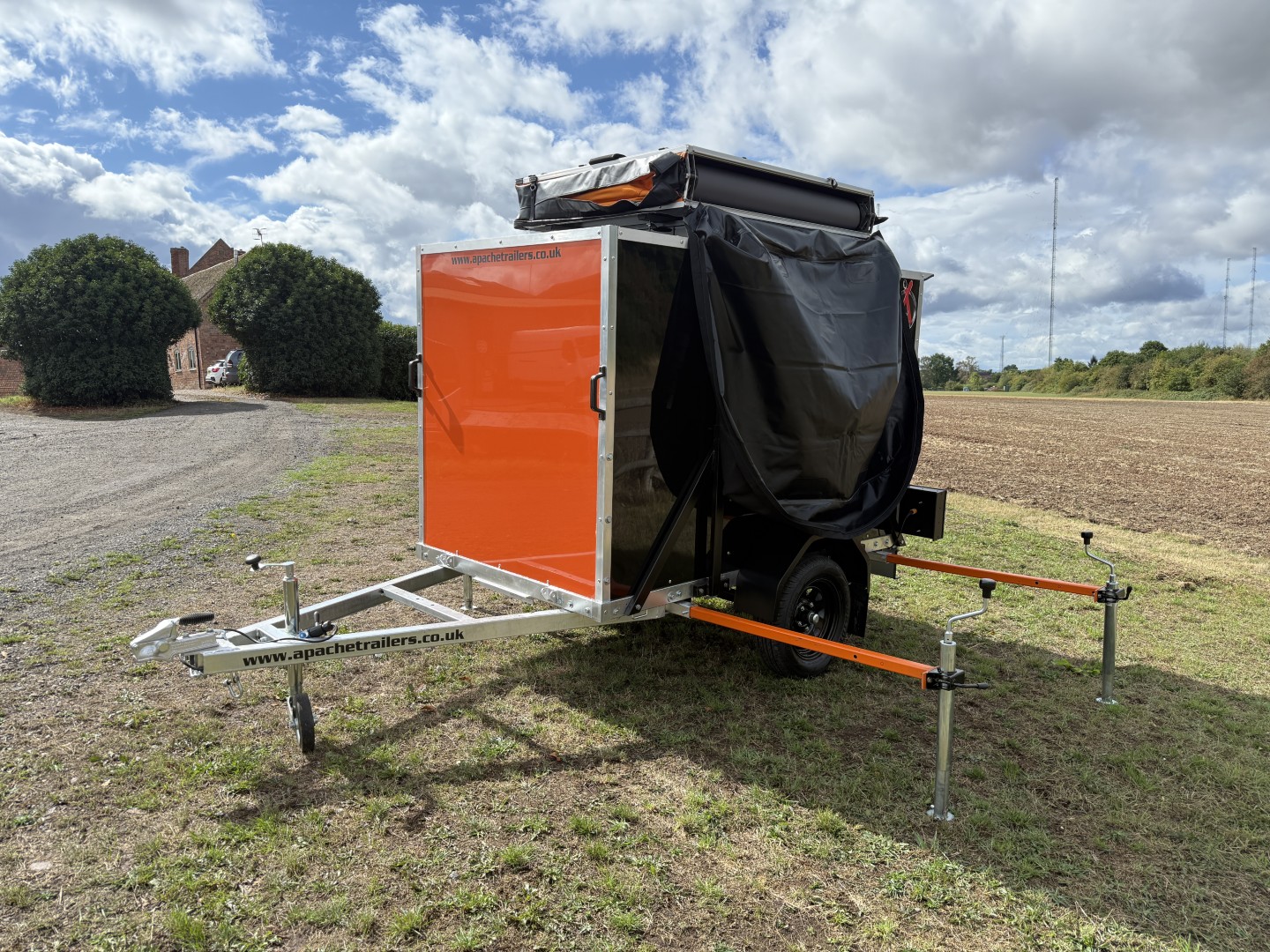

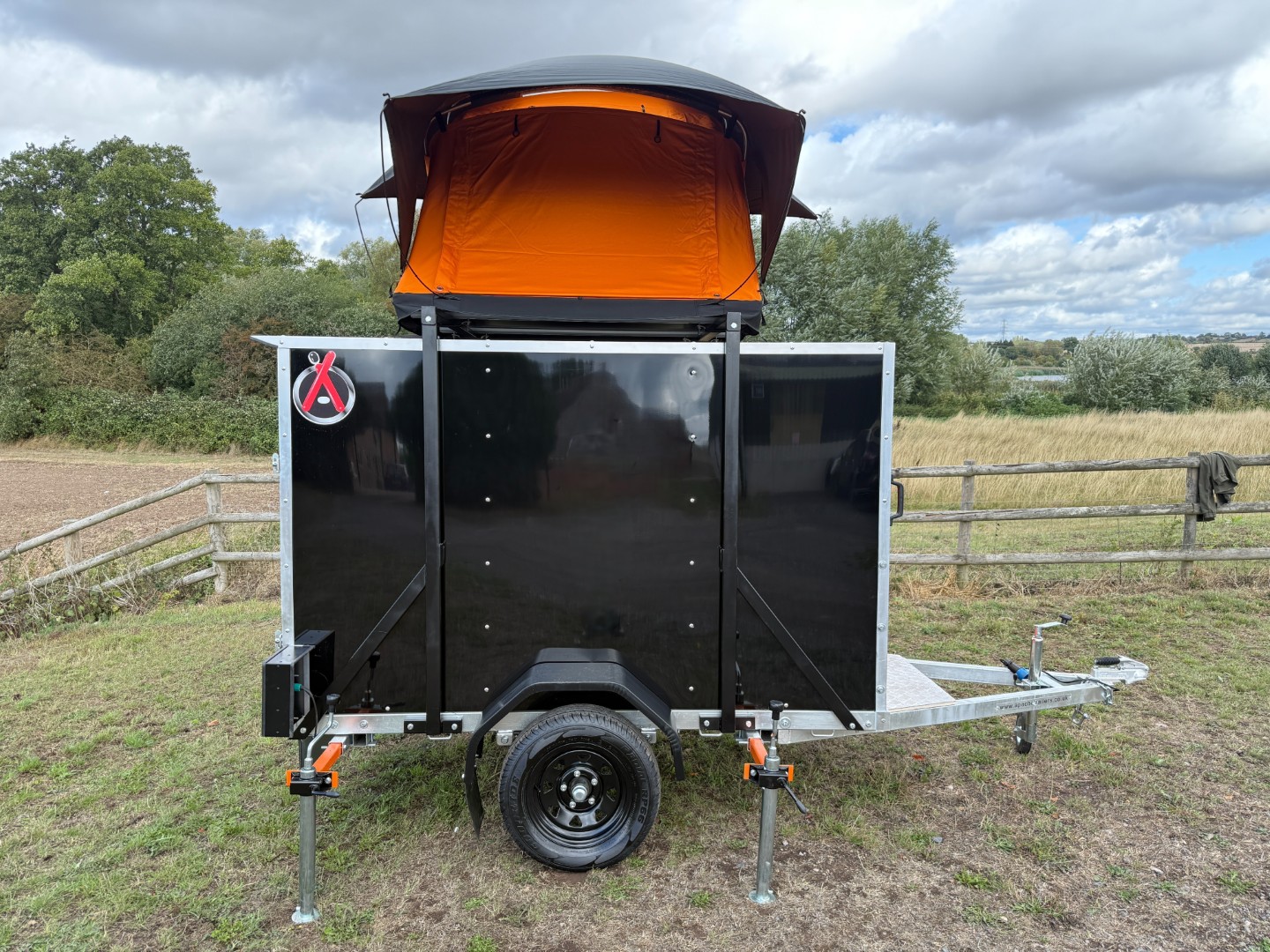

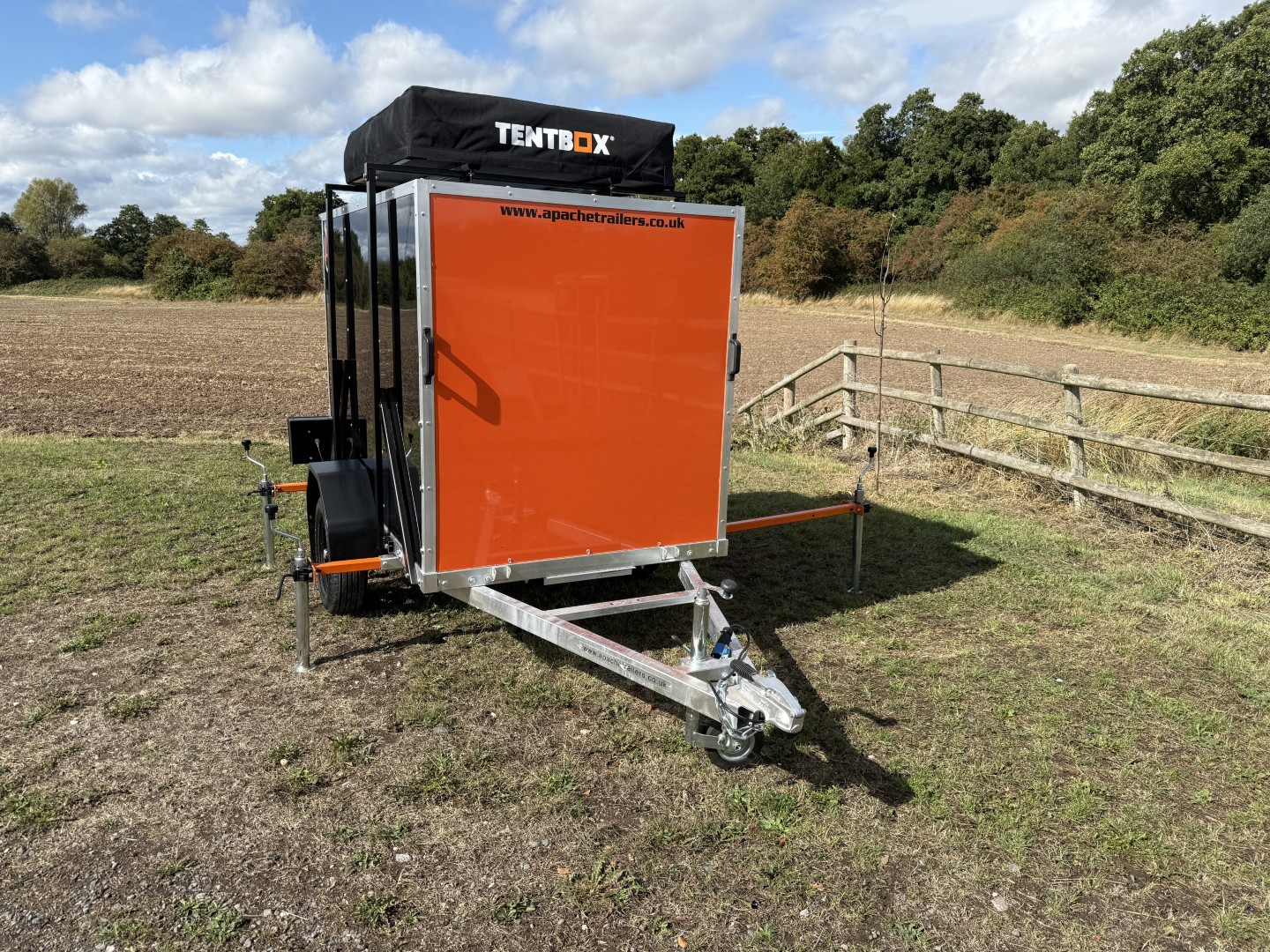

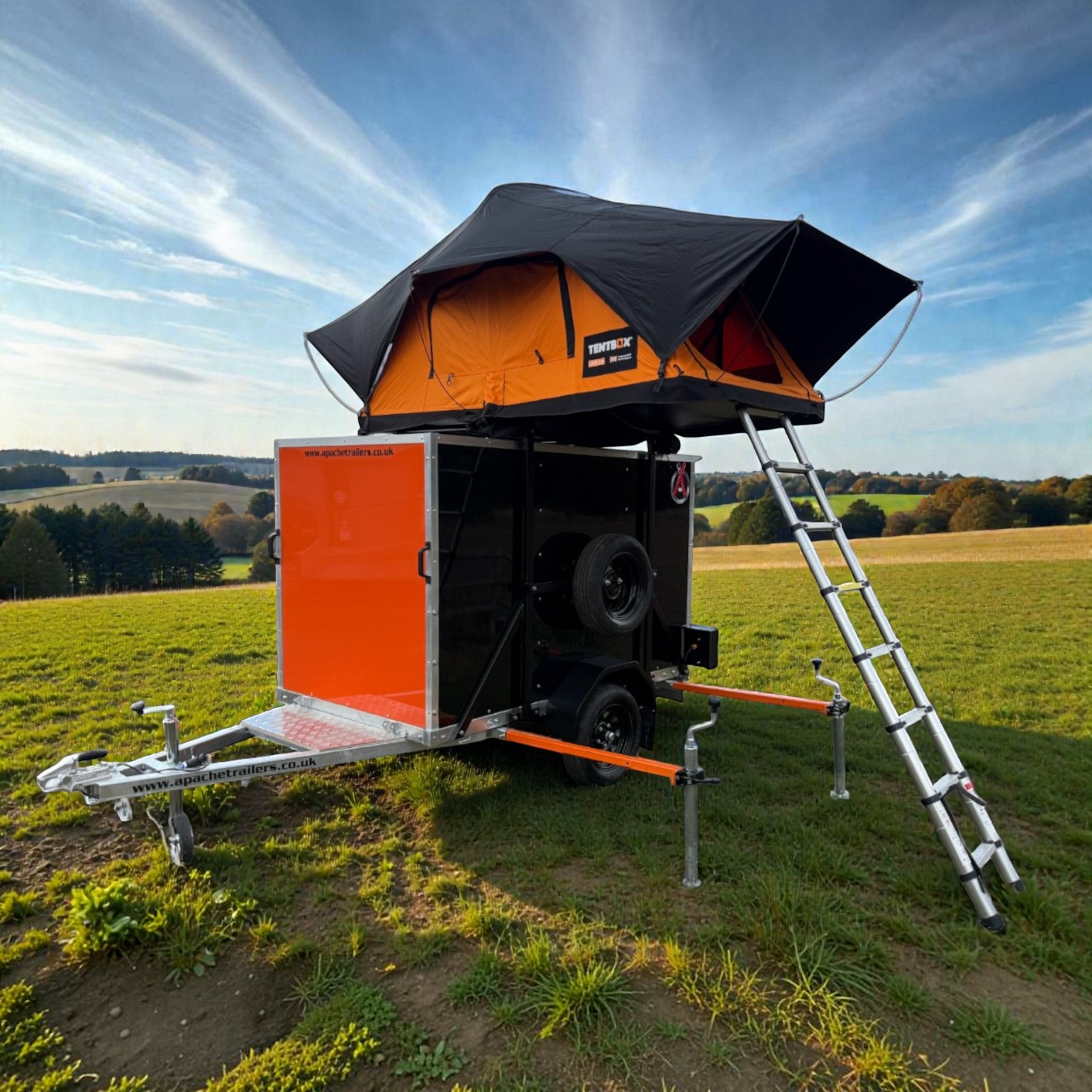

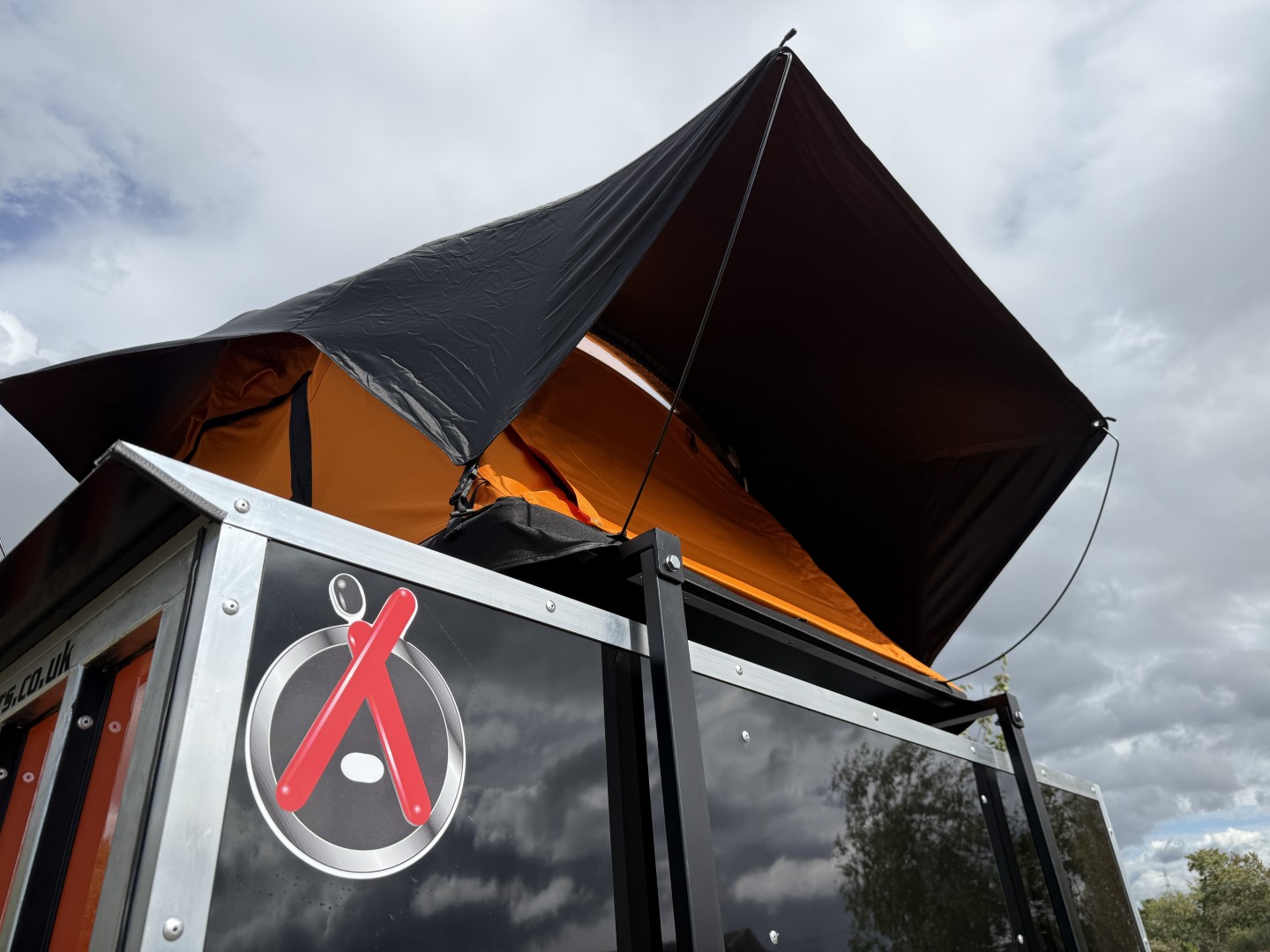

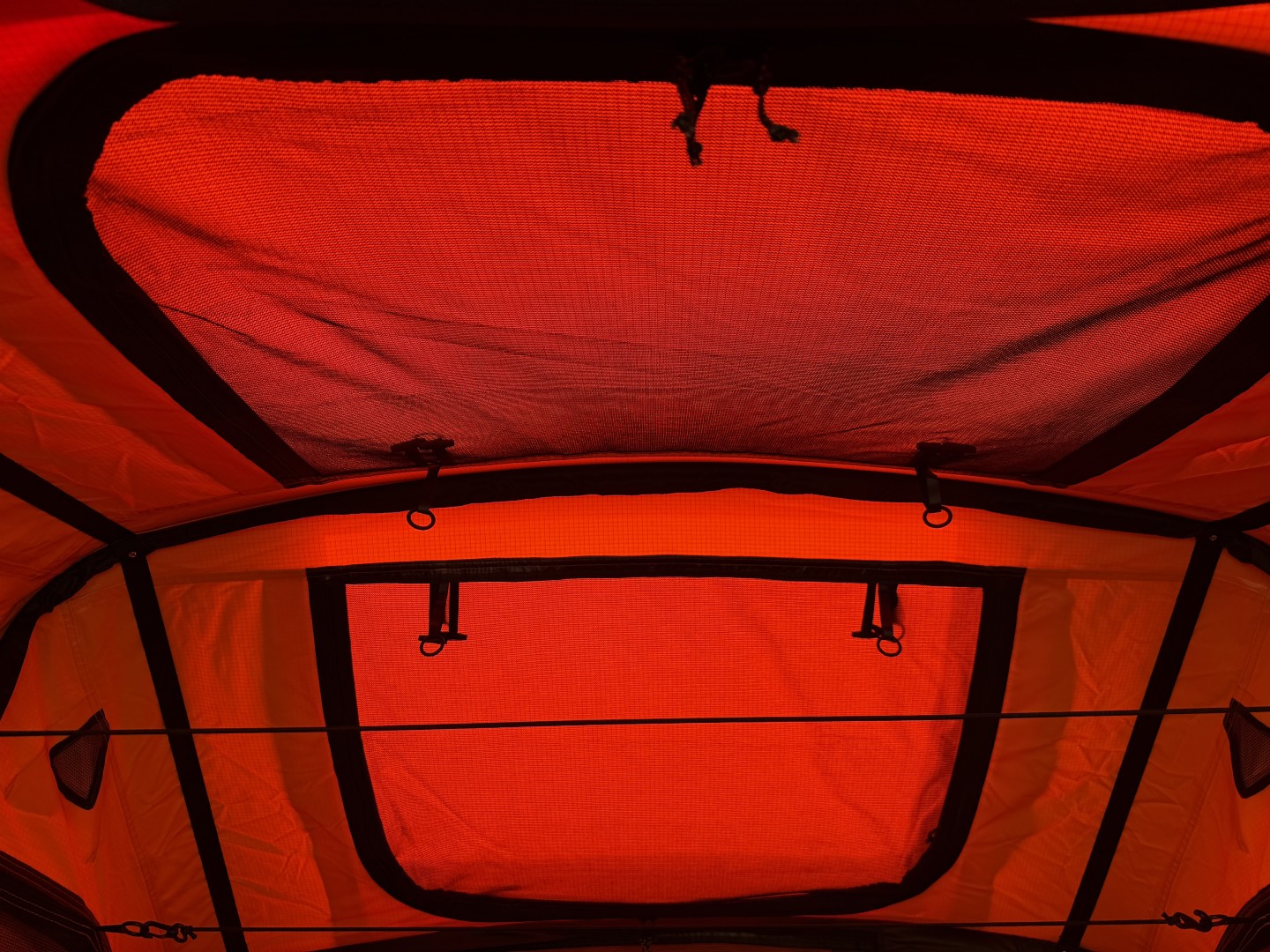

The Apache Roof Tent Camper 74 Ramp Trailer is a compact and durable 7ft x 4ft adventure trailer, equipped with a TentBox rooftop tent platform for comfortable off-grid camping. Designed and manufactured in the UK, it features a full-width chequer plate rear loading ramp, internal storage space, and a robust chassis—making it ideal for weekend escapes or overland journeys. Fully type-approved for use in the UK and EU.
Key Specifications & Dimensions:
- Bed Size: 7ft x 4ft (2100mm x 1200mm)

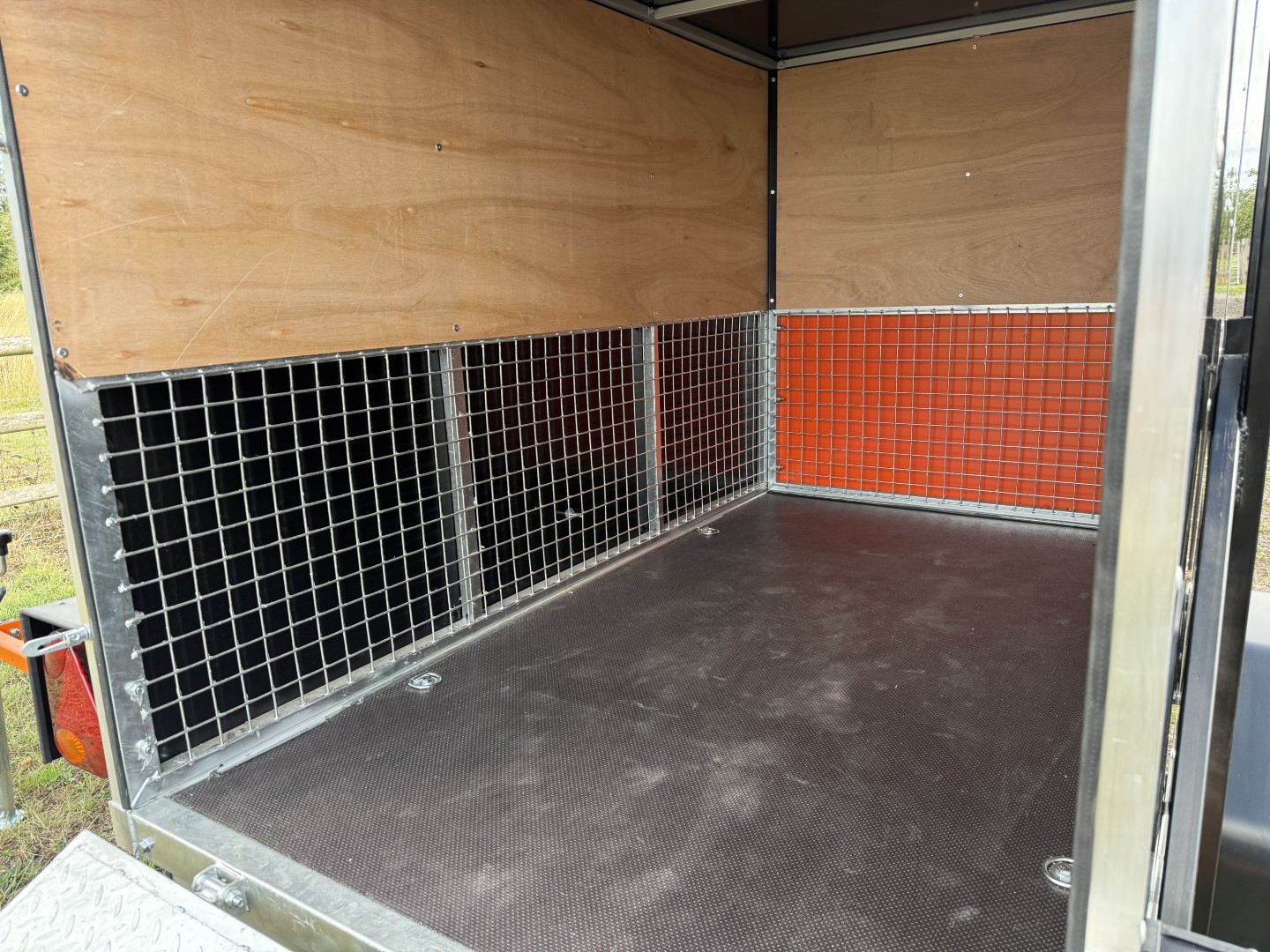

- Internal Dimensions: 7ft x 4ft x 4ft 4in (2100mm x 1200mm x 1320mm)
- Load Opening Area: 3ft 10in x 4ft 2in (1180mm x 1280mm)
- External Dimensions (w/o tent): 11ft 7in x 5ft 7in x 6ft (3556mm x 1730mm x 1800mm)
- External Height (with tent): 7ft 2in (2180mm)
- Roof Rail Length: 4ft 5in (1360mm)
- Gross Vehicle Weight (GVW): 750 kg (unbraked)
Build & Construction:
- Chassis: Heavy-duty galvanised steel
- Floor: Hot-dipped galvanised steel with phenolic board
- Siding: Durable aluminium composite panels

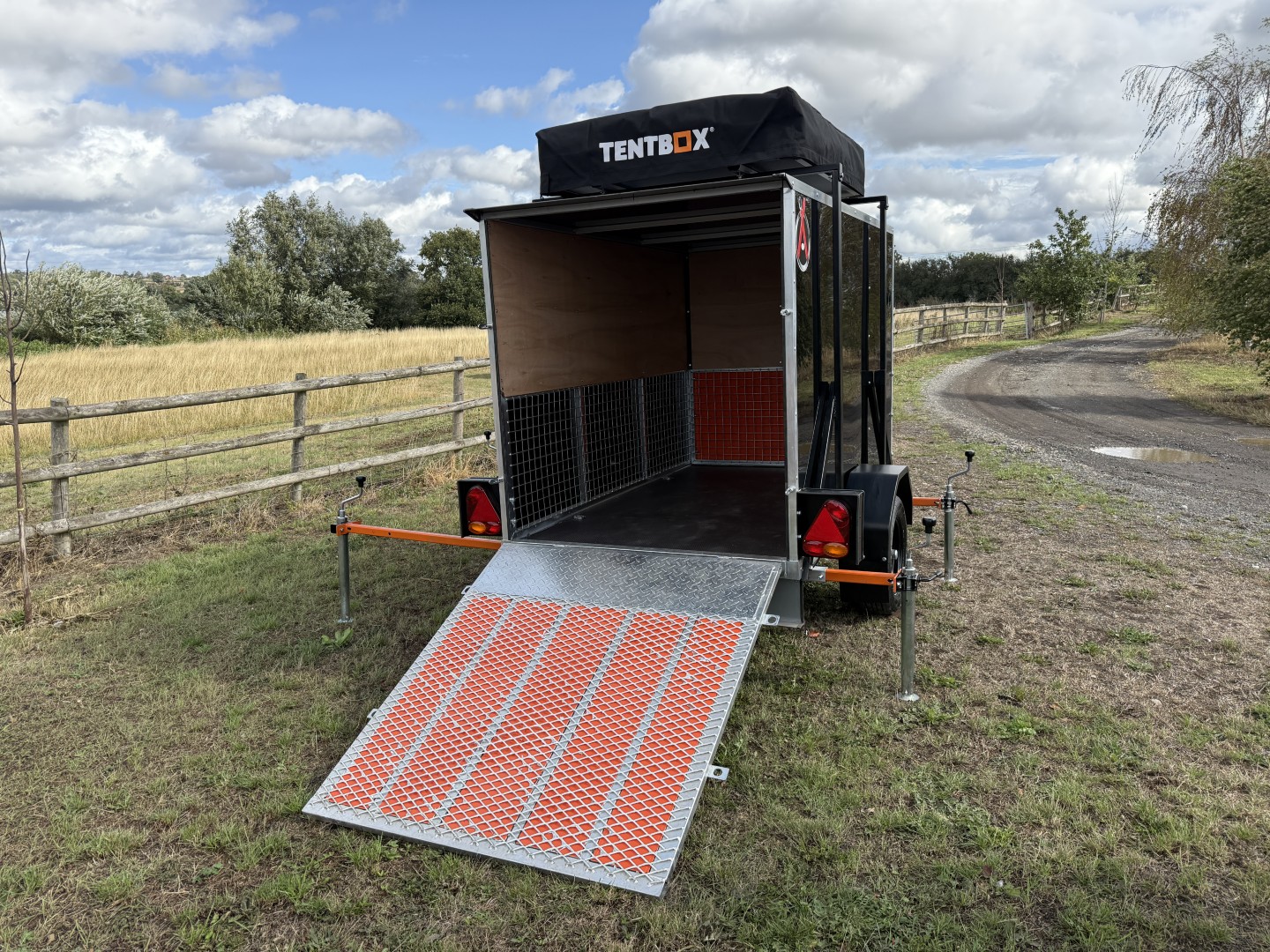

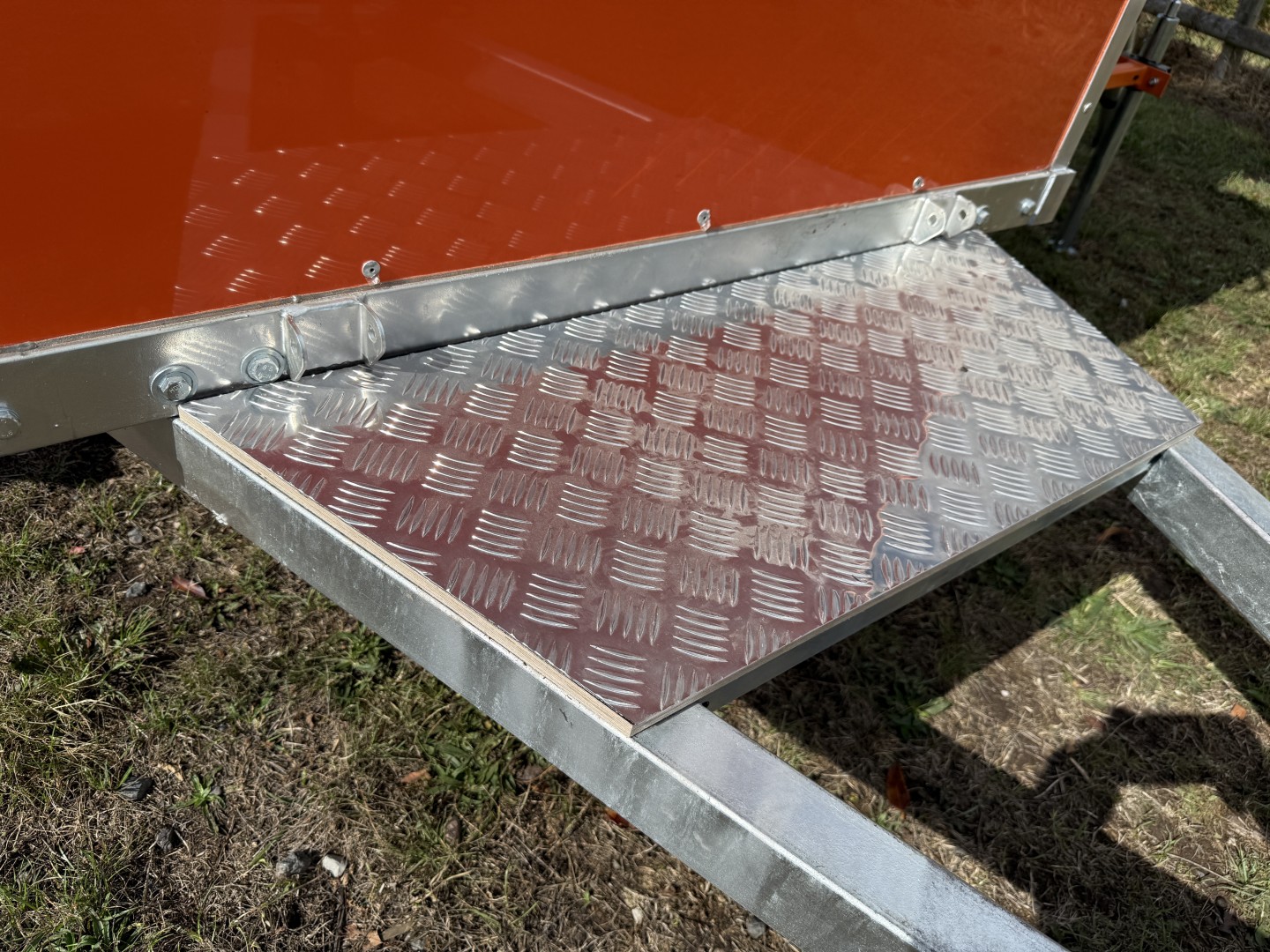

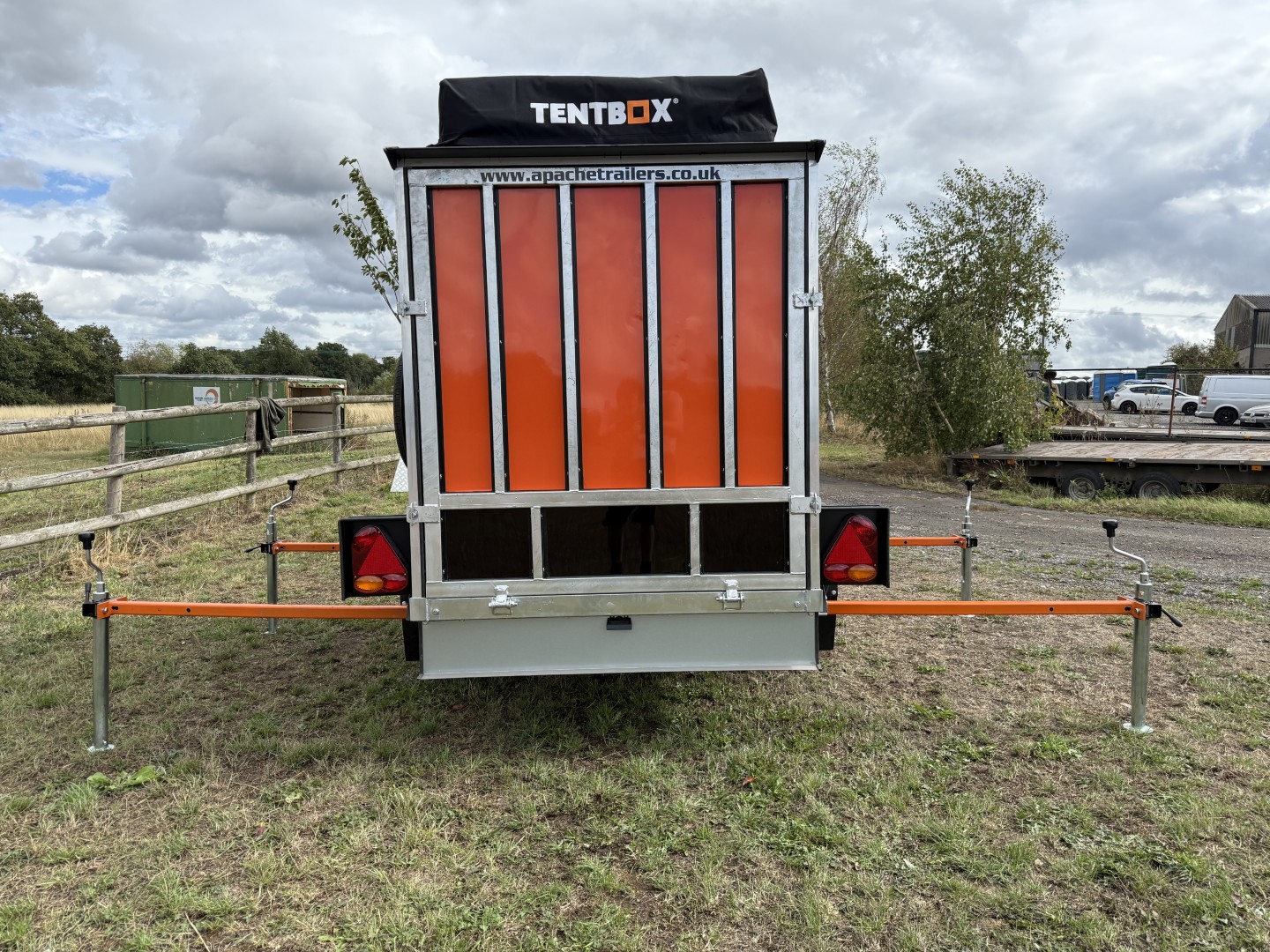

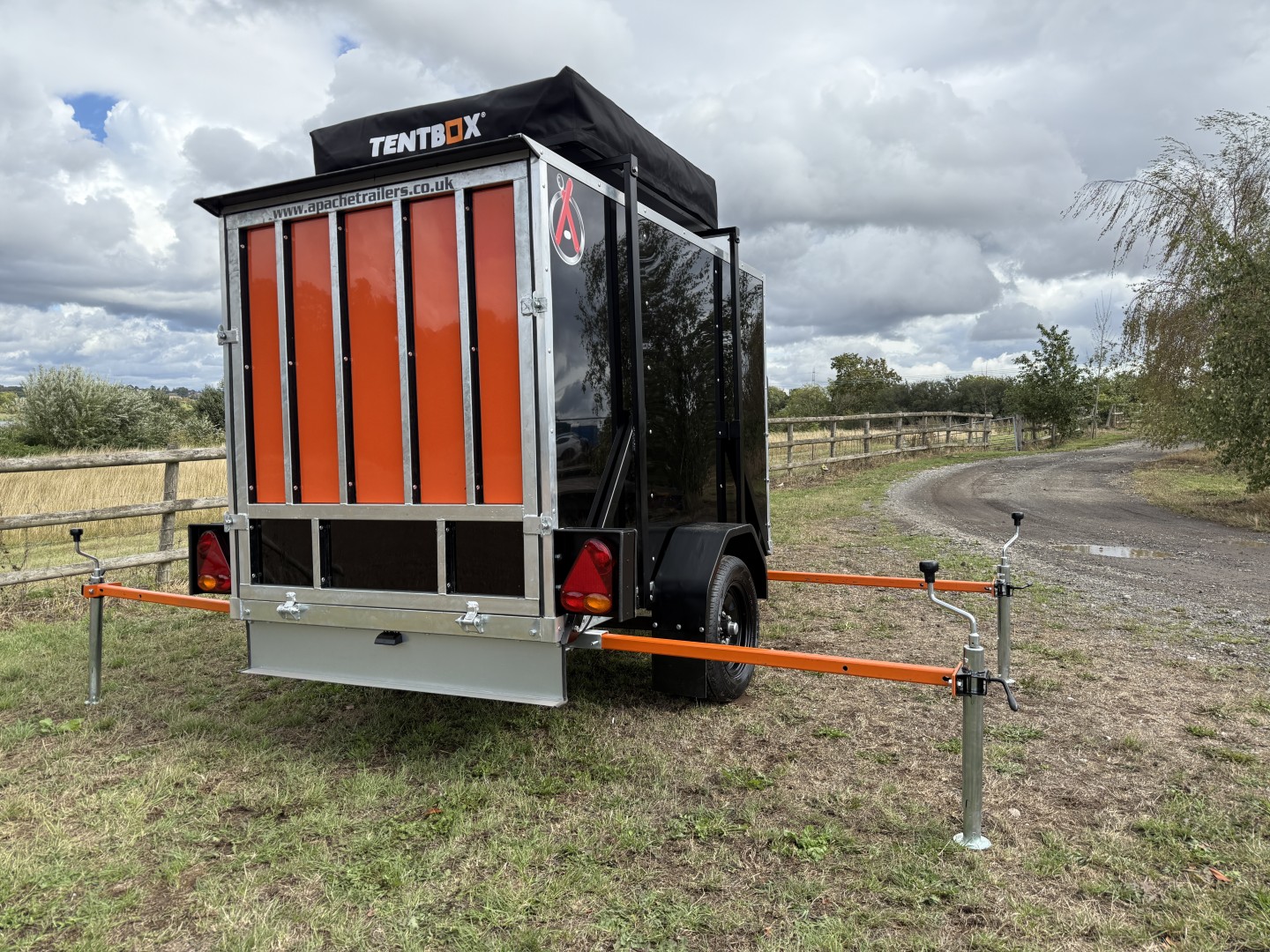

- Rear Access: Chequer plate loading ramp
- Axle & Suspension: Single axle with heavy-duty suspension
- Hitch Type: 50mm Bradley cast tow hitch

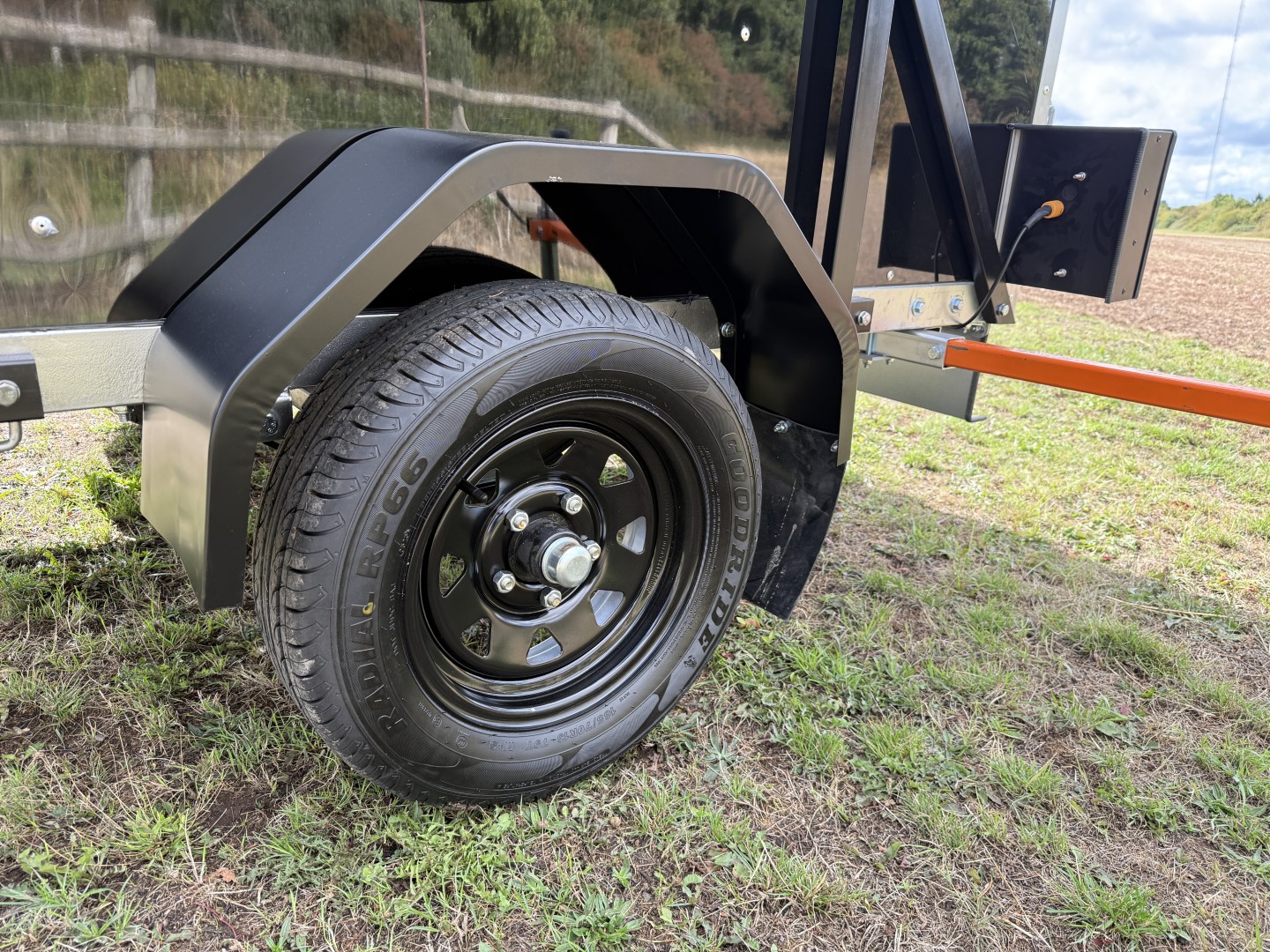

- Wheels: Black 13″ steel wheels with black powder-coated metal mudguards
Lighting & Electricals:
- Lighting: Certified lighting kit with black powder-coated housings
- Electricals: 7-pin heavy-duty socket
Included as Standard:

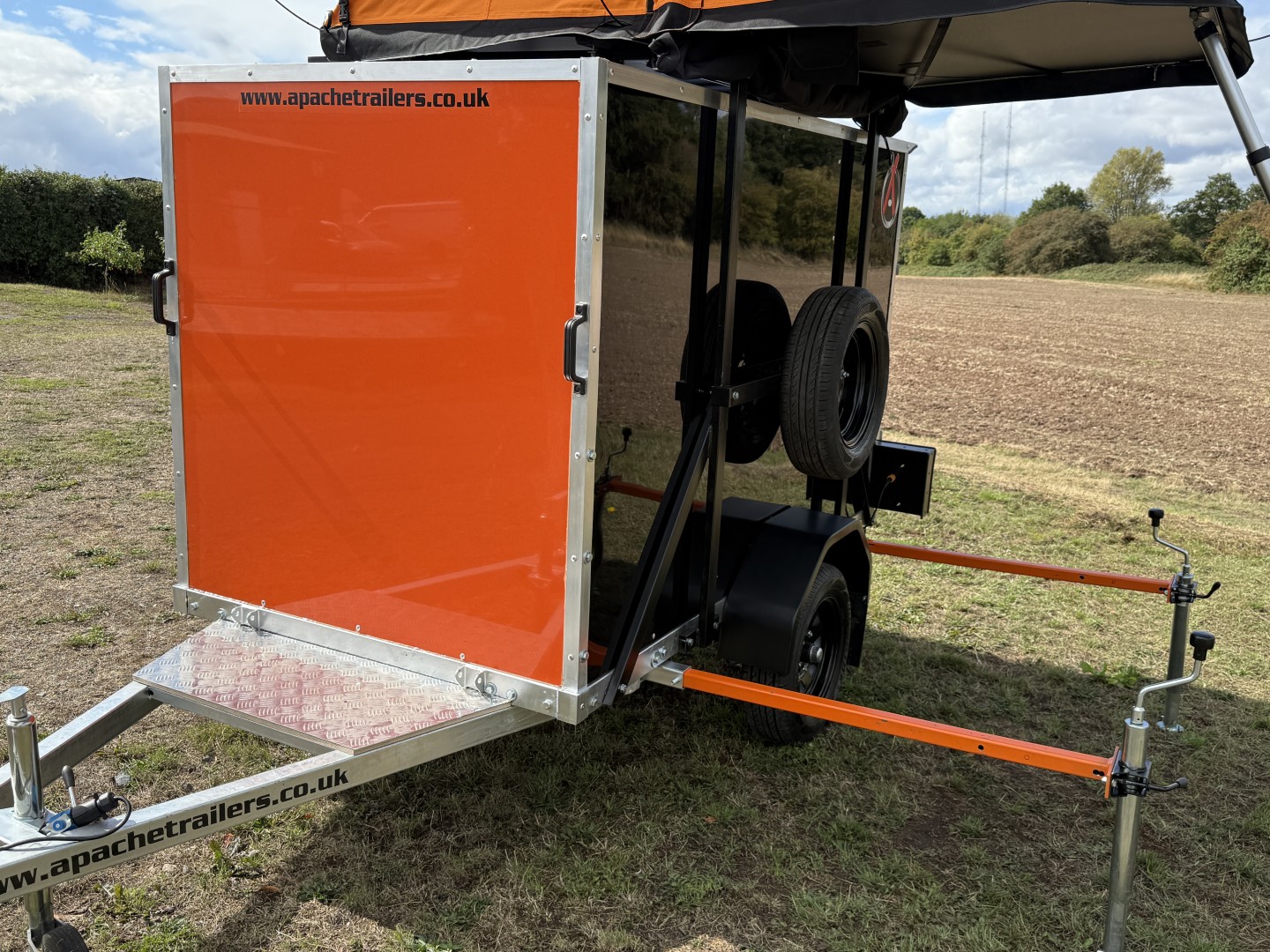

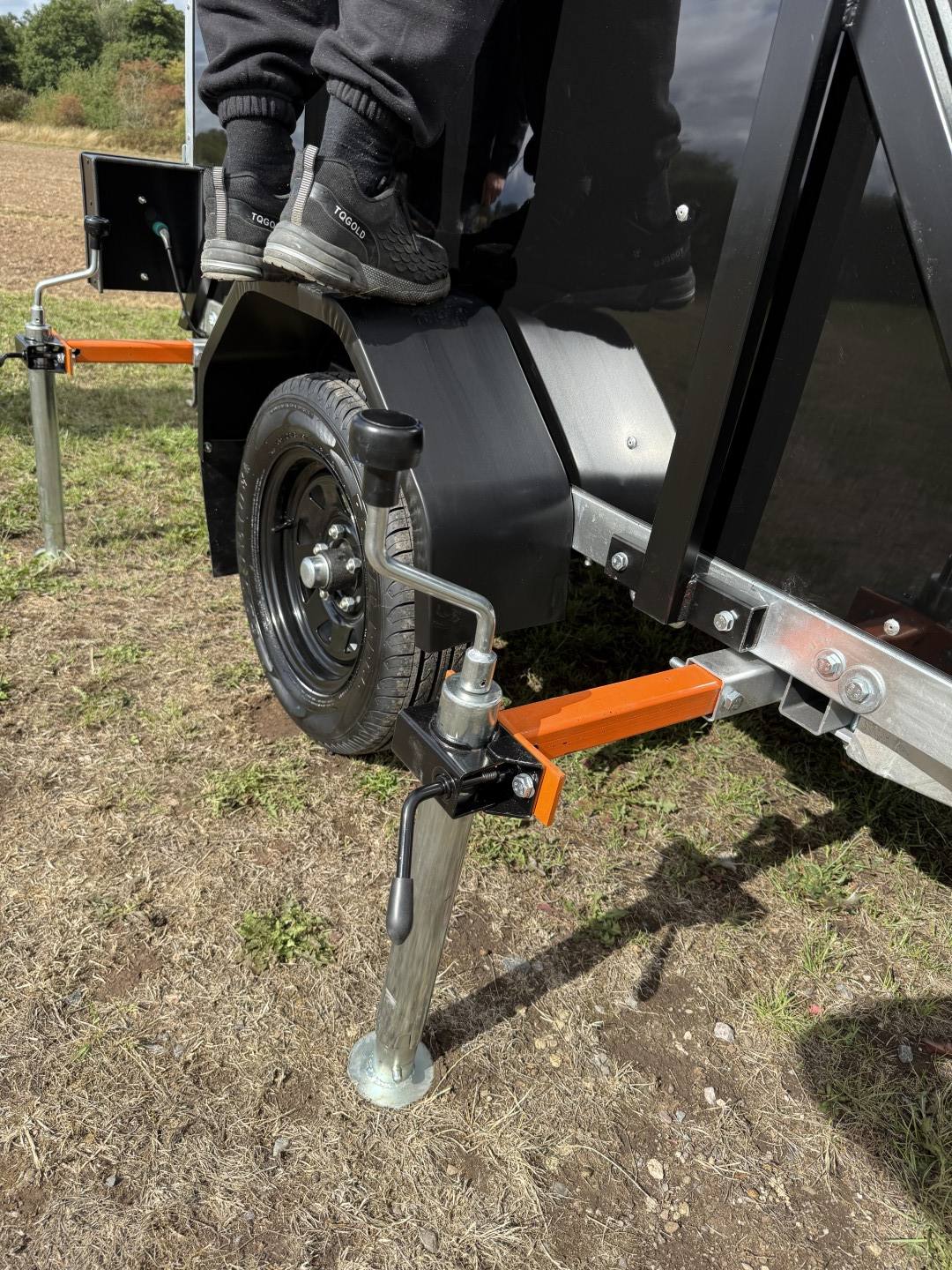

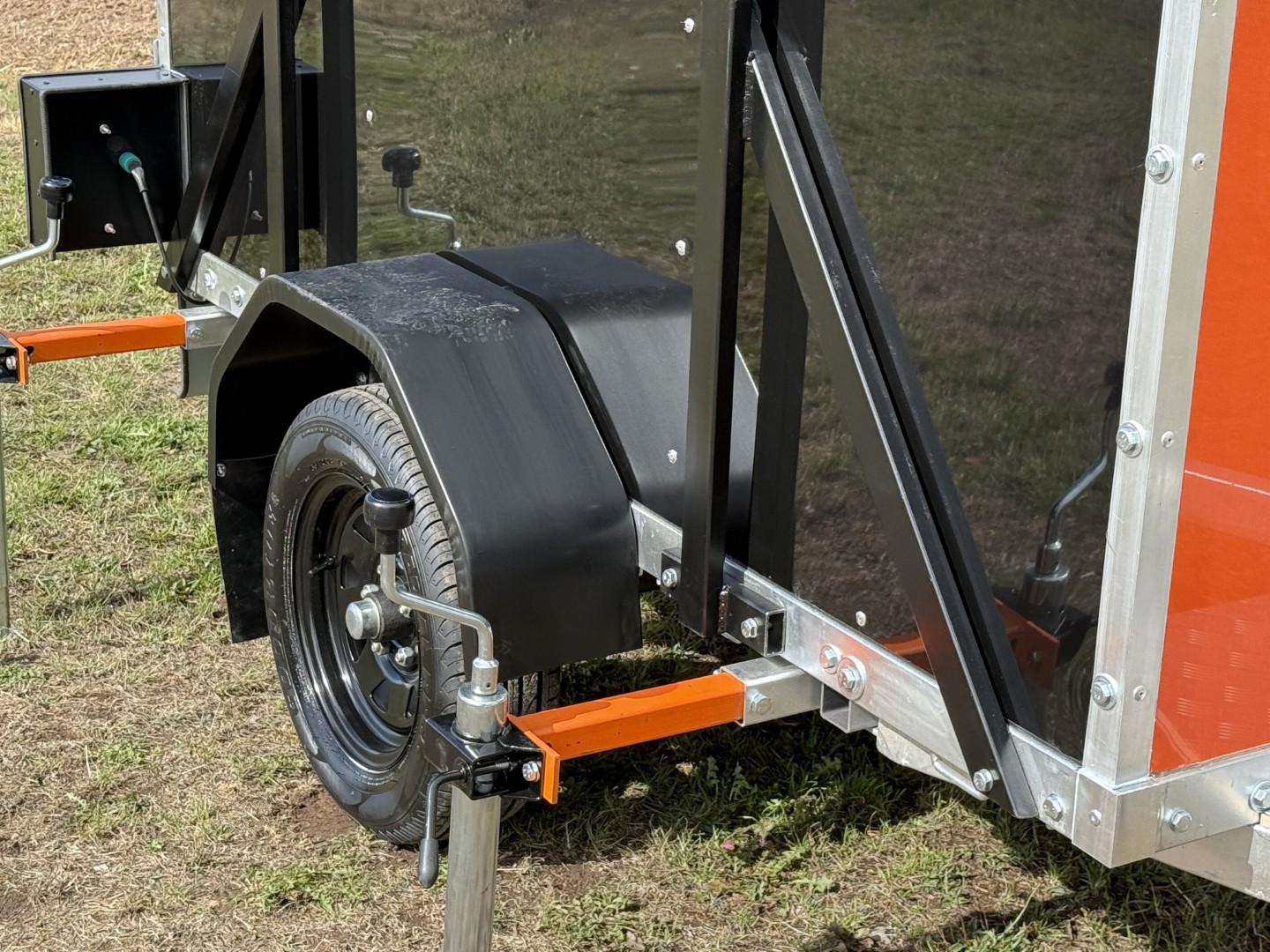

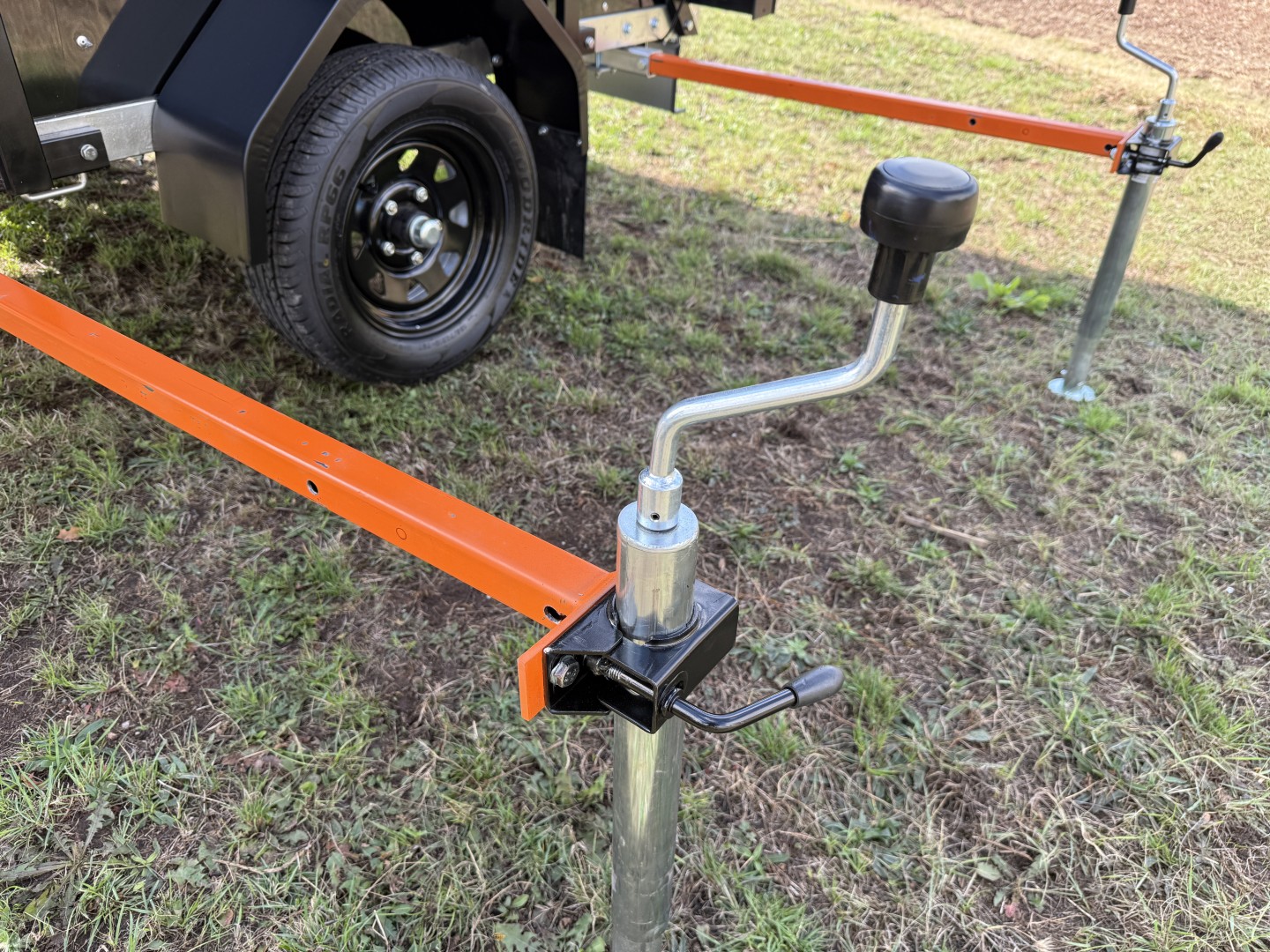

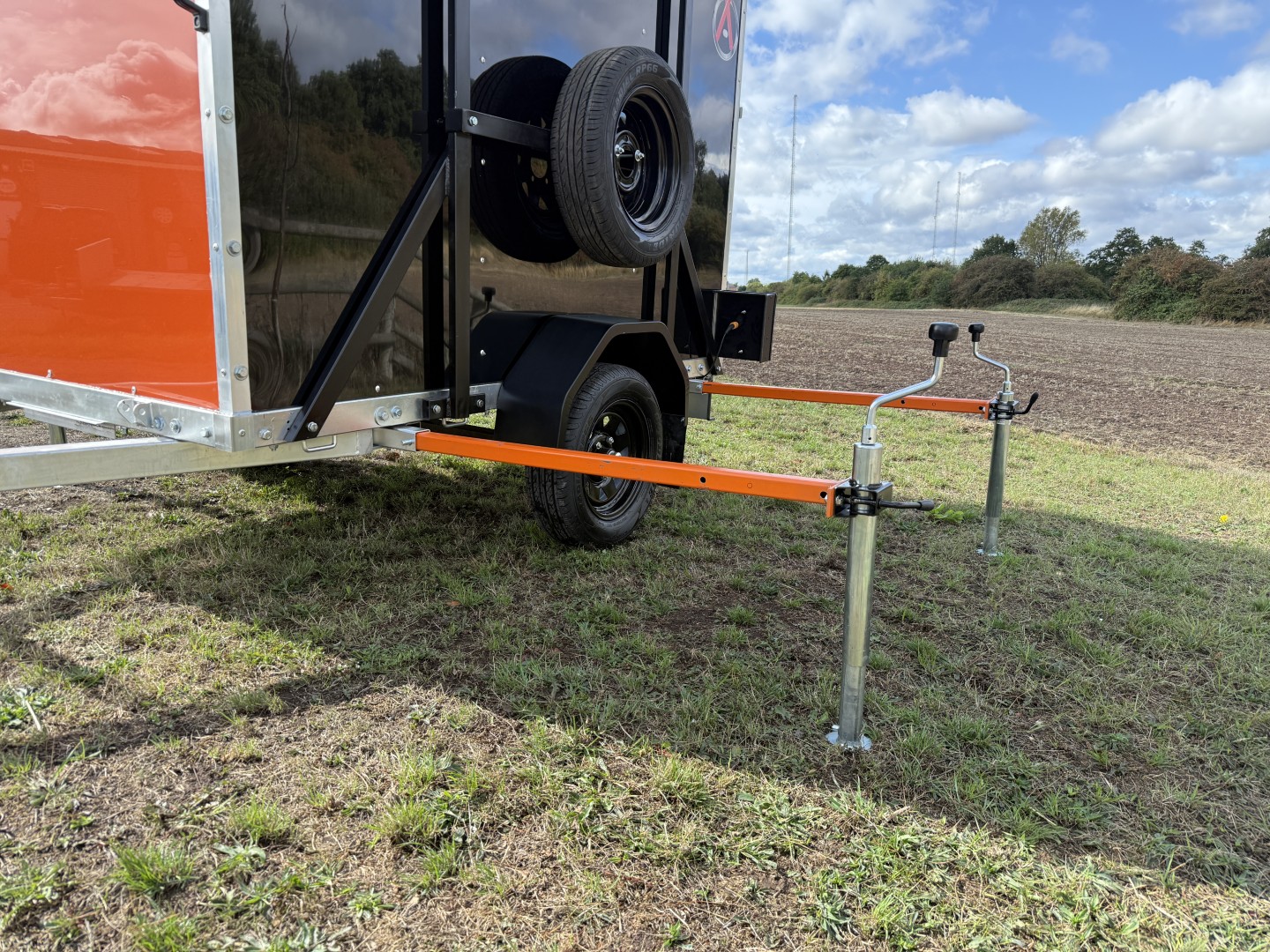

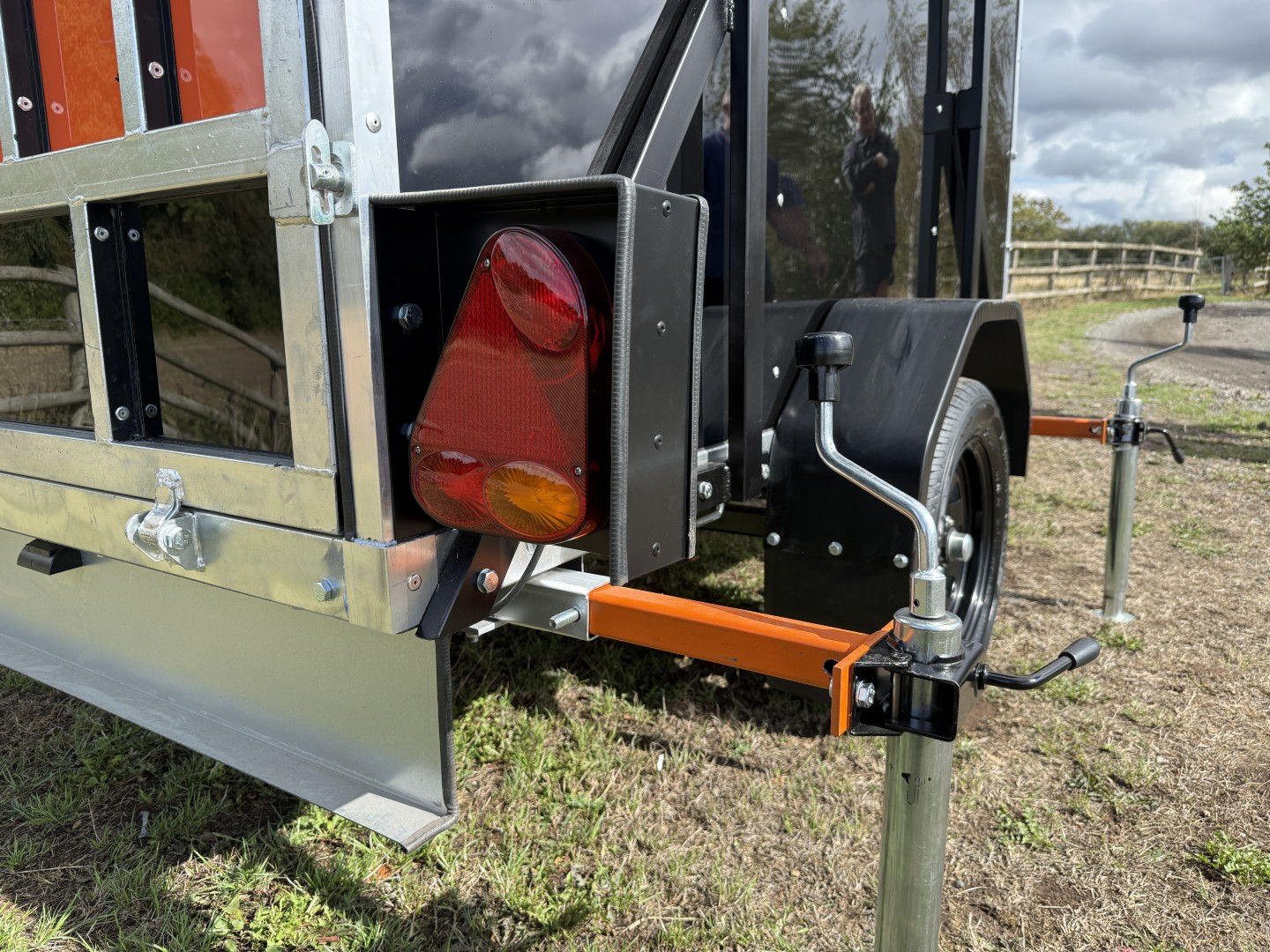

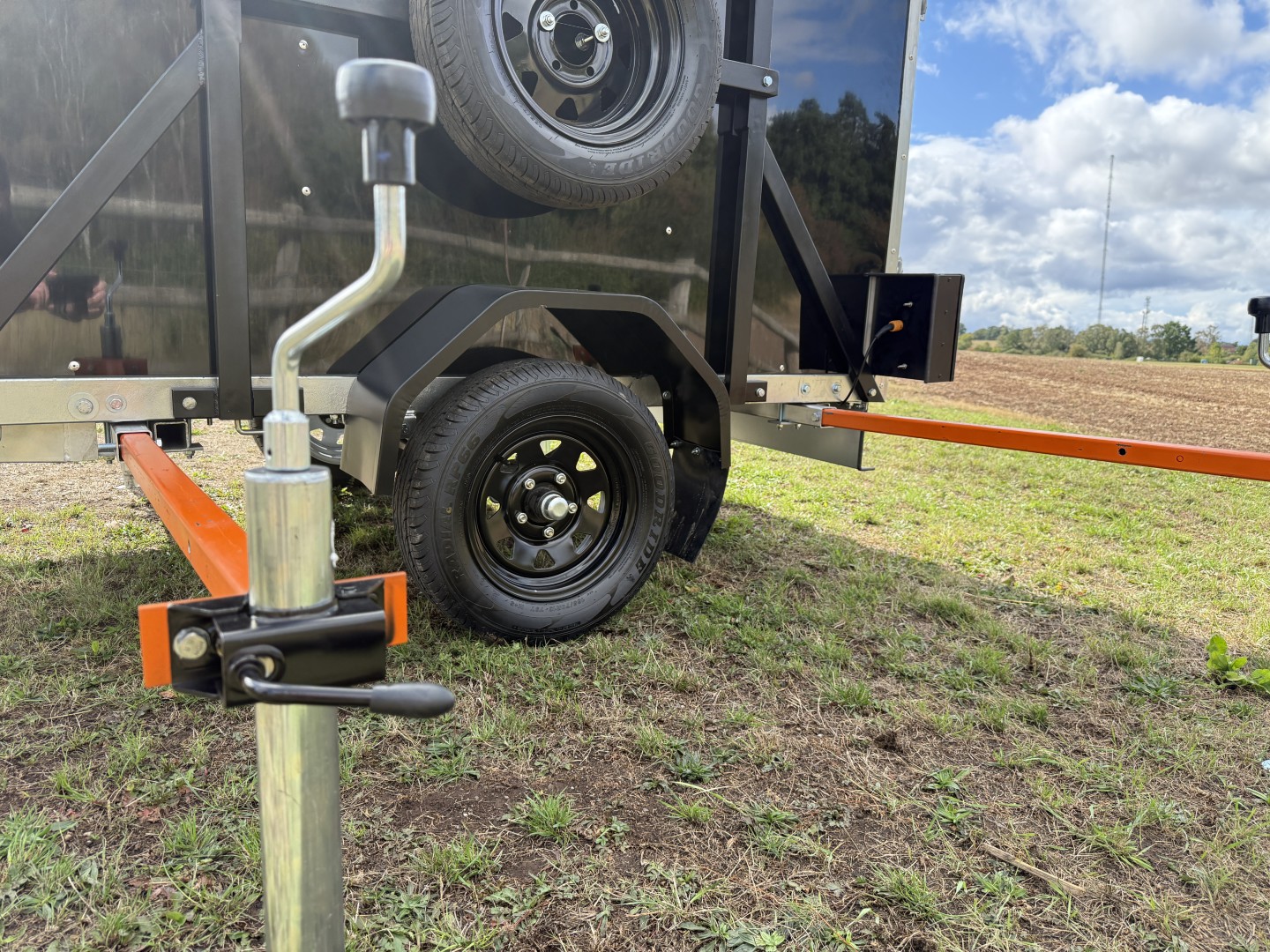

- 4 height-adjustable prop stands included as standard
- Jockey wheel

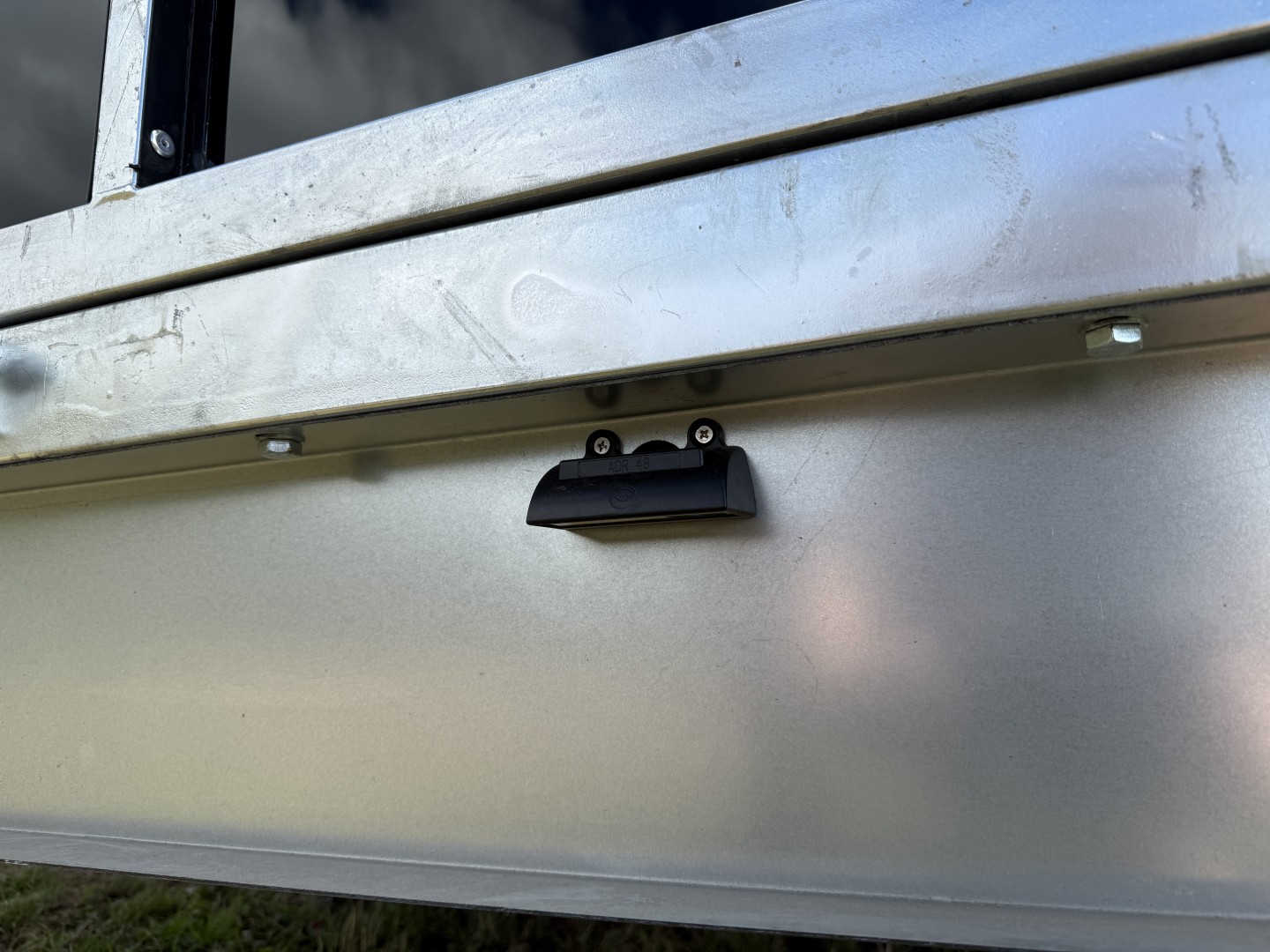

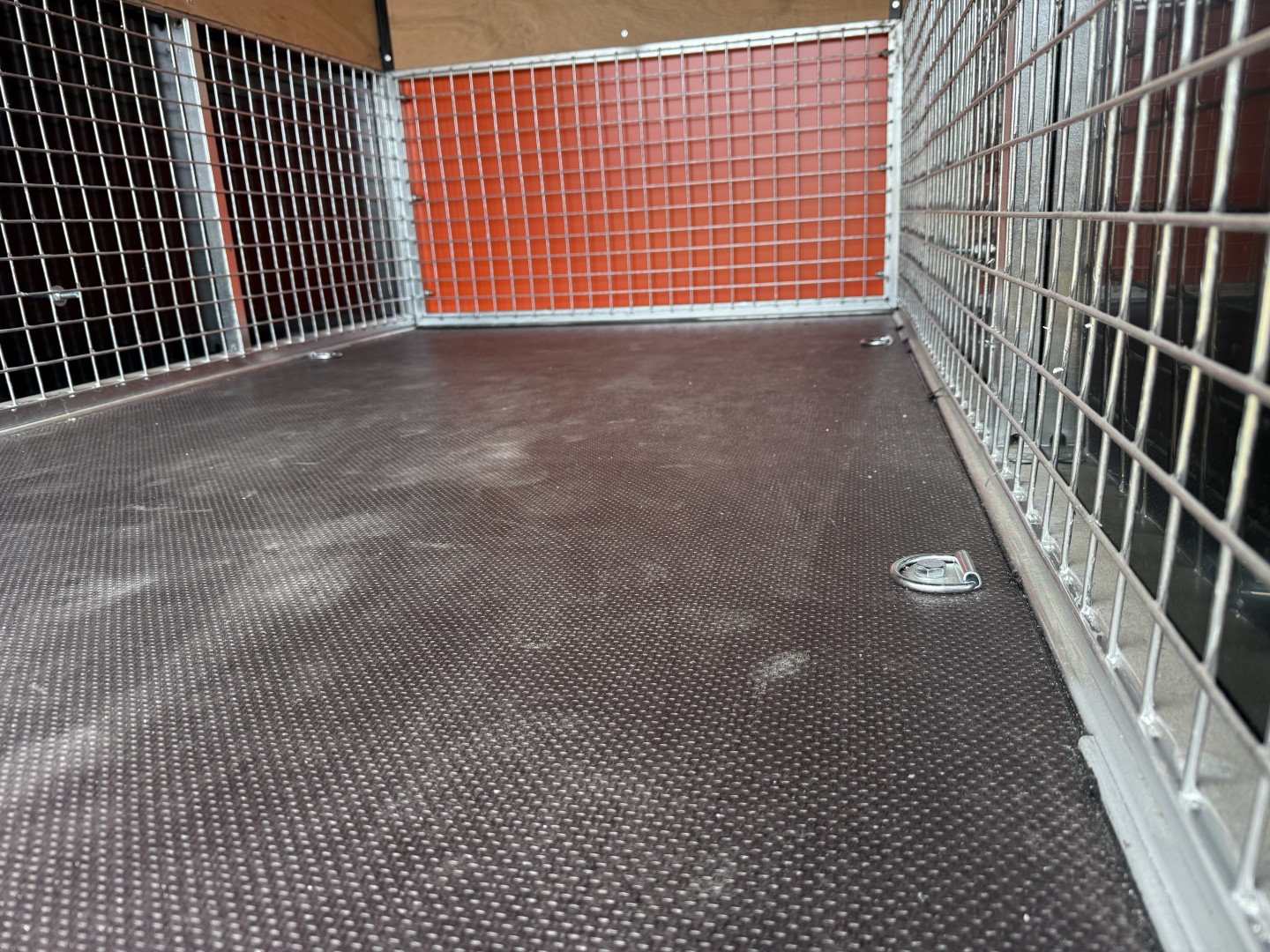

- 4 internal tie-downs
Optional Extras:

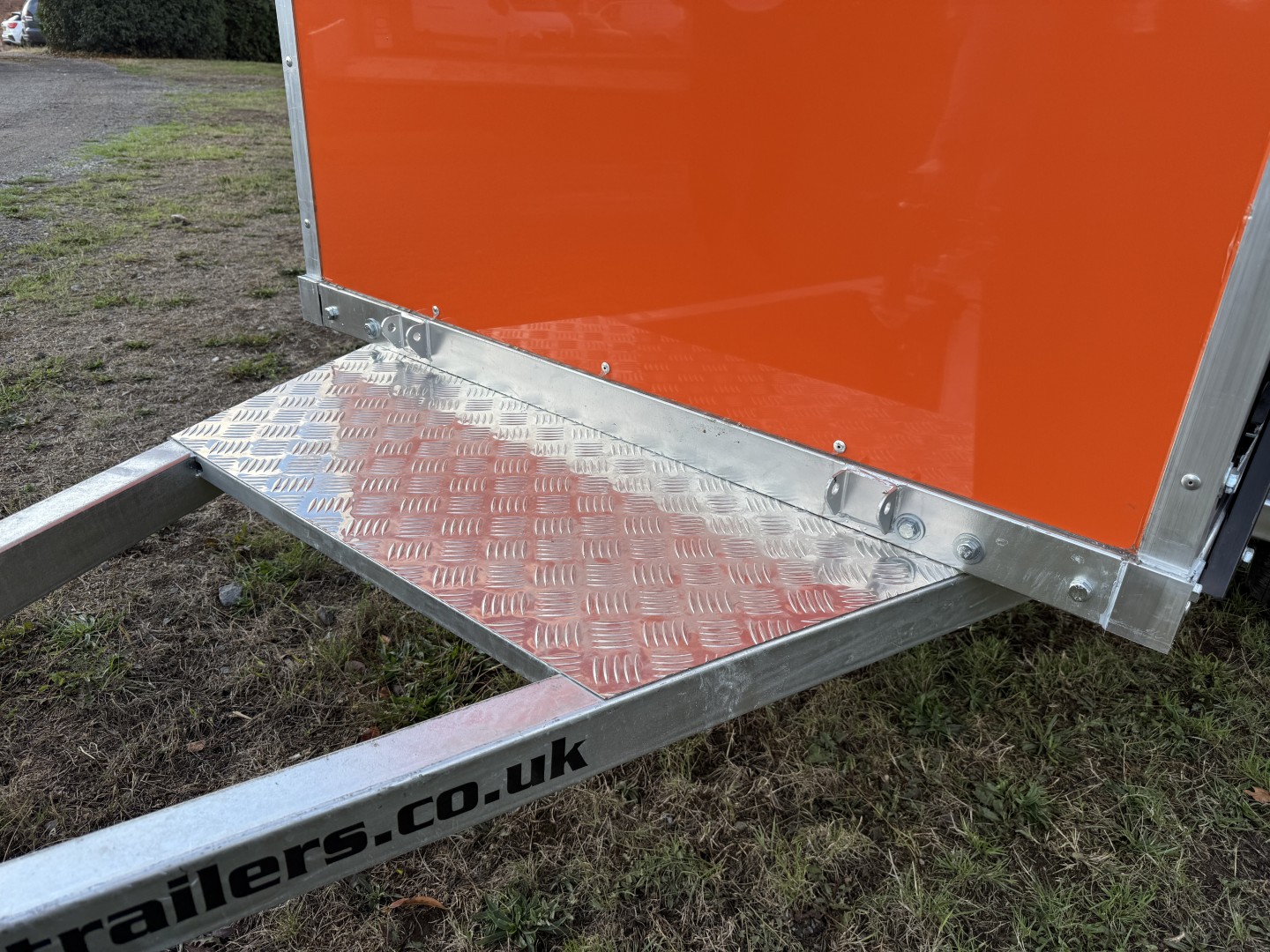

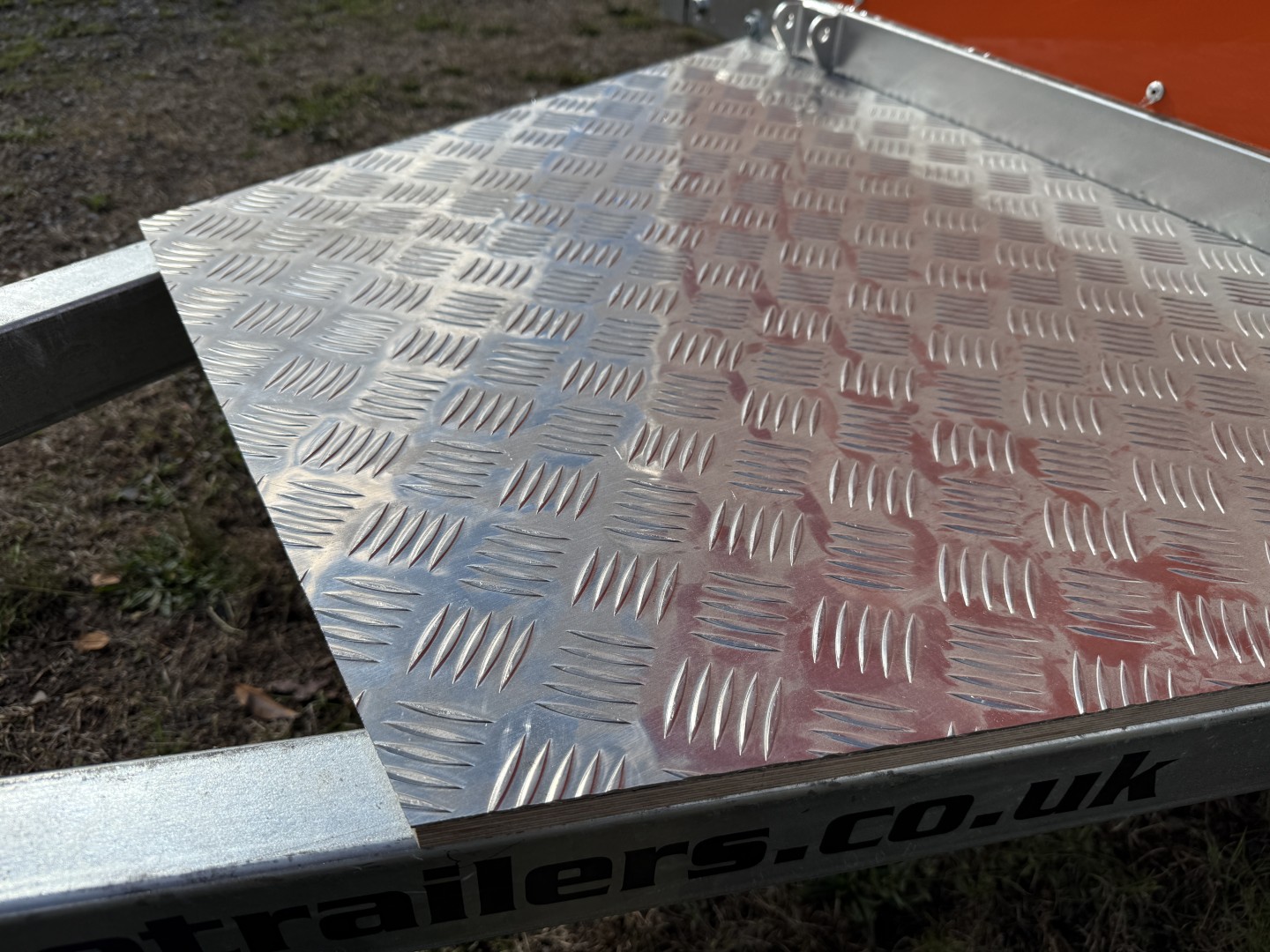

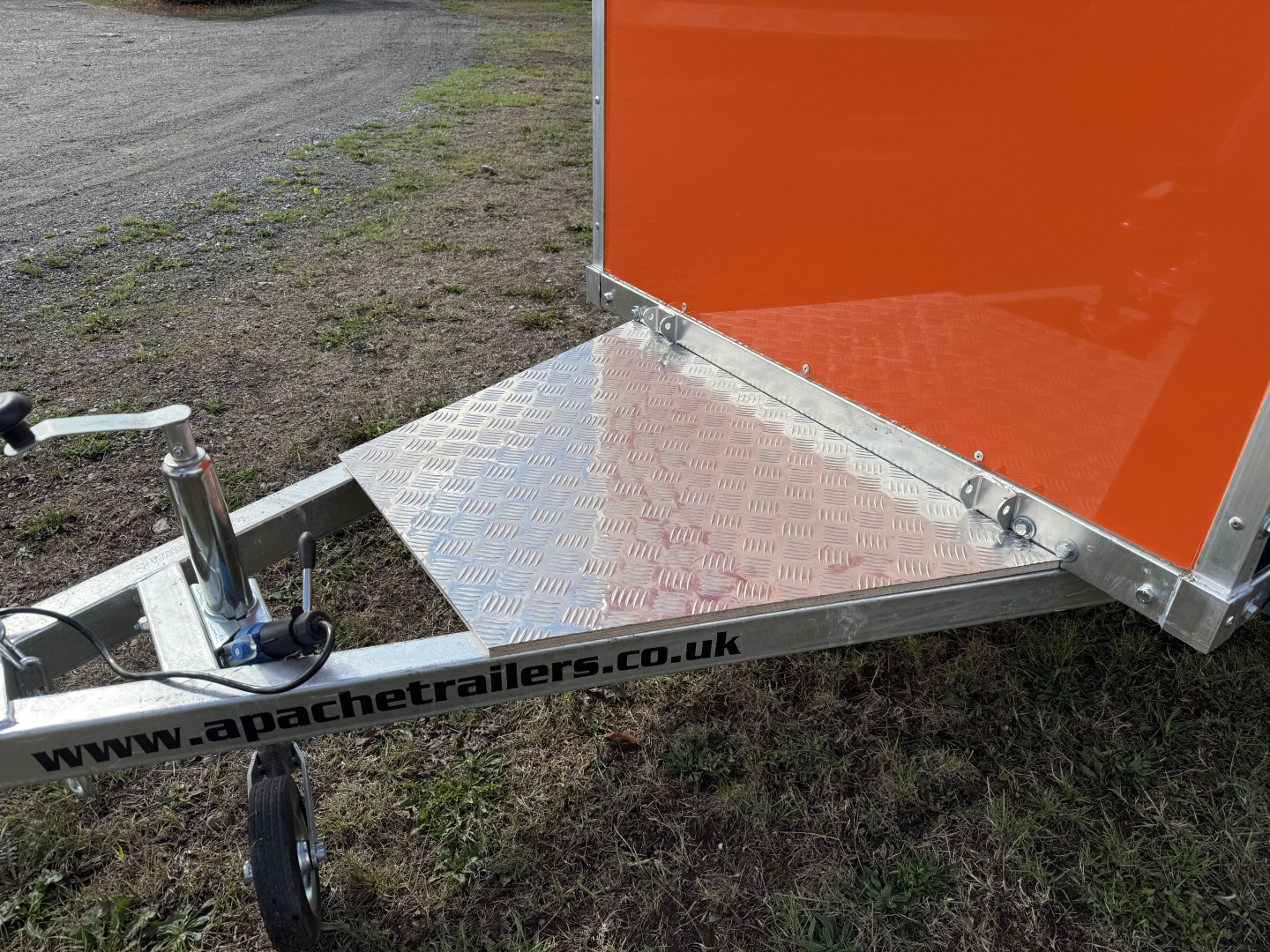

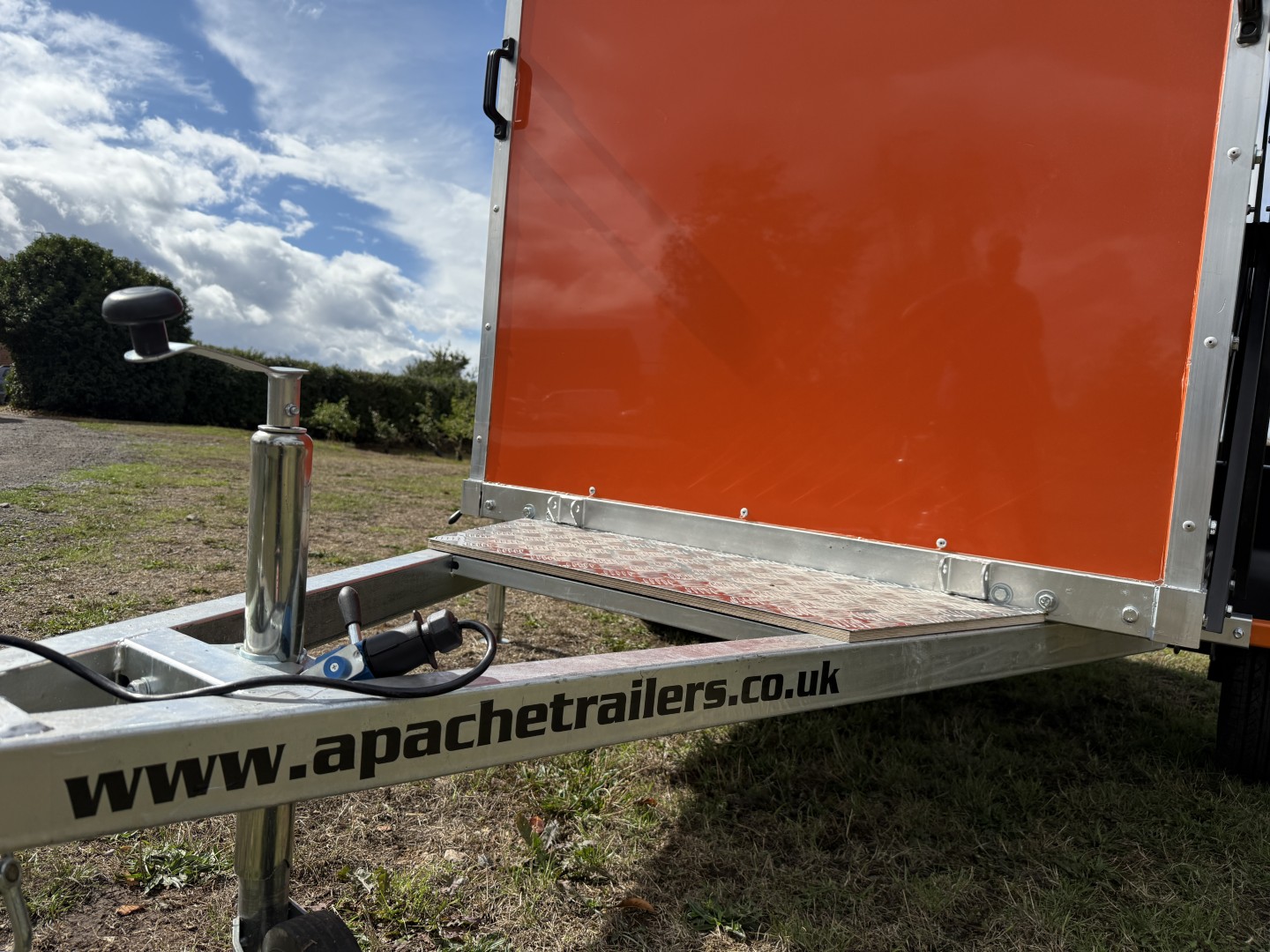

- Small chequer plate A-frame step platform

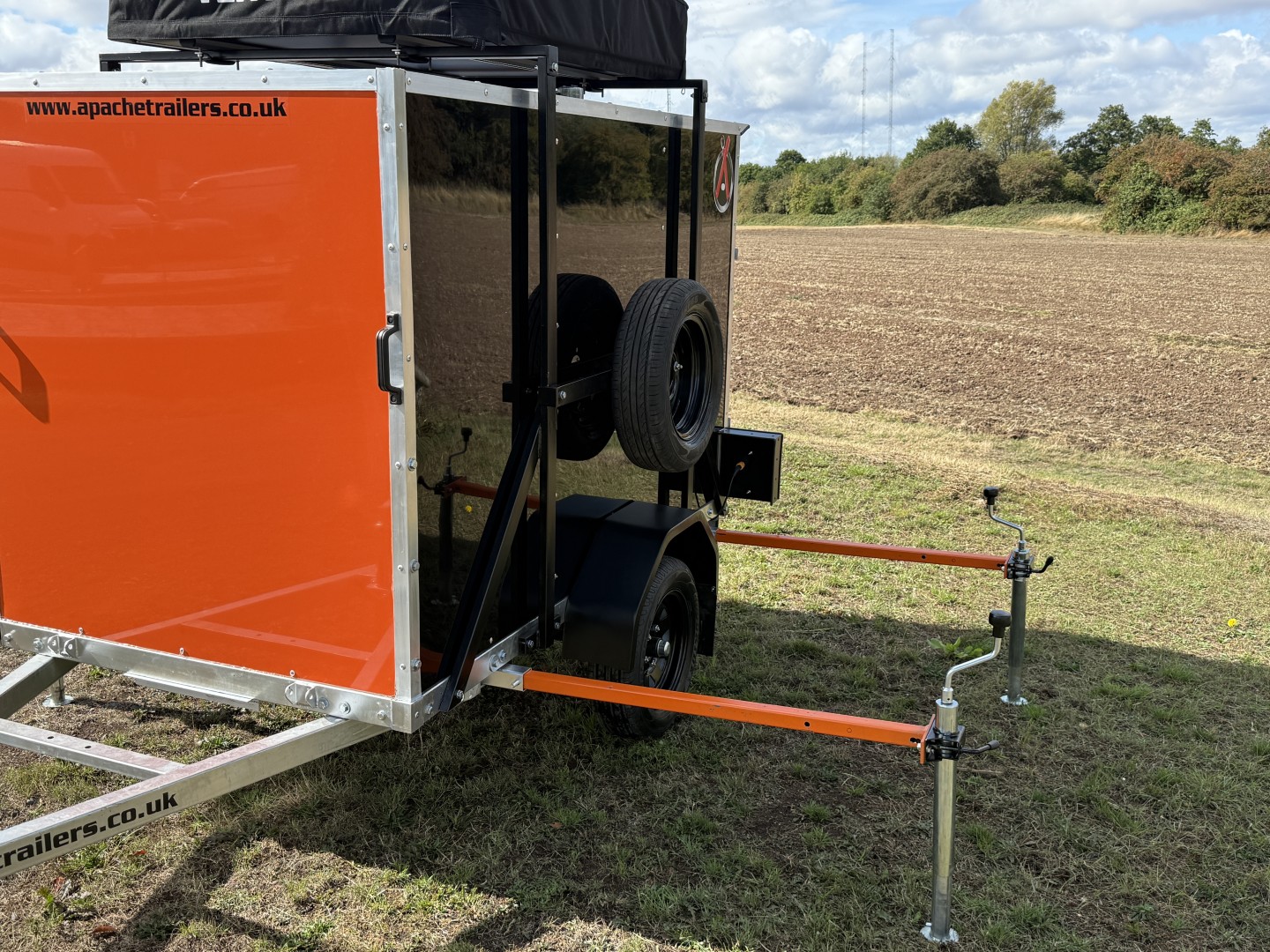

- Extendable prop stand arms
- Spare wheel

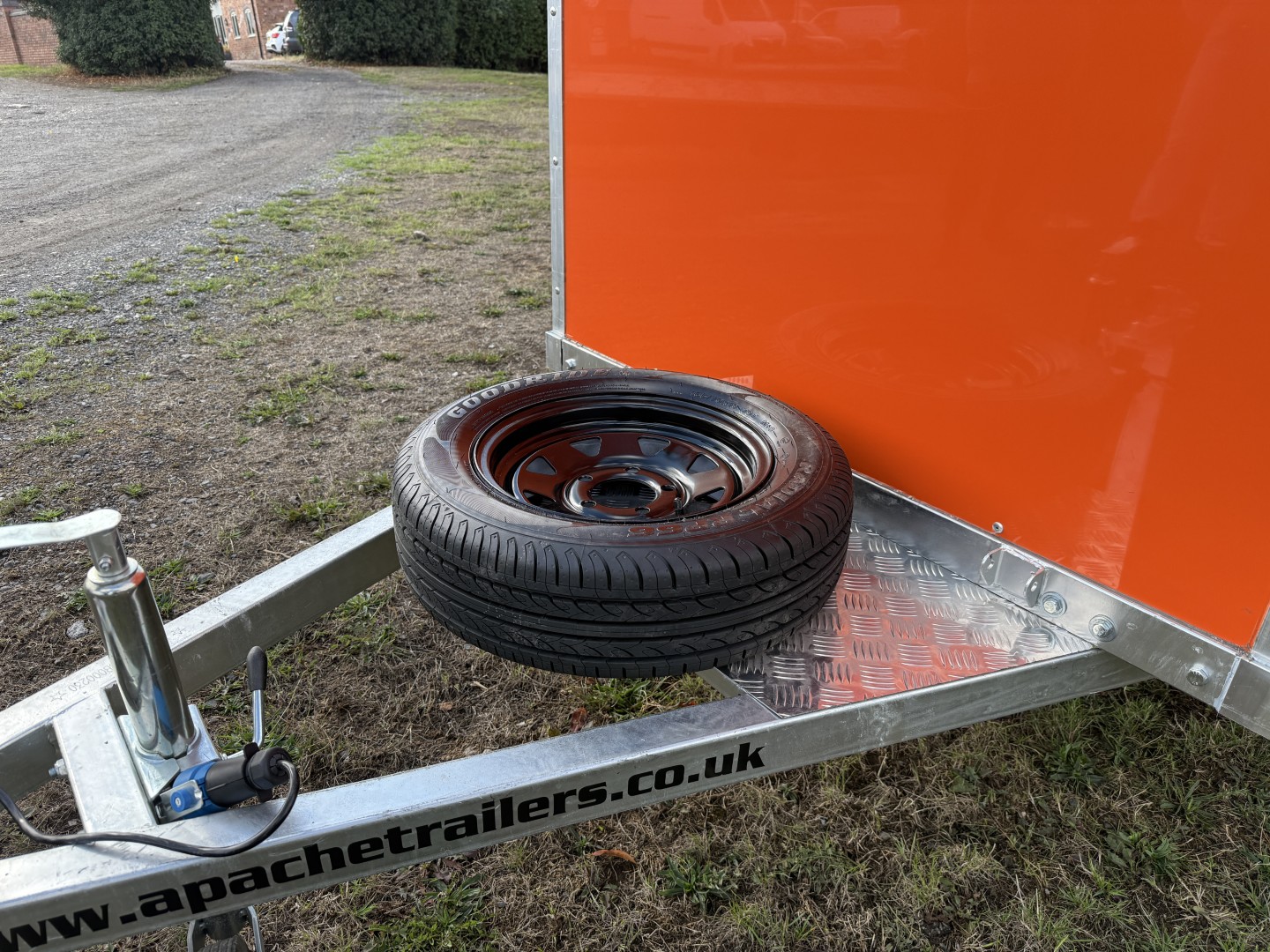

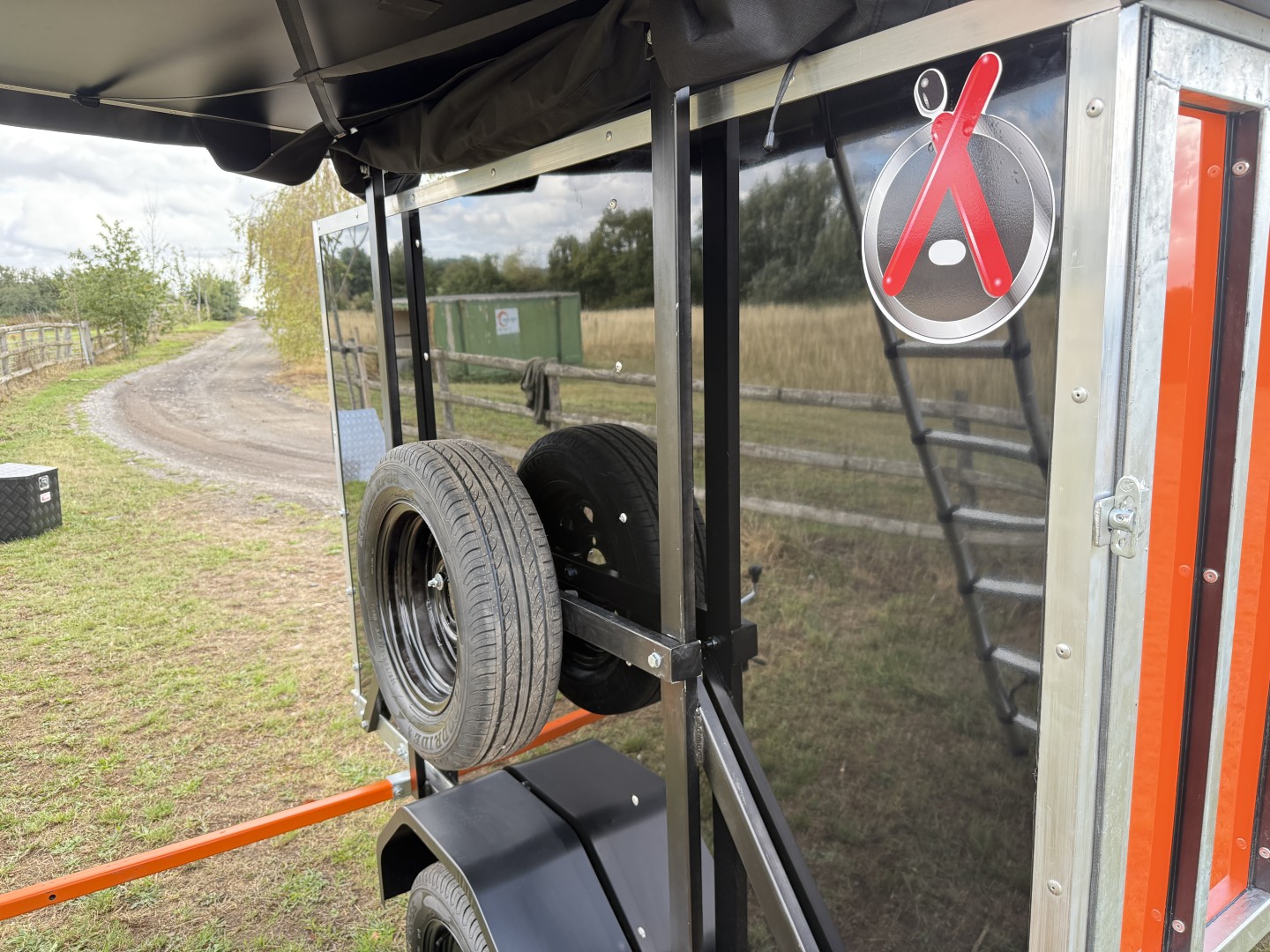

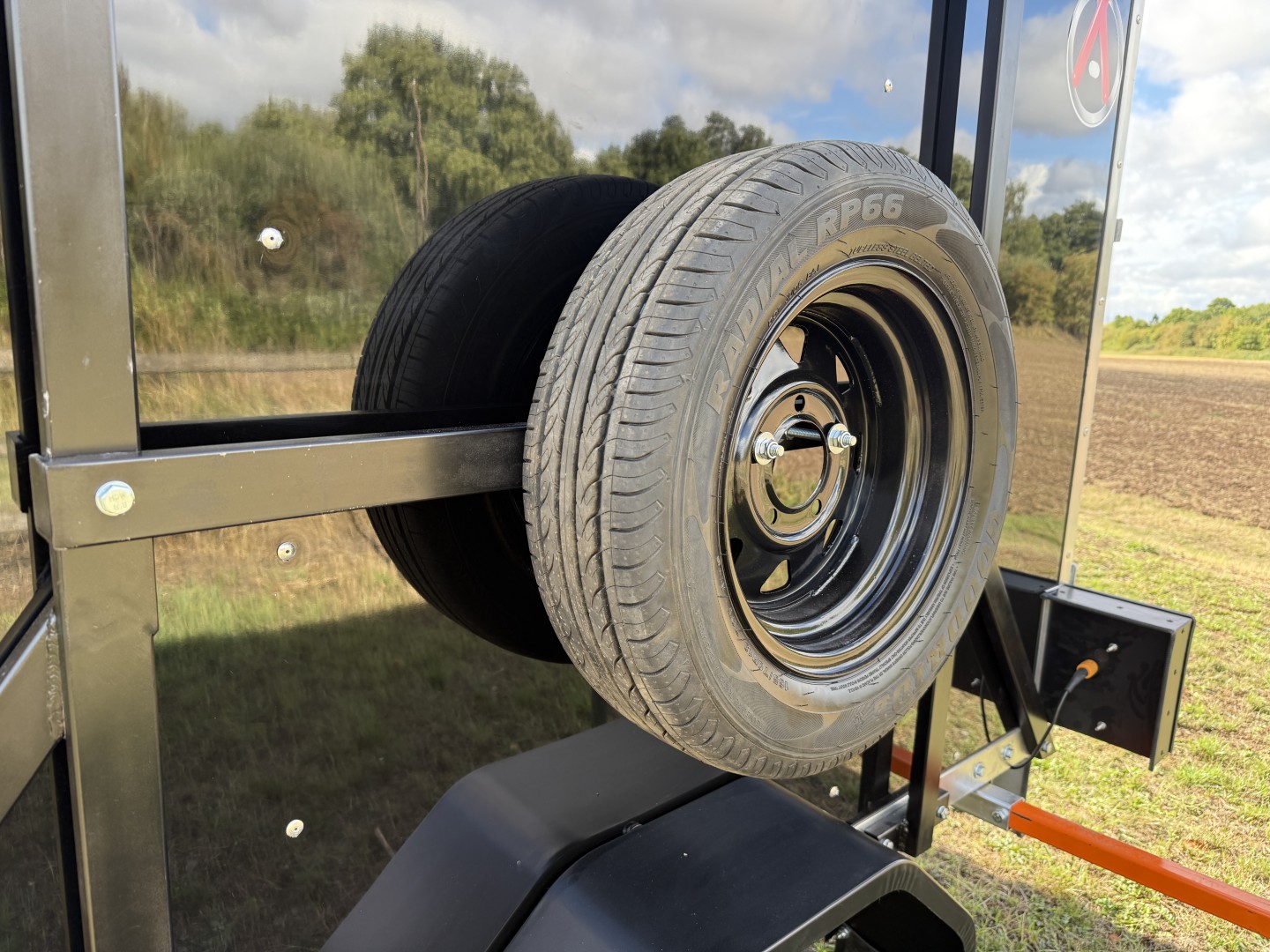

- Side rail mounted spare wheel bracket
- Large A-frame step platform
- Hitch lock
- Wheel clamp
- Locking wheel nuts
- Number plate
- Internal ply lining

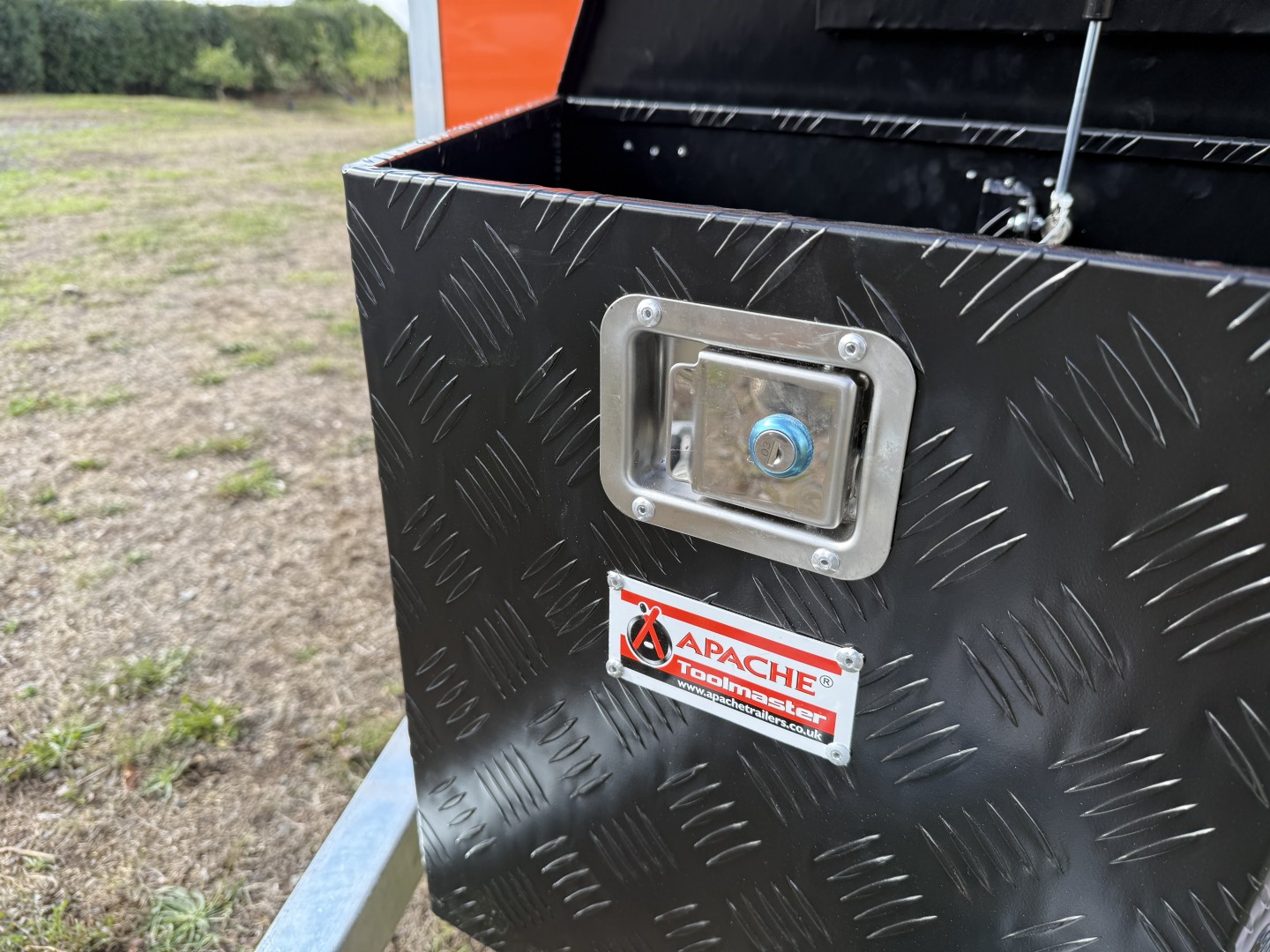

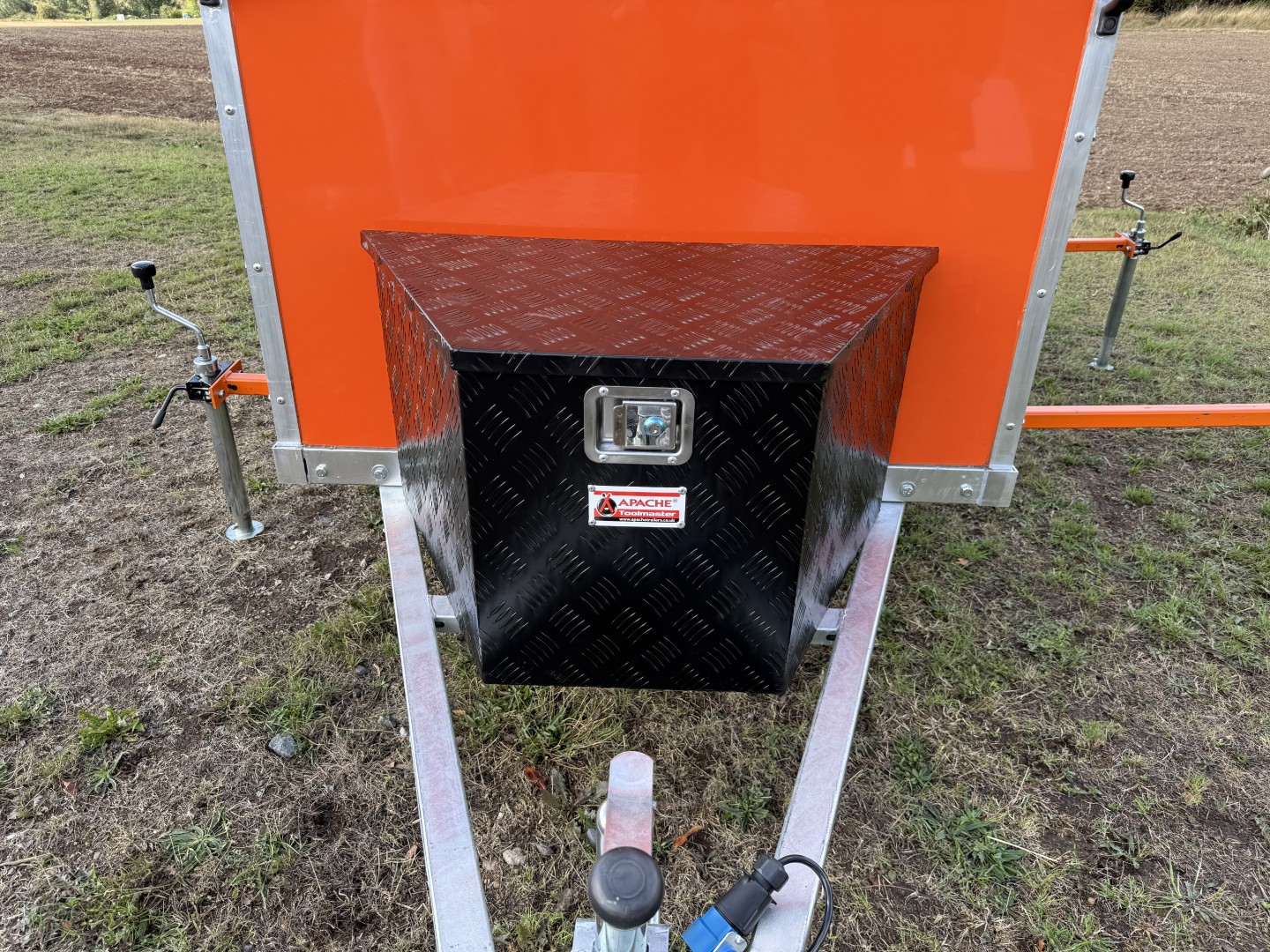

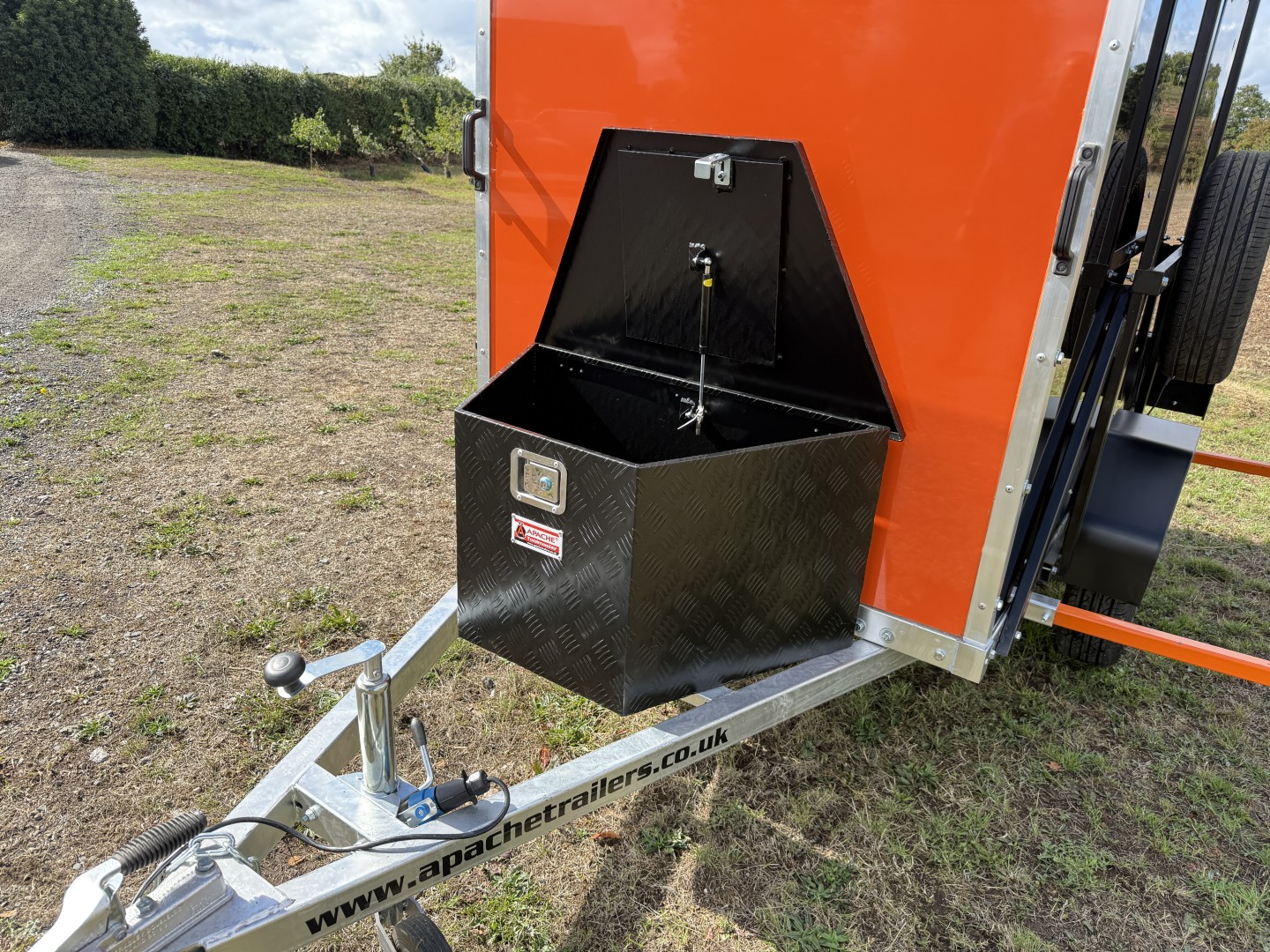

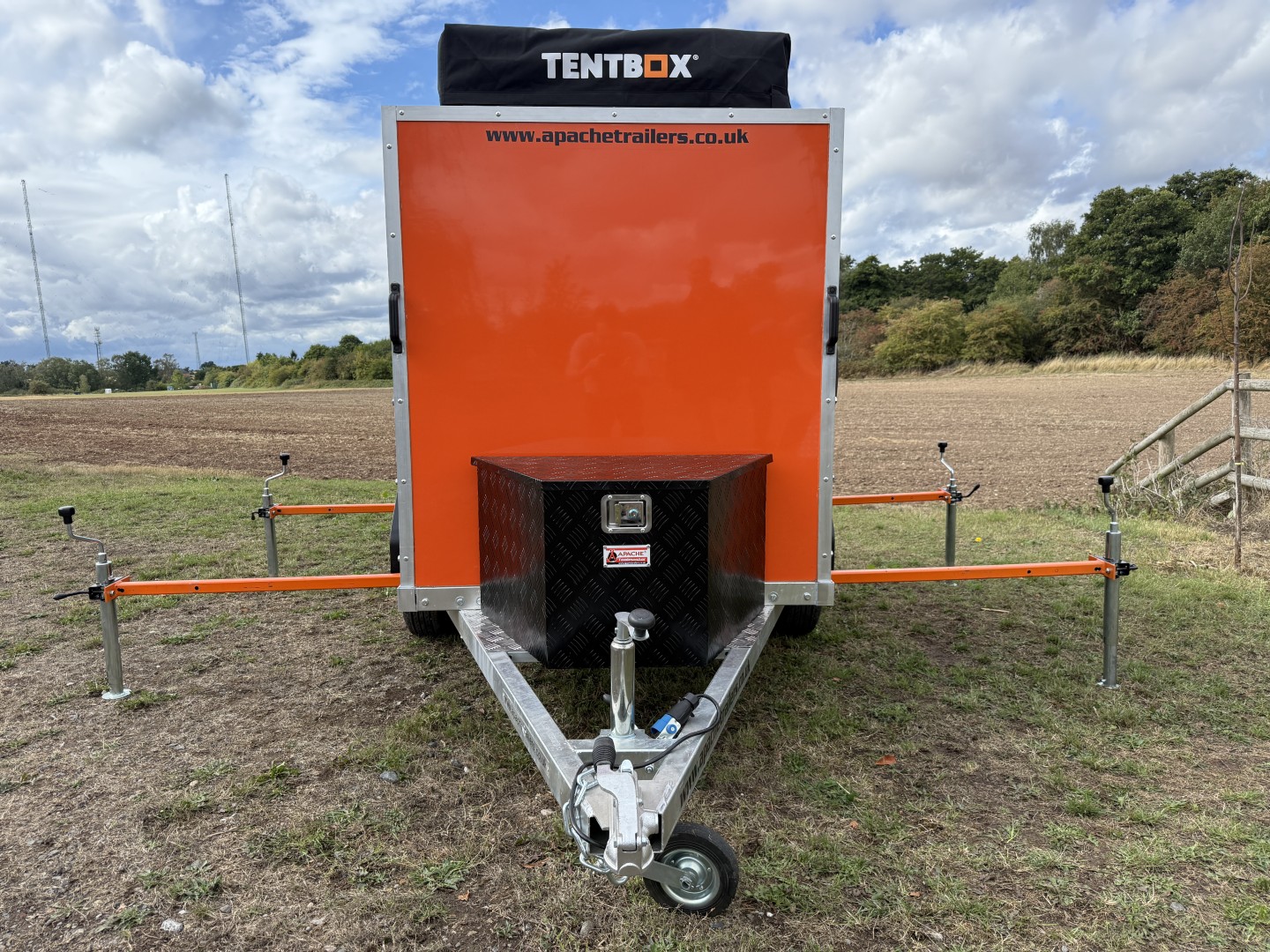

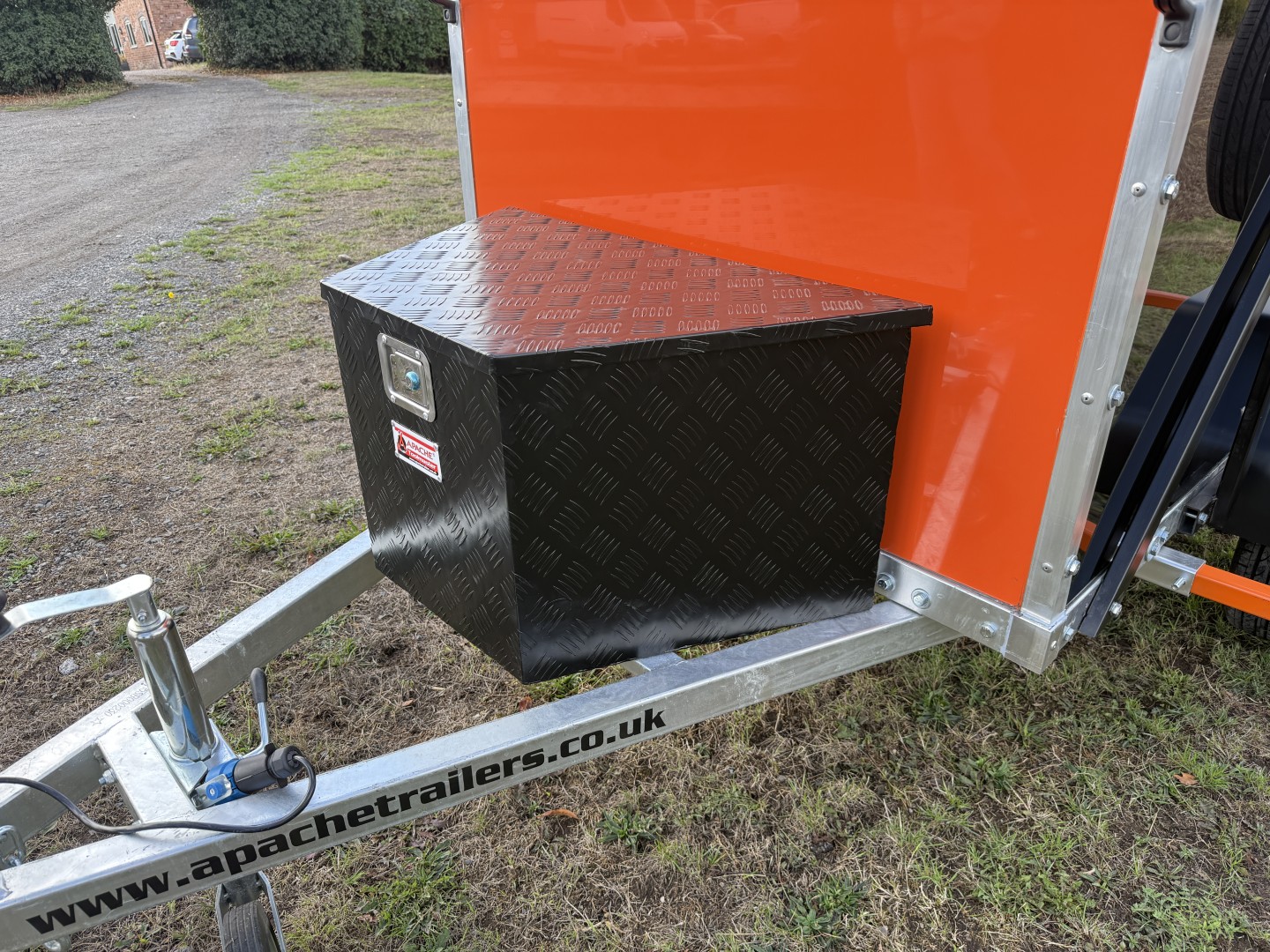

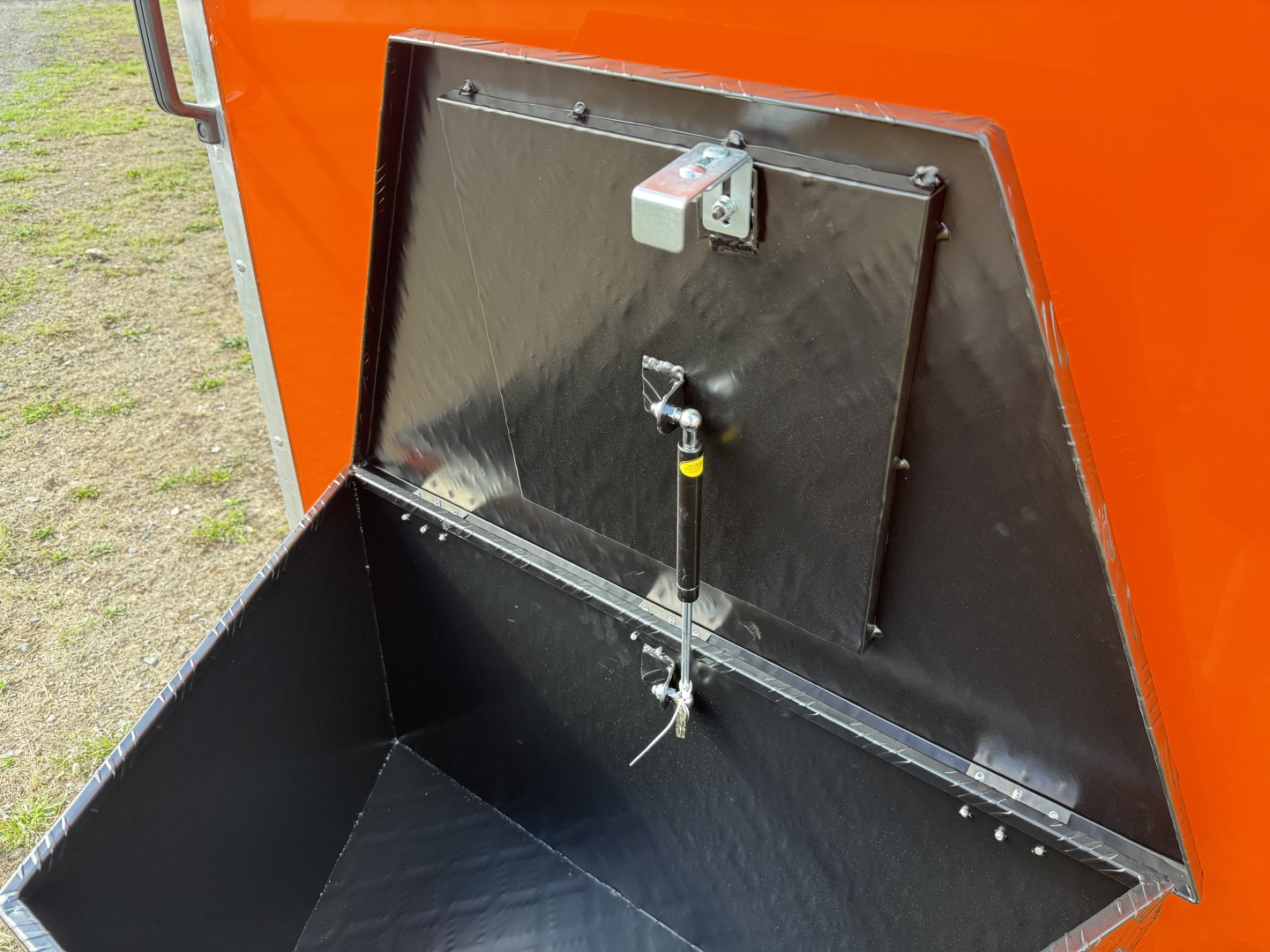

- Fitted alloy or black powder-coated toolbox
- 13-pin adapter available
